1c4s
CHONDROITIN-4-SULFATE. THE STRUCTURE OF A SULFATED GLYCOSAMINOGLYCAN

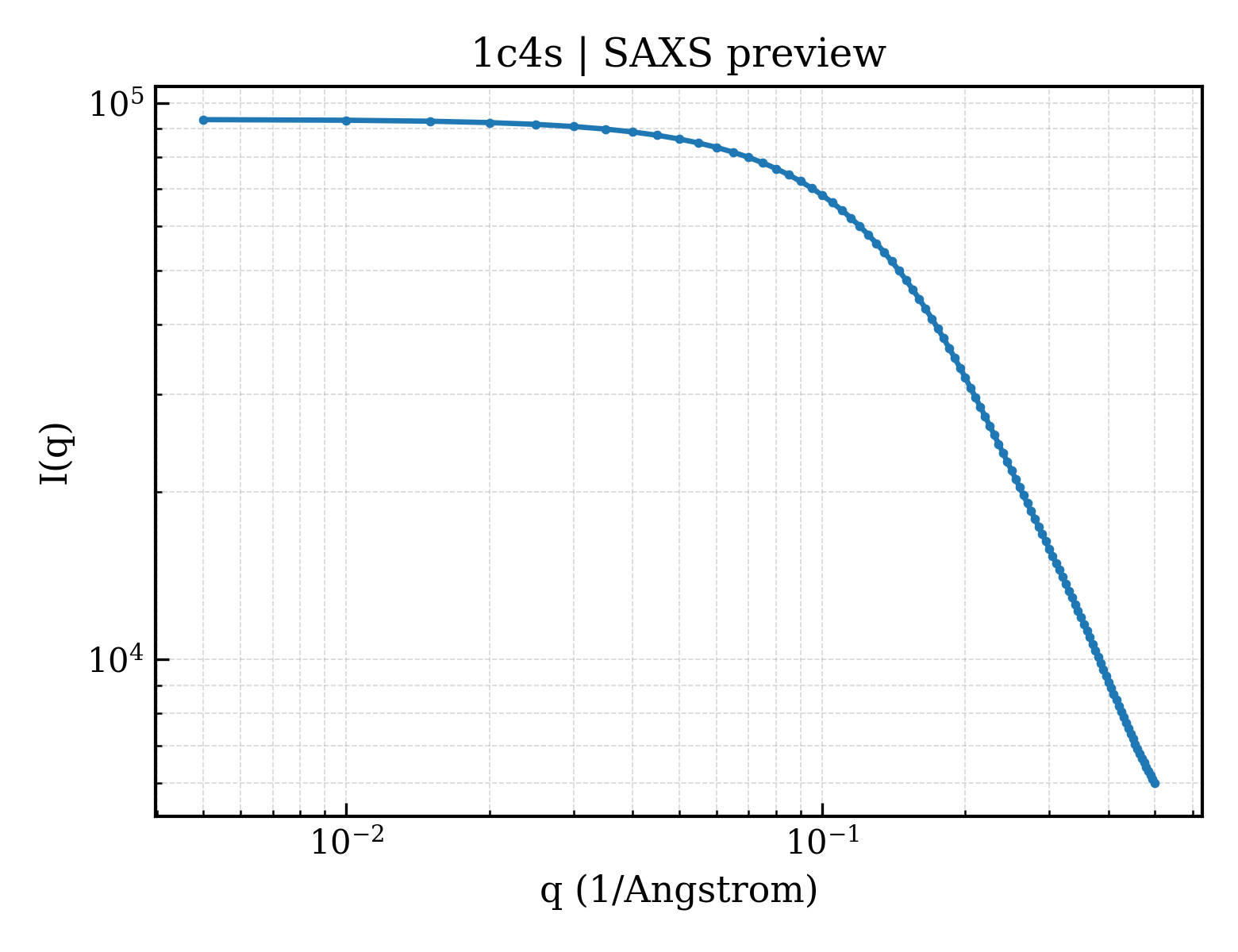

SAXS Profile

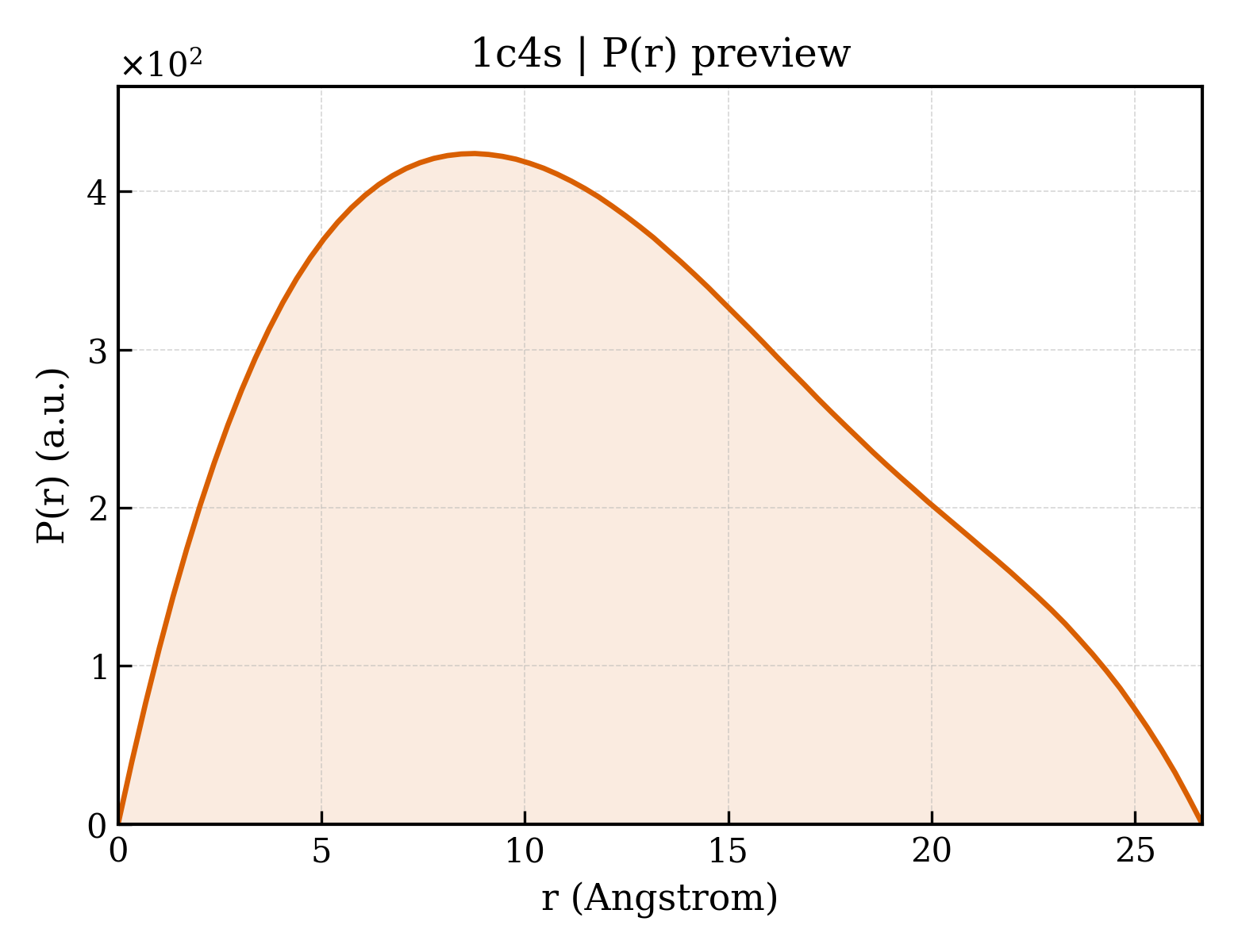

P(r) Distribution
1. Structure Basics
| entry_id | 1c4s |
| deposition_date | 1978-05-23 |
| title | CHONDROITIN-4-SULFATE. THE STRUCTURE OF A SULFATED GLYCOSAMINOGLYCAN |
| keywords | TEXTURE OF CONNECTIVE TISSUE; TEXTURE OF CONNECTIVE TISSUE |
| method | FIBER DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.69 Å |
| rg_electron | 9.21 Å |
| i0 | 93401.50 |
| molecular_weight | 1524.0 kDa |
| excluded_volume | 1802 ų |
| envelope_volume | 2502 ų |
| shell_volume | 2958 ų |
| envelope_diameter | 34.5 Å |
| shell_rg | 12.48 Å |
| envelope_rg | 9.89 Å |
| shape_rg | 9.07 Å |
| total_rg | 10.79 Å |
| total_atoms | 144 |
| n_residues | — |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 26.6 Å |
| rg_real | 9.23 Å |
| rg_real_error | 0.04 Å |
| i0_real | 8.9780e+04 |
| i0_real_error | 5.6520e+02 |
| rg_reciprocal | 9.88 Å |
| i0_reciprocal | 93400.0000 |
| total_estimate | 0.6525 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 8.8 Å |
| skewness | 0.308 |
| kurtosis | -0.756 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 7.1290 |
| highest_alpha | 2378.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.992; Stabil: 0.970; Sysdev: 0.000; Positv: 1.000; Valcen: 0.595; Smooth: 0.000 |
