1c58
CRYSTAL STRUCTURE OF CYCLOAMYLOSE 26

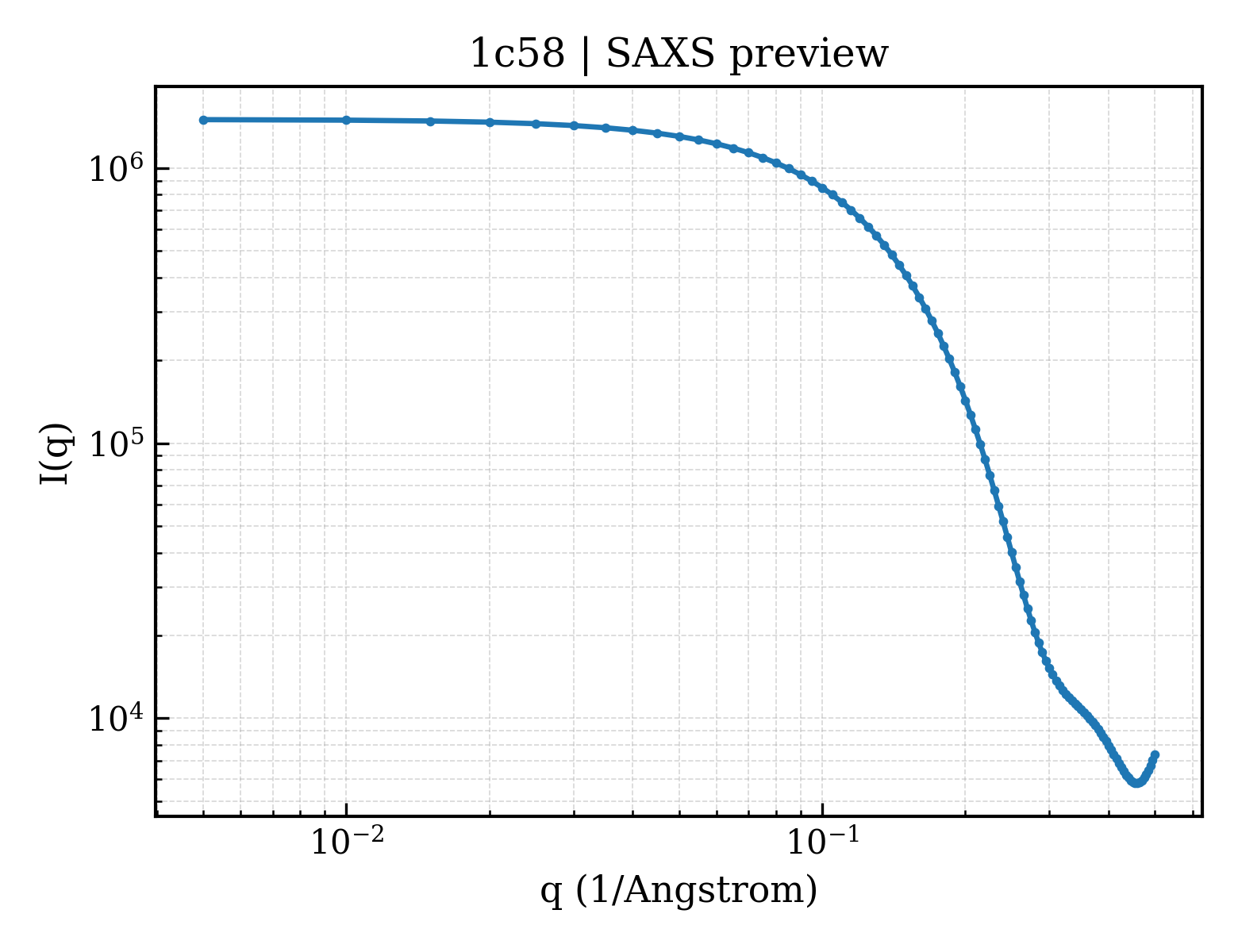

SAXS Profile

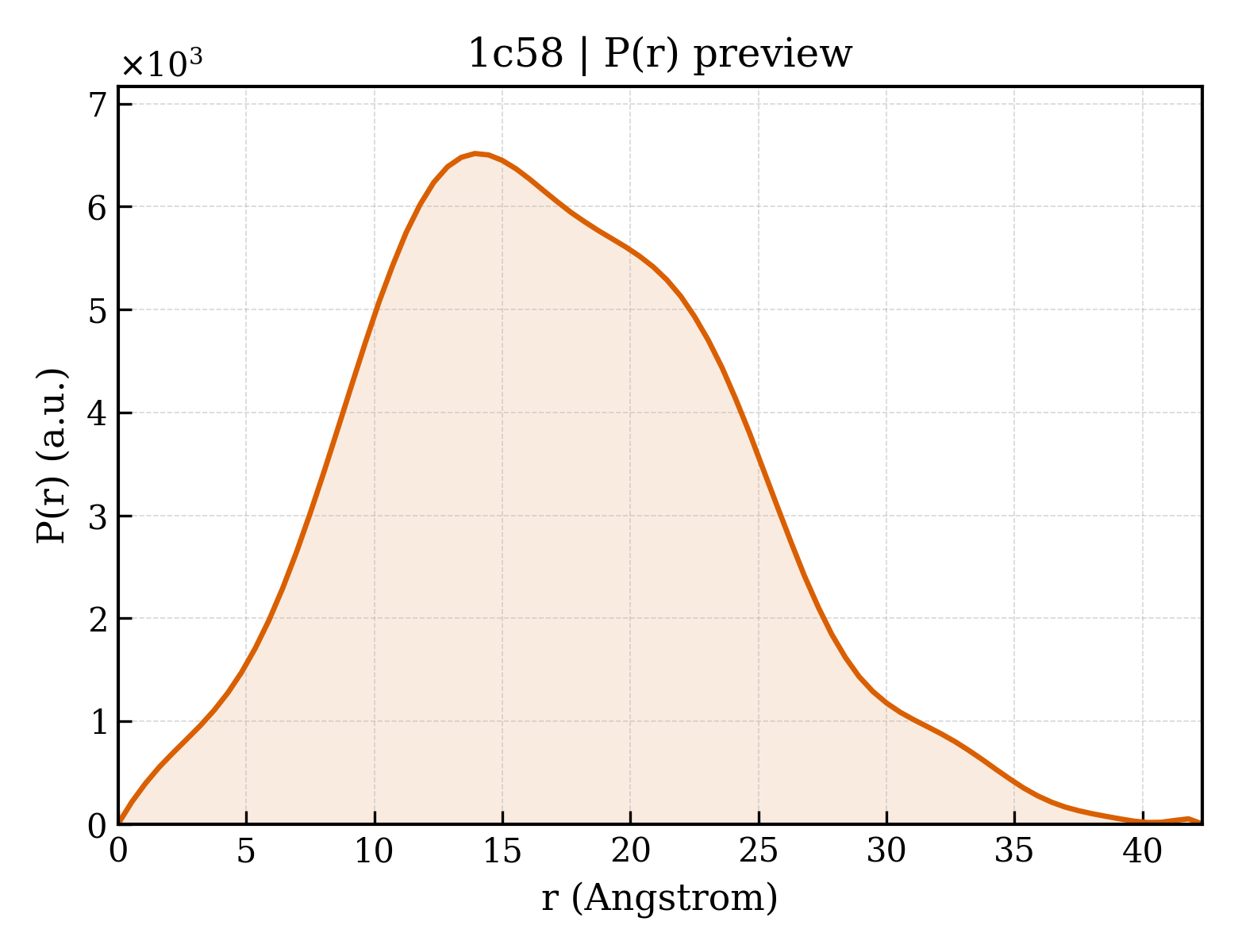

P(r) Distribution
1. Structure Basics
| entry_id | 1c58 |
| deposition_date | 1999-11-04 |
| title | CRYSTAL STRUCTURE OF CYCLOAMYLOSE 26 |
| keywords | CYCLOAMYLOSE, CARBOHYDRATE; CARBOHYDRATE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.04 Å |
| rg_electron | 12.09 Å |
| i0 | 1500700.00 |
| molecular_weight | 8195.0 kDa |
| excluded_volume | 10197 ų |
| envelope_volume | 10929 ų |
| shell_volume | 8289 ų |
| envelope_diameter | 39.8 Å |
| shell_rg | 16.76 Å |
| envelope_rg | 12.07 Å |
| shape_rg | 12.09 Å |
| total_rg | 13.24 Å |
| total_atoms | 1024 |
| n_residues | — |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.3 Å |
| rg_real | 13.00 Å |
| rg_real_error | 0.27 Å |
| i0_real | 1.5010e+06 |
| i0_real_error | 1.7960e+04 |
| rg_reciprocal | 13.00 Å |
| i0_reciprocal | 1501000.0000 |
| total_estimate | 0.8618 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.9 Å |
| skewness | 0.273 |
| kurtosis | -0.235 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1040000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.772; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.891 |
