1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (TOLB PROTEIN)

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–430	Fragment：ENTIRE PROTEIN	YB YTTERBIUM (III) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 2.00 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1C5K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CRZ CRYSTAL STRUCTURE OF THE E. COLI TOLB PROTEIN Deposited 1999-08-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–430（403 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 8000, SODIUM CHLORIDE, TRIS, TCEP, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.95 Å R-free 0.238
2HQS Crystal structure of TolB/Pal complex Deposited 2006-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 23–430（408 aa）	Not recorded	ACT ACETATE ION × 2 SO4 SULFATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；MME PEG 2000, ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.213
2HQS Crystal structure of TolB/Pal complex Deposited 2006-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–430（408 aa）	Not recorded	ACT ACETATE ION × 2 SO4 SULFATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；MME PEG 2000, ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.213
2HQS Crystal structure of TolB/Pal complex Deposited 2006-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–430（408 aa）	Not recorded	ACT ACETATE ION × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；MME PEG 2000, ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.213
2HQS Crystal structure of TolB/Pal complex Deposited 2006-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–430（408 aa）	Not recorded	ACT ACETATE ION × 2 SO4 SULFATE ION × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；MME PEG 2000, ammonium sulfate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.213
2IVZ Structure of TolB in complex with a peptide of the colicin E9 T- domain Deposited 2006-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–430（430 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL MONOMETHYL ETHER 5000, 80 MM CACL2, 100 MM HEPES, PH 7.5	Resolution 2.00 Å R-free 0.222
2IVZ Structure of TolB in complex with a peptide of the colicin E9 T- domain Deposited 2006-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–430（430 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL MONOMETHYL ETHER 5000, 80 MM CACL2, 100 MM HEPES, PH 7.5	Resolution 2.00 Å R-free 0.222
2IVZ Structure of TolB in complex with a peptide of the colicin E9 T- domain Deposited 2006-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–430（430 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL MONOMETHYL ETHER 5000, 80 MM CACL2, 100 MM HEPES, PH 7.5	Resolution 2.00 Å R-free 0.222
2IVZ Structure of TolB in complex with a peptide of the colicin E9 T- domain Deposited 2006-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–430（430 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；24% POLYETHYLENE GLYCOL MONOMETHYL ETHER 5000, 80 MM CACL2, 100 MM HEPES, PH 7.5	Resolution 2.00 Å R-free 0.222
2W8B Crystal structure of processed TolB in complex with Pal Deposited 2009-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 22–430（409 aa）	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.1M SODIUM ACETATE PH 4.6, 17% PEG4000, 0.2M AMMONIUM SULPHATE, 20MG/ML	Resolution 1.86 Å R-free 0.247
2W8B Crystal structure of processed TolB in complex with Pal Deposited 2009-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 22–430（409 aa）	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.1M SODIUM ACETATE PH 4.6, 17% PEG4000, 0.2M AMMONIUM SULPHATE, 20MG/ML	Resolution 1.86 Å R-free 0.247
2W8B Crystal structure of processed TolB in complex with Pal Deposited 2009-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 22–430（409 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.1M SODIUM ACETATE PH 4.6, 17% PEG4000, 0.2M AMMONIUM SULPHATE, 20MG/ML	Resolution 1.86 Å R-free 0.247
2W8B Crystal structure of processed TolB in complex with Pal Deposited 2009-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 22–430（409 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 3 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.1M SODIUM ACETATE PH 4.6, 17% PEG4000, 0.2M AMMONIUM SULPHATE, 20MG/ML	Resolution 1.86 Å R-free 0.247
3IAX The crystal structure of the TolB box of Colicin A in complex with TolB reveals important differences in the recruitment of the common TolB translocation portal used by group A colicins Deposited 2009-07-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–430（430 aa）	Not recorded	NA SODIUM ION × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 10000, 0.1 M Hepes, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.257

5 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOLB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–431； UniProt 1–430

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c5k
Deposition date deposition_date	1999-12-05
Structure title title	THE STRUCTURE OF TOLB, AN ESSENTIAL COMPONENT OF THE TOL-DEPENDENT TRANSLOCATION SYSTEM AND ITS INTERACTIONS WITH THE TRANSLOCATION DOMAIN OF COLICIN E9
Keywords keywords	BETA PROPELLOR, PROTEIN-PROTEIN INTERACTIONS, COLICIN IMPORT, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.47 Å
Radius of gyration Rg (electron density) rg_electron	22.54 Å
Forward intensity I(0) i0	32453300.00
Molecular weight molecular_weight	42487.0 kDa
Excluded volume excluded_volume	52606 Å³
Envelope volume envelope_volume	62536 Å³
Hydration-shell volume shell_volume	23615 Å³
Envelope diameter envelope_diameter	79.2 Å
Shell Rg shell_rg	29.04 Å
Envelope Rg envelope_rg	22.79 Å
Shape Rg shape_rg	22.55 Å
Total Rg total_rg	23.30 Å
Total atoms total_atoms	2991
Residues n_residues	397
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

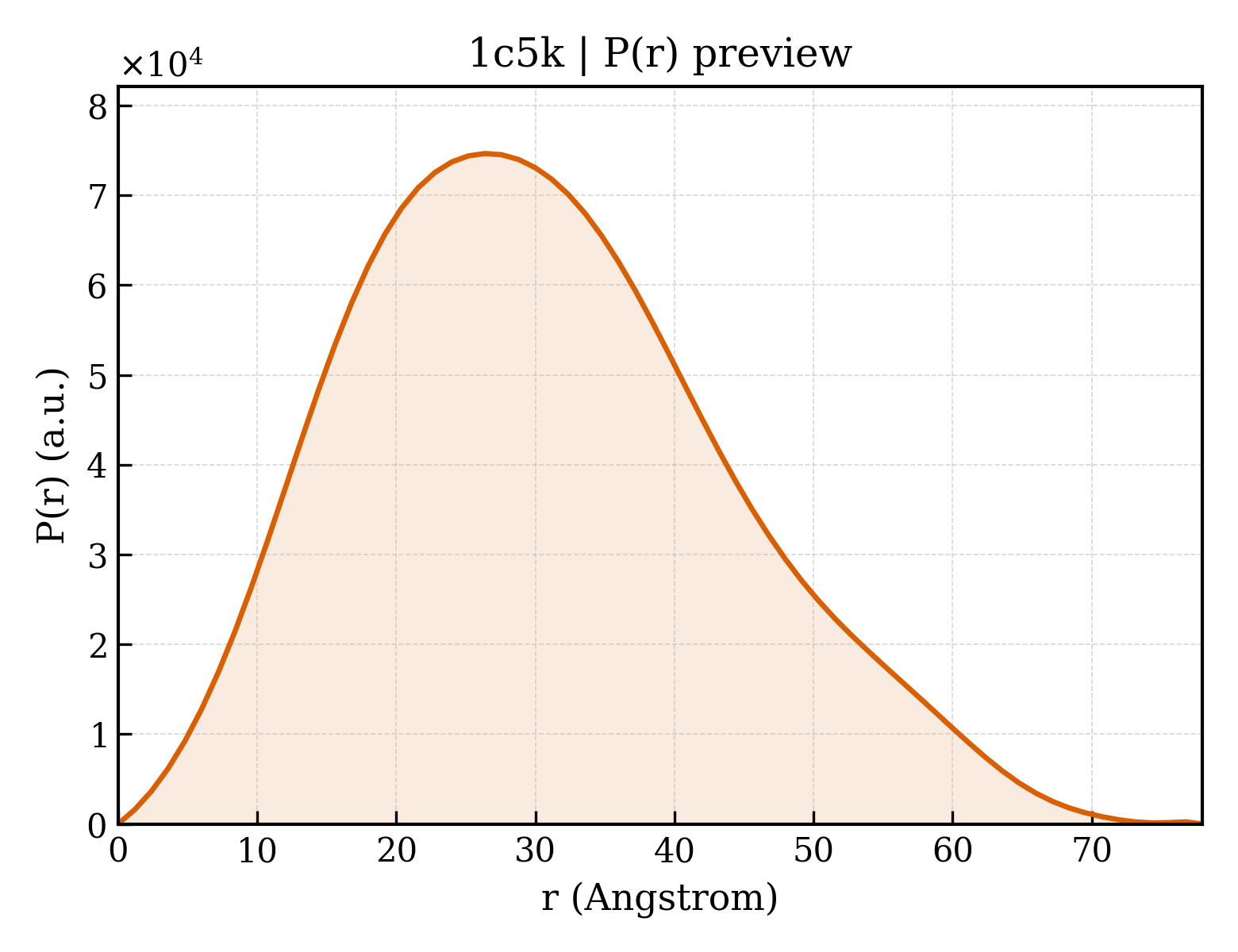

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.0 Å
Rg (real space) rg_real	23.48 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	3.2450e+07
I(0) uncertainty (real space) i0_real_error	4.7950e+05
Rg (reciprocal space) rg_reciprocal	23.48 Å
I(0) (reciprocal space) i0_reciprocal	32450000.0000
Solution quality estimate total_estimate	0.8854
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.4 Å
Skewness Skewness skewness	0.382
Kurtosis Kurtosis kurtosis	-0.314
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9539000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.985

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (TOLB PROTEIN)
Molecular weight formula_weight	47196.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3221

MMKQALRVAFGFLILWASVLHAEVRIVIDSGVDSGRPIGVVPFQWAGPGAAPEDIGGIVAADLRNSGKFNPLDRARLPQQPGSAQEVQPAAWSALGIDAVVVGQVTPNPDGSYNVAYQLVDTGGAPGTVLAQNSYKVNKQWLRYAGHTASDEVFEKLTGIKGAFRTRIAYVVQTNGGQFPYELRVSDYDGYNQFVVHRSPQPLMSPAWSPDGSKLAYVTFESGRSALVIQTLANGAVRQVASFPRHNGAPAFSPDGSKLAFALSKTGSLNLYVMDLASGQIRQVTDGRSNNTEPTWFPDSQNLAFTSDQAGRPQVYKVNINGGAPQRITWEGSQNQDADVSSDGKFMVMVSSNGGQQHIAKQDLATGGVQVLSSTFLDETPSLAPNGTMVIYSSSQGMGSVLNLVSTDGRFKARLPATDGQVKFPAWSPYLLEHHHHHH

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	YTTERBIUM (III) ION
Molecular weight formula_weight	173.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	230

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1c5ka1
Class class	b — All beta proteins
Fold Fold fold	b.68 — 6-bladed beta-propeller
Superfamily Superfamily superfamily	b.68.4 — TolB, C-terminal domain
Family Family family	b.68.4.1 — TolB, C-terminal domain

Domain ID domain_id	d1c5ka2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.2 — TolB, N-terminal domain
Family Family family	c.51.2.1 — TolB, N-terminal domain

CATH v4.4 (2 domains)

Domain ID domain_id	1c5kA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10070 — TolB, N-terminal domain

Domain ID domain_id	1c5kA02
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	30 — TolB, C-terminal domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	63.580 Å
Unit-cell length b length_b	40.190 Å
Unit-cell length c length_c	77.660 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.22 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2340
R_work r_work	0.2340
R_free r_free	0.2710

fit	/app/data/saxs_computation/c5/1c5k/1c5k.fit
pddf	/app/data/pr_computation/c5/1c5k/1c5k.pr.out
profile	/app/data/saxs_computation/c5/1c5k/1c5k.dat
