1c6w
MAUROCALCIN FROM SCORPIO MAURUS

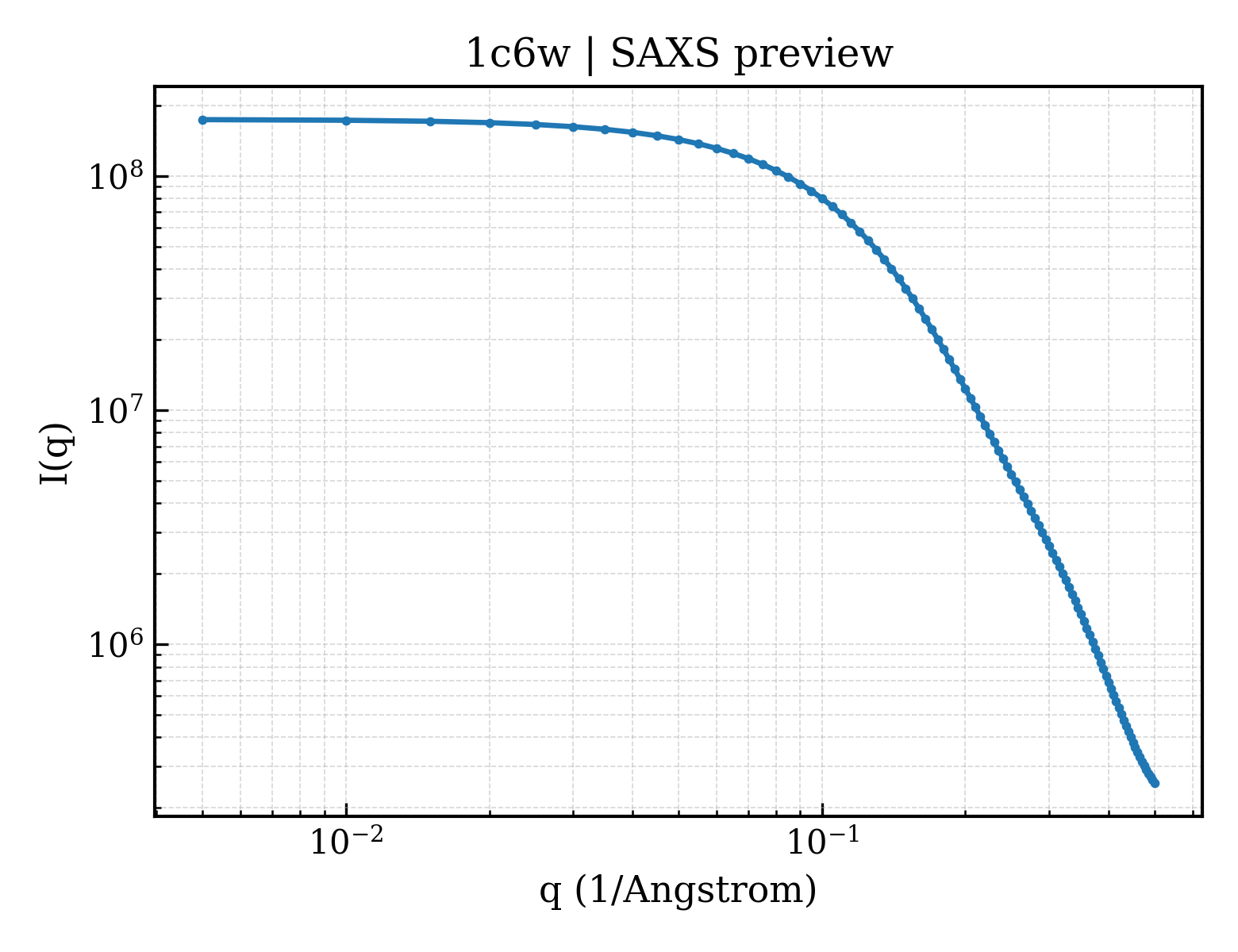

SAXS Profile

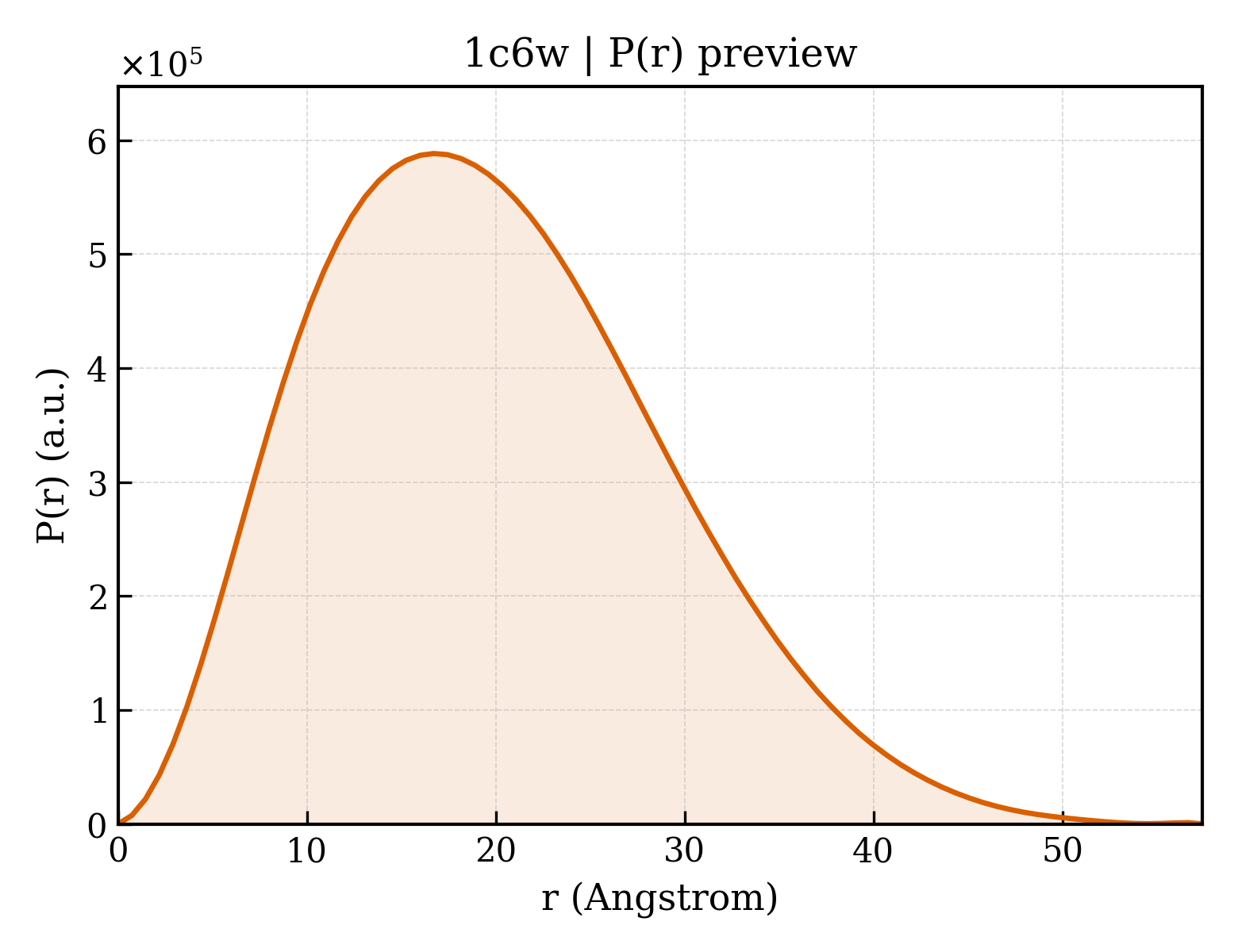

P(r) Distribution
1. Structure Basics
| entry_id | 1c6w |
| deposition_date | 1999-12-23 |
| title | MAUROCALCIN FROM SCORPIO MAURUS |
| keywords | SCORPION TOXIN, RYANODINE RECEPTOR EFFECTOR, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.37 Å |
| rg_electron | 15.26 Å |
| i0 | 174185000.00 |
| molecular_weight | 96792.0 kDa |
| excluded_volume | 117360 ų |
| envelope_volume | 47823 ų |
| shell_volume | 20845 ų |
| envelope_diameter | 61.6 Å |
| shell_rg | 25.67 Å |
| envelope_rg | 19.11 Å |
| shape_rg | 15.35 Å |
| total_rg | 15.57 Å |
| total_atoms | 13525 |
| n_residues | 825 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.4 Å |
| rg_real | 15.43 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.7420e+08 |
| i0_real_error | 2.1490e+06 |
| rg_reciprocal | 15.42 Å |
| i0_reciprocal | 174200000.0000 |
| total_estimate | 0.8163 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.7 Å |
| skewness | 0.455 |
| kurtosis | -0.163 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4073000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.658; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.640; Smooth: 0.994 |
