1c7c

DEOXY RHB1.1 (RECOMBINANT HEMOGLOBIN)

Method: X-RAY DIFFRACTION D_max: 70.3 Å Quality: EXCELLENT

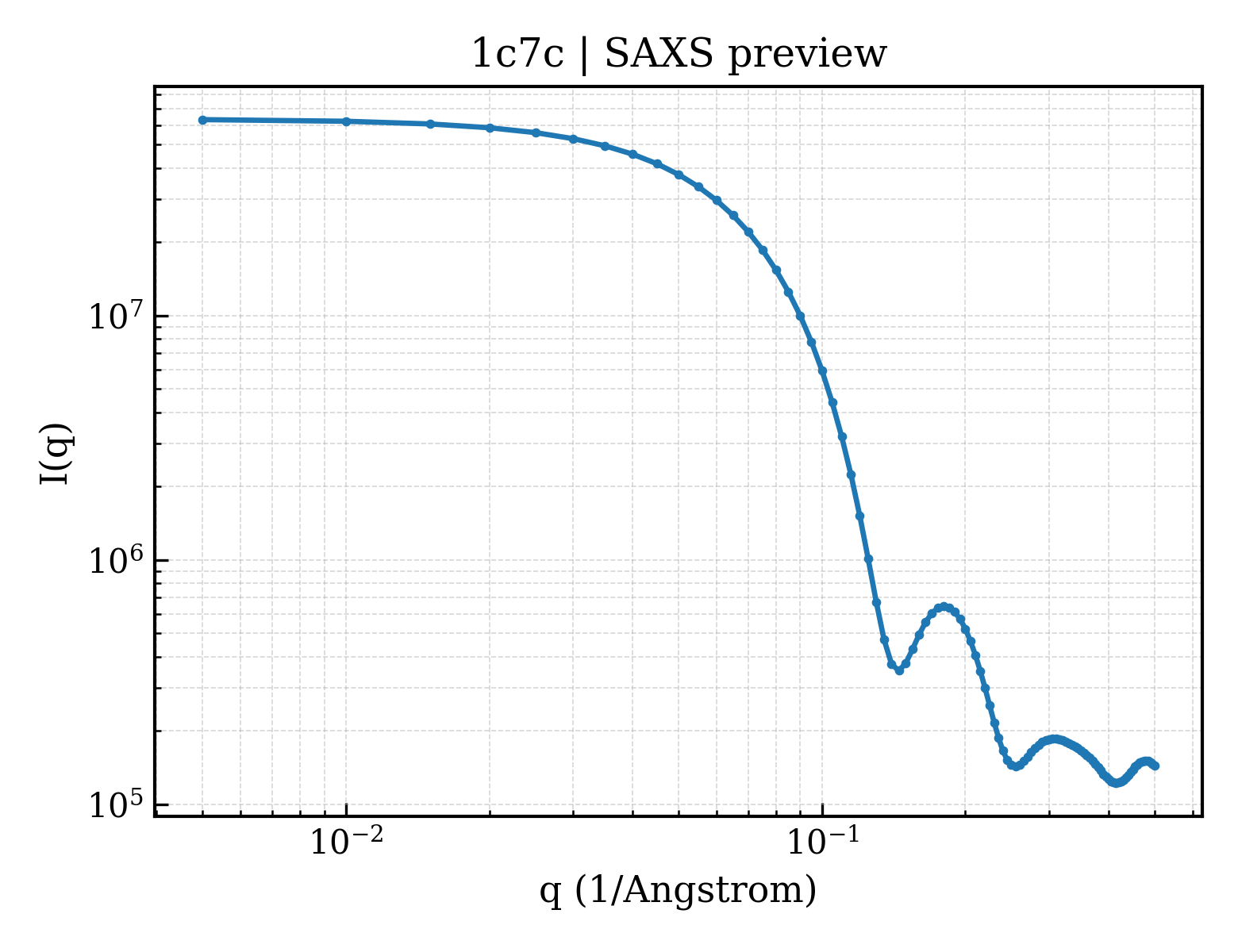

SAXS Profile

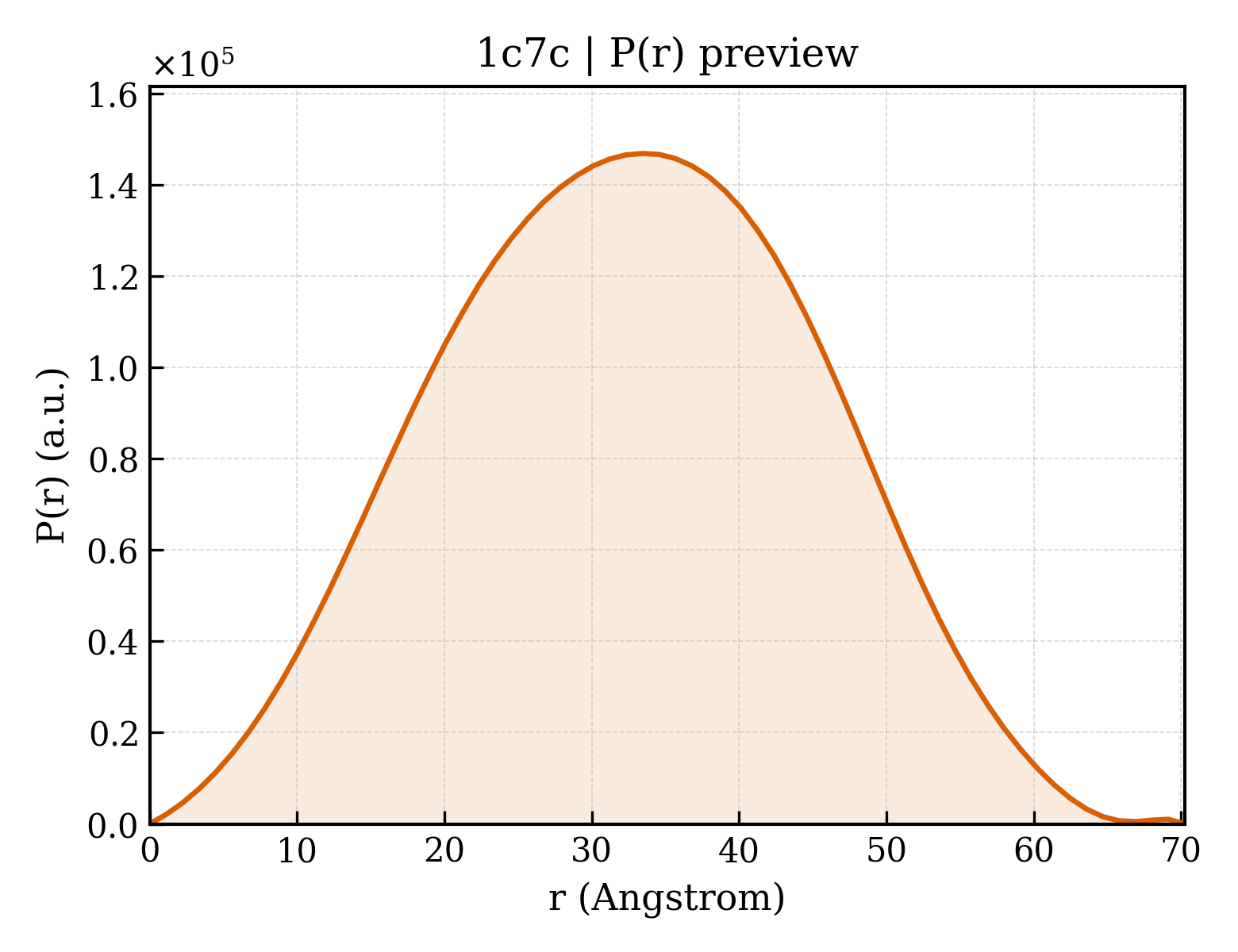

P(r) Distribution

▼

1. Structure Basics

entry_id	1c7c
deposition_date	2000-02-09
title	DEOXY RHB1.1 (RECOMBINANT HEMOGLOBIN)
keywords	HEME, OXYGEN DELIVERY VEHICLE, BLOOD SUBSTITUTE, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.90 Å
rg_electron	23.58 Å
i0	63583800.00
molecular_weight	64621.0 kDa
excluded_volume	81774 Å³
envelope_volume	96860 Å³
shell_volume	32935 Å³
envelope_diameter	72.5 Å
shell_rg	31.62 Å
envelope_rg	23.26 Å
shape_rg	23.57 Å
total_rg	24.49 Å
total_atoms	4564
n_residues	575
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	70.3 Å
rg_real	24.64 Å
rg_real_error	0.22 Å
i0_real	6.3580e+07
i0_real_error	7.3480e+05
rg_reciprocal	24.70 Å
i0_reciprocal	63590000.0000
total_estimate	0.9122
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	33.5 Å
skewness	-0.004
kurtosis	-0.574
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	13790000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.968

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	PROTEIN (DEOXYHEMOGLOBIN (ALPHA CHAIN))
formula_weight	30371.8 kDa
mutation	V1M,142G
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4886

MLSPADKTNVKAAWGKVGAHAGEYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGKKVADALTNAVAHVDDMPNALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHLPAEFTPAVHASLDKFLASVSTVLTSKYRGVLSPADKTNVKAAWGKVGAHAGEYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGKKVADALTNAVAHVDDMPNALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHLPAEFTPAVHASLDKFLASVSTVLTSKYR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	PROTEIN (DEOXYHEMOGLOBIN (BETA CHAIN))
formula_weight	15937.3 kDa
mutation	V1M,N108K
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

MHLTPEEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLGAFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGKVLVCVLAHHFGKEFTPPVQAAYQKVVAGVANALAHKYH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	322

▶

6. Citations (3)

▶

length_a	63.204 Å
length_b	83.357 Å
length_c	54.003 Å
angle_alpha	90.00 °
angle_beta	99.07 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.800 Å
resolution_low	8.000 Å
r_factor	0.1753
r_work	—
r_free	0.2266

fit	/app/data/saxs_computation/c7/1c7c/1c7c.fit
pddf	/app/data/pr_computation/c7/1c7c/1c7c.pr.out
profile	/app/data/saxs_computation/c7/1c7c/1c7c.dat
