1c7o

CRYSTAL STRUCTURE OF CYSTALYSIN FROM TREPONEMA DENTICOLA CONTAINS A PYRIDOXAL 5'-PHOSPHATE-L-AMINOETHOXYVINYLGLYCINE COMPLEX

Method: X-RAY DIFFRACTION D_max: 199.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYSTALYSIN

Treponema denticola

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–399 Chain B； UniProt 1–399	Not recorded	PPG (2E,3E)-4-(2-aminoethoxy)-2-[({3-hydroxy-2-methyl-5-[(phosphonooxy)methyl]pyridin-4-yl}methyl)imino]but-3-enoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, VAPOR DIFFUSION/SITTING DROP, temperature 293.0K	Resolution 2.50 Å R-free 0.260
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–399 Chain D； UniProt 1–399	Not recorded	PPG (2E,3E)-4-(2-aminoethoxy)-2-[({3-hydroxy-2-methyl-5-[(phosphonooxy)methyl]pyridin-4-yl}methyl)imino]but-3-enoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, VAPOR DIFFUSION/SITTING DROP, temperature 293.0K	Resolution 2.50 Å R-free 0.260
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–399 Chain F； UniProt 1–399	Not recorded	PPG (2E,3E)-4-(2-aminoethoxy)-2-[({3-hydroxy-2-methyl-5-[(phosphonooxy)methyl]pyridin-4-yl}methyl)imino]but-3-enoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, VAPOR DIFFUSION/SITTING DROP, temperature 293.0K	Resolution 2.50 Å R-free 0.260
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–399 Chain H； UniProt 1–399	Not recorded	PPG (2E,3E)-4-(2-aminoethoxy)-2-[({3-hydroxy-2-methyl-5-[(phosphonooxy)methyl]pyridin-4-yl}methyl)imino]but-3-enoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, VAPOR DIFFUSION/SITTING DROP, temperature 293.0K	Resolution 2.50 Å R-free 0.260

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1C7O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C7N CRYSTAL STRUCTURE OF CYSTALYSIN FROM TREPONEMA DENTICOLA CONTAINS A PYRIDOXAL 5'-PHOSPHATE COFACTOR Deposited 2000-03-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–399（399 aa） Chain B 1–399（399 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, vapor diffusion/sitting drop, temperature 293.0K	Resolution 1.90 Å R-free 0.247
1C7N CRYSTAL STRUCTURE OF CYSTALYSIN FROM TREPONEMA DENTICOLA CONTAINS A PYRIDOXAL 5'-PHOSPHATE COFACTOR Deposited 2000-03-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–399（399 aa） Chain D 1–399（399 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, vapor diffusion/sitting drop, temperature 293.0K	Resolution 1.90 Å R-free 0.247
1C7N CRYSTAL STRUCTURE OF CYSTALYSIN FROM TREPONEMA DENTICOLA CONTAINS A PYRIDOXAL 5'-PHOSPHATE COFACTOR Deposited 2000-03-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–399（399 aa） Chain F 1–399（399 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, vapor diffusion/sitting drop, temperature 293.0K	Resolution 1.90 Å R-free 0.247
1C7N CRYSTAL STRUCTURE OF CYSTALYSIN FROM TREPONEMA DENTICOLA CONTAINS A PYRIDOXAL 5'-PHOSPHATE COFACTOR Deposited 2000-03-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 1–399（399 aa） Chain H 1–399（399 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 4000, magnesium acetate, MES, pH 6.5, vapor diffusion/sitting drop, temperature 293.0K	Resolution 1.90 Å R-free 0.247

1 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q56257_TREDE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–399； UniProt 1–399 Author chain B； PDBConstruct 1–399； UniProt 1–399 Author chain C； PDBConstruct 1–399； UniProt 1–399 Author chain D； PDBConstruct 1–399； UniProt 1–399 Author chain E； PDBConstruct 1–399； UniProt 1–399 Author chain F； PDBConstruct 1–399； UniProt 1–399 Author chain G； PDBConstruct 1–399； UniProt 1–399 Author chain H； PDBConstruct 1–399； UniProt 1–399

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c7o
Deposition date deposition_date	2000-03-16
Structure title title	CRYSTAL STRUCTURE OF CYSTALYSIN FROM TREPONEMA DENTICOLA CONTAINS A PYRIDOXAL 5'-PHOSPHATE-L-AMINOETHOXYVINYLGLYCINE COMPLEX
Keywords keywords	Transferase, Aminotransferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	66.49 Å
Radius of gyration Rg (electron density) rg_electron	67.20 Å
Forward intensity I(0) i0	1742980000.00
Molecular weight molecular_weight	367470.0 kDa
Excluded volume excluded_volume	465780 Å³
Envelope volume envelope_volume	672510 Å³
Hydration-shell volume shell_volume	87217 Å³
Envelope diameter envelope_diameter	223.3 Å
Shell Rg shell_rg	62.59 Å
Envelope Rg envelope_rg	64.26 Å
Shape Rg shape_rg	67.19 Å
Total Rg total_rg	67.13 Å
Total atoms total_atoms	25864
Residues n_residues	3152
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

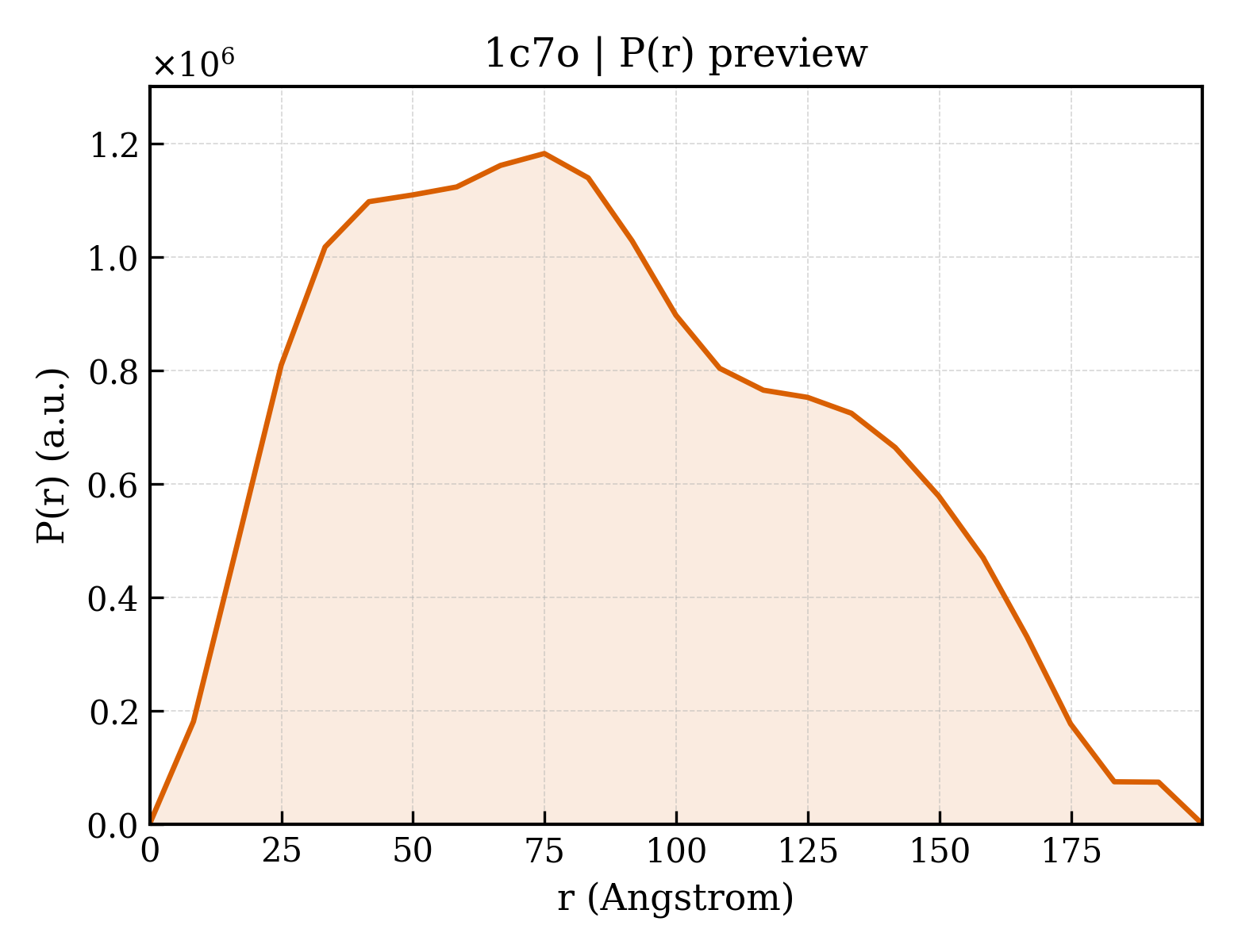

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	199.8 Å
Rg (real space) rg_real	67.04 Å
Rg uncertainty (real space) rg_real_error	1.80 Å
I(0) (real space) i0_real	1.7430e+09
I(0) uncertainty (real space) i0_real_error	3.5490e+07
Rg (reciprocal space) rg_reciprocal	65.90 Å
I(0) (reciprocal space) i0_reciprocal	1739000000.0000
Solution quality estimate total_estimate	0.8219
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	74.9 Å
Skewness Skewness skewness	0.311
Kurtosis Kurtosis kurtosis	-0.800
Angular range angular_range	— – 0.1200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	44110000.0000
Real-space data points n_real_points	25
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.935; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.879; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CYSTALYSIN
Molecular weight formula_weight	46278.4 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	27138

MIYDFTTKISRKNLGSLKWDLMYSQNPEVGNEVVPLSVADMEFKNPPELIEGLKKYLDETVLGYTGPTEEYKKTVKKWMKDRHQWDIQTDWIINTAGVVPAVFNAVREFTKPGDGVIIITPVYYPFFMAIKNQERKIIECELLEKDGYYTIDFQKLEKLSKDKNNKALLFCSPHNPVGRVWKKDELQKIKDIVLKSDLMLWSDEIHFDLIMPGYEHTVFQSIDEQLADKTITFTAPSKTFNIAGMGMSNIIIKNPDIRERFTKSRDATSGMPFTTLGYKACEICYKECGKWLDGCIKVIDKNQRIVKDFFEVNHPEIKAPLIEGTYLQWIDFRALKMDHKAMEEFMIHKAQIFFDEGYIFGDGGIGFERINLAAPSSVIQESLERLNKALKDLKNRHLK

来源 Source

来源生物 organism	Treponema denticola
NCBI Class编号 ncbi_taxonomy_id	158
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(2E,3E)-4-(2-aminoethoxy)-2-[({3-hydroxy-2-methyl-5-[(phosphonooxy)methyl]pyridin-4-yl}methyl)imino]but-3-enoic acid
Molecular weight formula_weight	389.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1274

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1c7oa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7ob_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7oc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7od_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7oe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7of_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7og_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1c7oh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

CATH v4.4 (16 domains)

Domain ID domain_id	1c7oA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oG01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c7oH01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c7oH02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

▶

8. Citations (1)

▶

Unit-cell length a length_a	89.373 Å
Unit-cell length b length_b	107.929 Å
Unit-cell length c length_c	176.156 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.17 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2010
R_work r_work	0.1930
R_free r_free	0.2600
