1c8n
TOBACCO NECROSIS VIRUS
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1c8n |
| deposition_date | 2000-05-20 |
| title | TOBACCO NECROSIS VIRUS |
| keywords | VIRUS, Icosahedral virus; VIRUS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.37 Å |
| rg_electron | 28.02 Å |
| i0 | 62621600.00 |
| molecular_weight | 64357.0 kDa |
| excluded_volume | 81318 ų |
| envelope_volume | 96985 ų |
| shell_volume | 29866 ų |
| envelope_diameter | 96.7 Å |
| shell_rg | 34.25 Å |
| envelope_rg | 28.62 Å |
| shape_rg | 28.00 Å |
| total_rg | 28.71 Å |
| total_atoms | 4532 |
| n_residues | 597 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

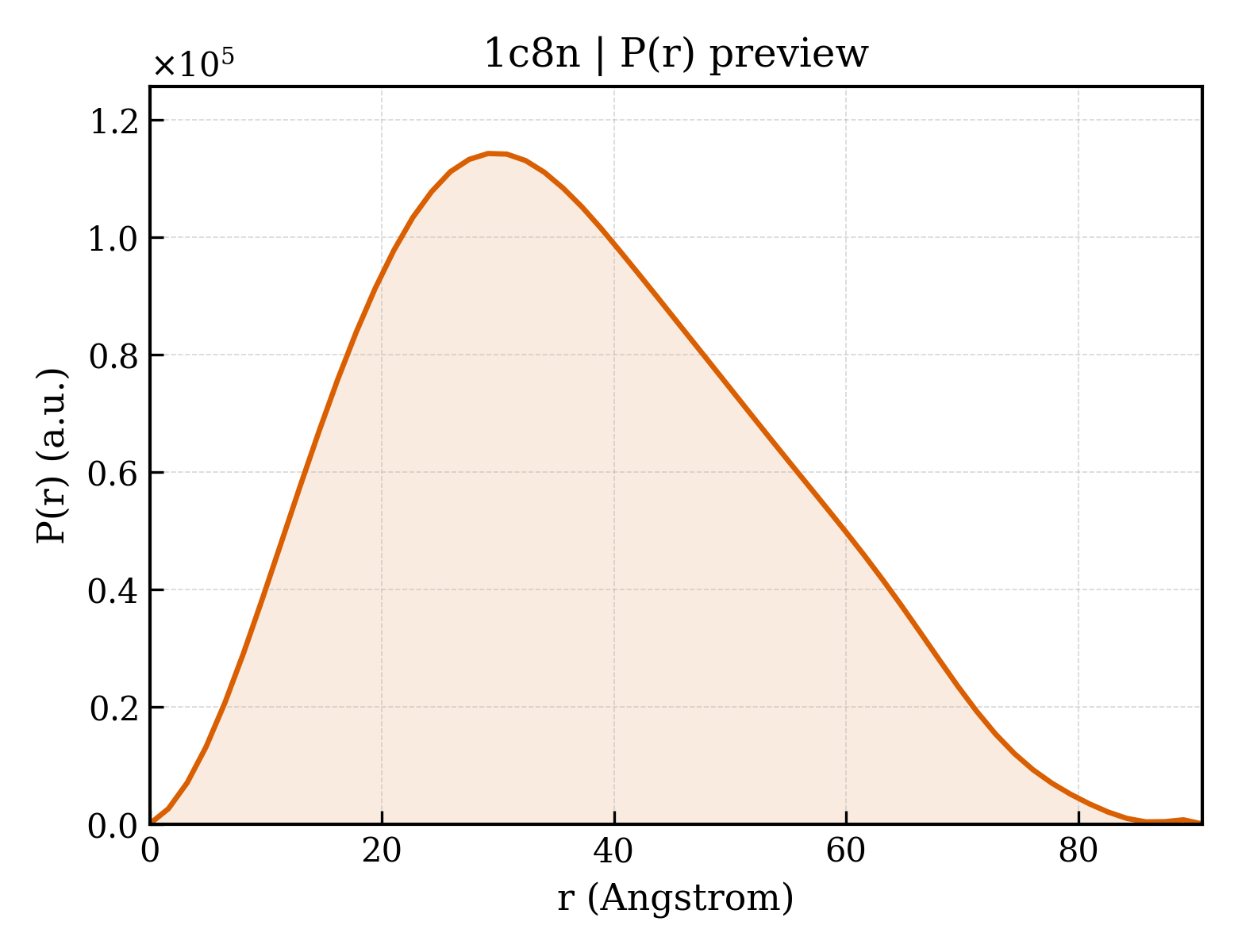

3. P(r) Analysis (GNOM)
| dmax | 90.7 Å |
| rg_real | 28.42 Å |
| rg_real_error | 0.59 Å |
| i0_real | 6.2620e+07 |
| i0_real_error | 9.2990e+05 |
| rg_reciprocal | 28.41 Å |
| i0_reciprocal | 62620000.0000 |
| total_estimate | 0.9002 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 29.1 Å |
| skewness | 0.325 |
| kurtosis | -0.548 |
| angular_range | — – 0.2800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8398000.0000 |
| n_real_points | 57 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.963; Smooth: 0.935 |
