1c9z
D232-CGTACG

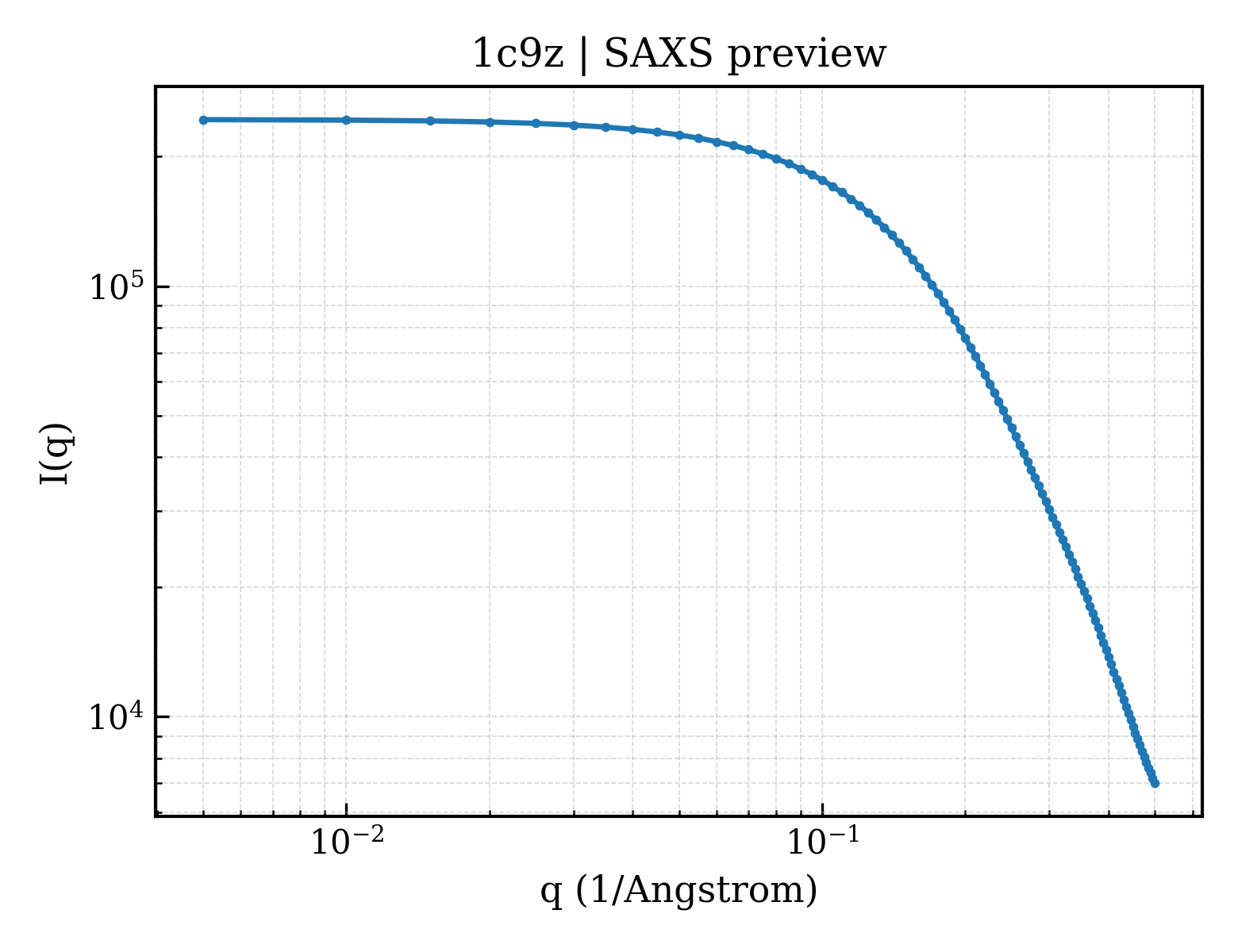

SAXS Profile

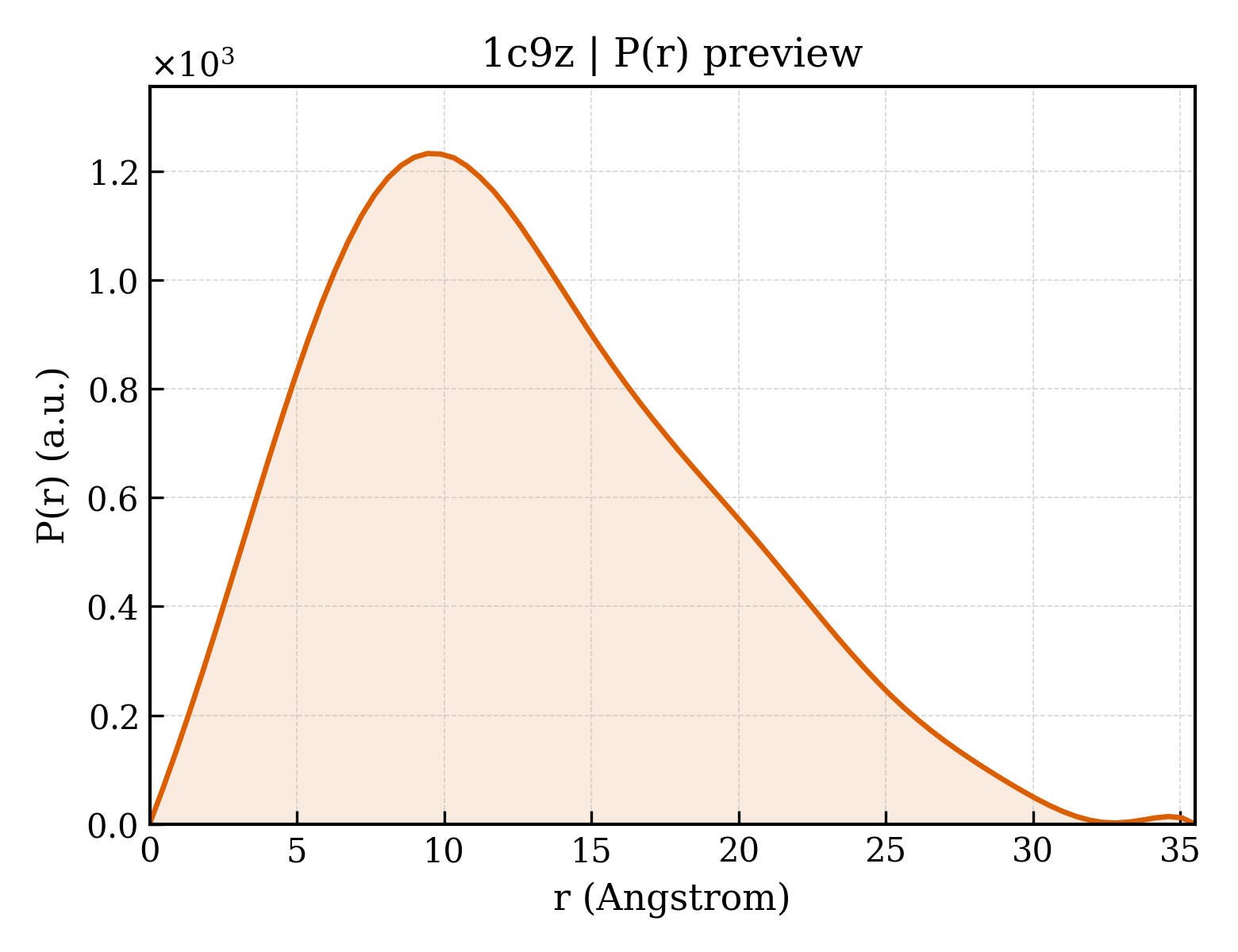

P(r) Distribution
1. Structure Basics
| entry_id | 1c9z |
| deposition_date | 1999-08-03 |
| title | D232-CGTACG |
| keywords | DNA, INTERCALATOR, INTERCALATION, DRUG, MAJOR GROOVE; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.86 Å |
| rg_electron | 9.12 Å |
| i0 | 243745.00 |
| molecular_weight | 2184.0 kDa |
| excluded_volume | 2330 ų |
| envelope_volume | 2995 ų |
| shell_volume | 3477 ų |
| envelope_diameter | 32.6 Å |
| shell_rg | 12.56 Å |
| envelope_rg | 9.51 Å |
| shape_rg | 9.05 Å |
| total_rg | 10.25 Å |
| total_atoms | 149 |
| n_residues | 6 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.5 Å |
| rg_real | 9.97 Å |
| rg_real_error | 0.34 Å |
| i0_real | 2.4370e+05 |
| i0_real_error | 2.3780e+03 |
| rg_reciprocal | 9.97 Å |
| i0_reciprocal | 243700.0000 |
| total_estimate | 0.8268 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.4 Å |
| skewness | 0.497 |
| kurtosis | -0.301 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9907.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.471; Smooth: 0.943 |
