1cah

STRUCTURE OF COBALT CARBONIC ANHYDRASE COMPLEXED WITH BICARBONATE

Method: X-RAY DIFFRACTION D_max: 57.9 Å Quality: REASONABLE

SAXS Profile

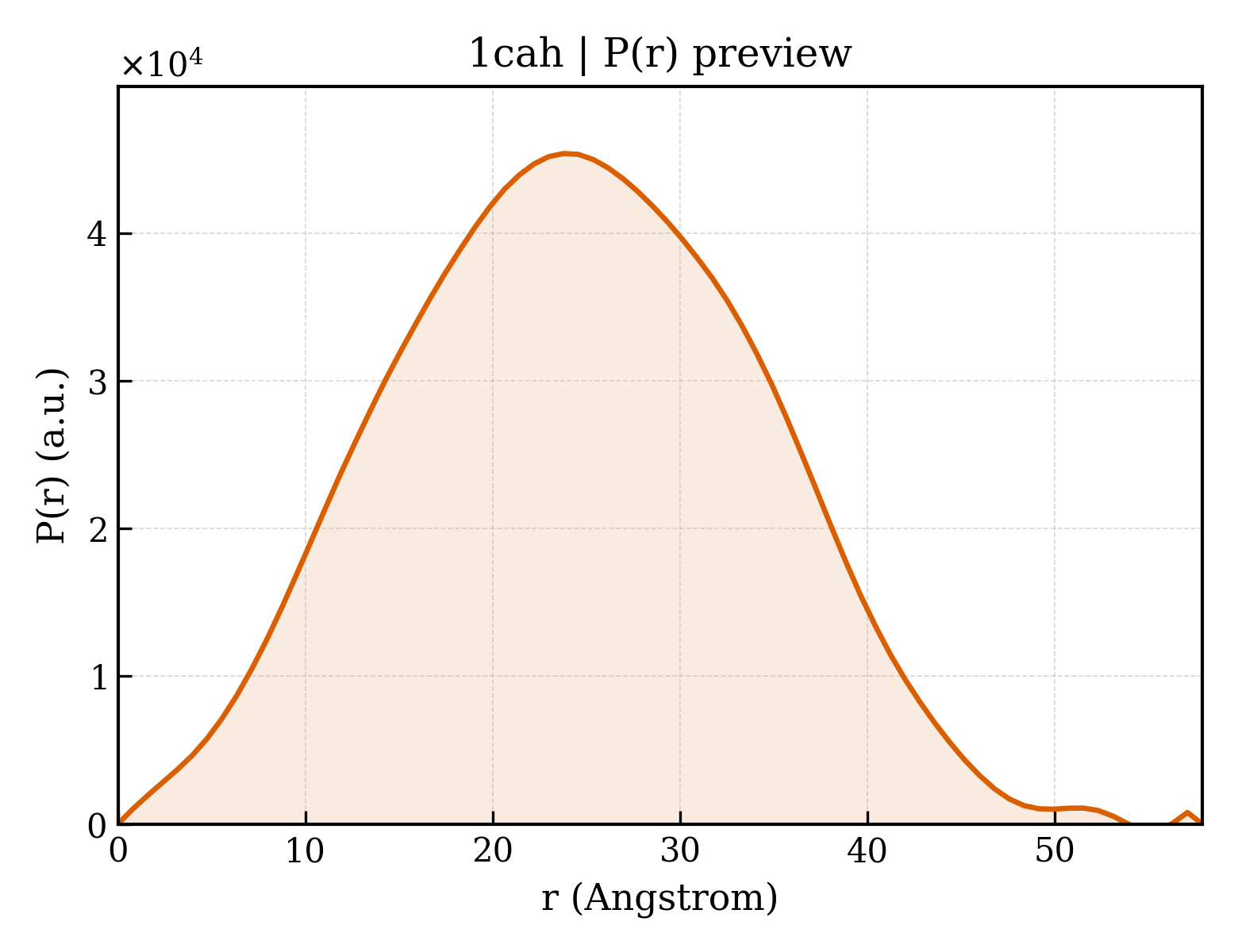

P(r) Distribution

▼

1. Structure Basics

entry_id	1cah
deposition_date	1992-06-25
title	STRUCTURE OF COBALT CARBONIC ANHYDRASE COMPLEXED WITH BICARBONATE
keywords	LYASE(OXO-ACID); LYASE(OXO-ACID)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.74 Å
rg_electron	17.46 Å
i0	14662300.00
molecular_weight	29147.0 kDa
excluded_volume	36584 Å³
envelope_volume	41214 Å³
shell_volume	19202 Å³
envelope_diameter	61.0 Å
shell_rg	24.16 Å
envelope_rg	17.78 Å
shape_rg	17.44 Å
total_rg	18.54 Å
total_atoms	2064
n_residues	258
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	57.9 Å
rg_real	18.59 Å
rg_real_error	0.30 Å
i0_real	1.4660e+07
i0_real_error	1.5500e+05
rg_reciprocal	18.62 Å
i0_reciprocal	14660000.0000
total_estimate	0.6324
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	23.8 Å
skewness	0.059
kurtosis	-0.459
angular_range	— – 0.4250 Å⁻¹
current_alpha	0.0000
highest_alpha	2408000.0000
n_real_points	74
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 0.997; Sysdev: 0.197; Positv: 1.000; Valcen: 0.980; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	CARBONIC ANHYDRASE II
formula_weight	29157.9 kDa
ec_number	4.2.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2301

SHHWGYGKHNGPEHWHKDFPIAKGERQSPVDIDTHTAKYDPSLKPLSVSYDQATSLRILNNGHAFNVEFDDSQDKAVLKGGPLDGTYRLIQFHFHWGSLDGQGSEHTVDKKKYAAELHLVHWNTKYGDFGKAVQQPDGLAVLGIFLKVGSAKPGLQKVVDVLDSIKTKGKSADFTNFDPRGLLPESLDYWTYPGSLTTPPLLECVTWIVLKEPISVSSEQVLKFRKLNFNGEGEPEELMVDNWRPAQPLKNRQIKASFK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606

Entity 2 non-polymer

description	COBALT (II) ION
formula_weight	58.9 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	BICARBONATE ION
formula_weight	61.0 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	217

▶

6. Citations (2)

▶

length_a	42.700 Å
length_b	41.700 Å
length_c	73.000 Å
angle_alpha	90.00 °
angle_beta	104.60 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.880 Å
resolution_low	10.000 Å
r_factor	0.1600
r_work	—
r_free	—
