1cct
STRUCTURE-ASSISTED REDESIGN OF A PROTEIN-ZINC BINDING SITE WITH FEMTOMOLAR AFFINITY
SAXS Profile

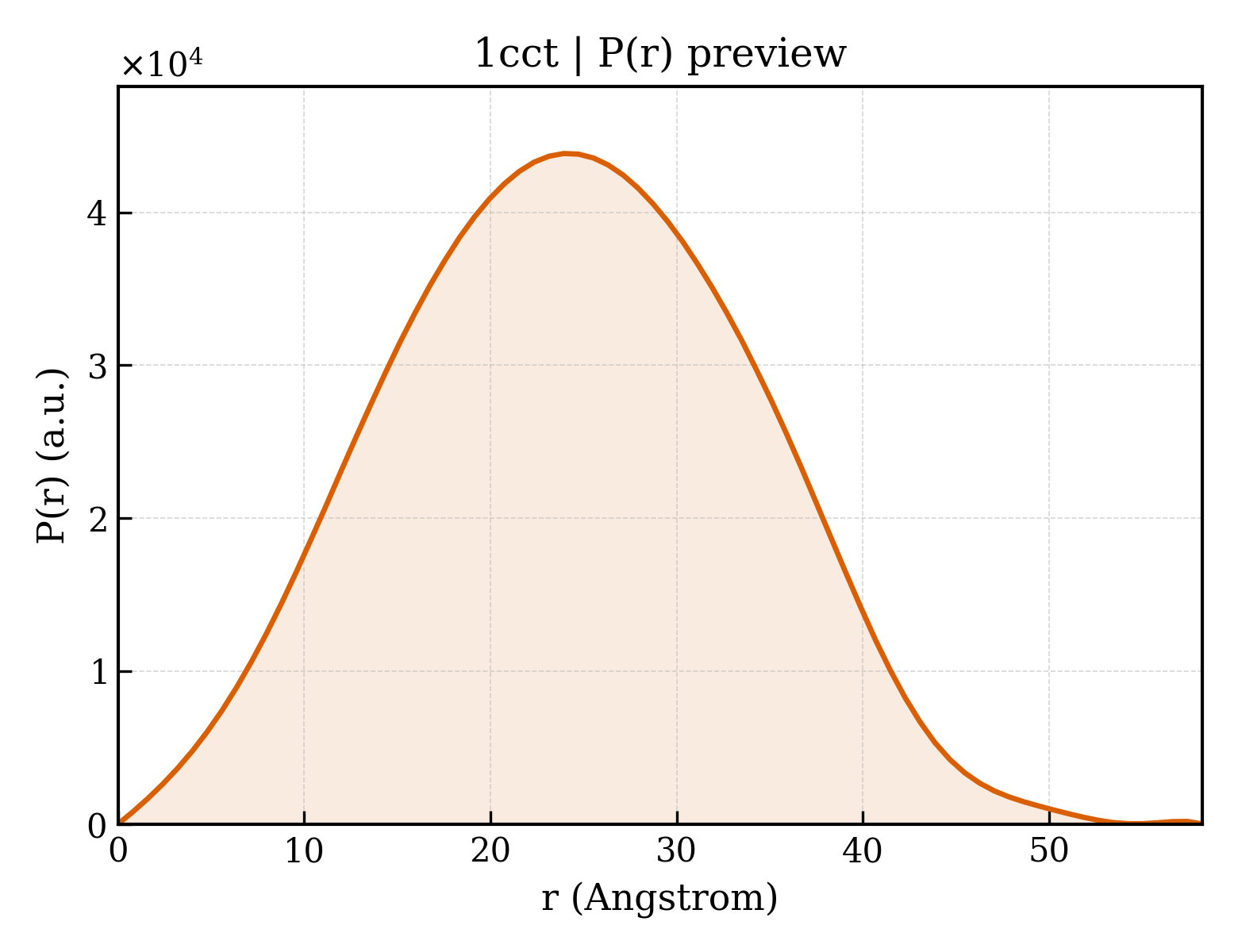

P(r) Distribution
1. Structure Basics
| entry_id | 1cct |
| deposition_date | 1994-12-09 |
| title | STRUCTURE-ASSISTED REDESIGN OF A PROTEIN-ZINC BINDING SITE WITH FEMTOMOLAR AFFINITY |
| keywords | LYASE (OXO-ACID); LYASE (OXO-ACID) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.63 Å |
| rg_electron | 17.33 Å |
| i0 | 14165200.00 |
| molecular_weight | 28699.0 kDa |
| excluded_volume | 36060 ų |
| envelope_volume | 40264 ų |
| shell_volume | 18936 ų |
| envelope_diameter | 59.3 Å |
| shell_rg | 24.02 Å |
| envelope_rg | 17.62 Å |
| shape_rg | 17.30 Å |
| total_rg | 18.42 Å |
| total_atoms | 2032 |
| n_residues | 255 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.2 Å |
| rg_real | 18.49 Å |
| rg_real_error | 0.29 Å |
| i0_real | 1.4170e+07 |
| i0_real_error | 1.6180e+05 |
| rg_reciprocal | 18.51 Å |
| i0_reciprocal | 14170000.0000 |
| total_estimate | 0.8930 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.9 Å |
| skewness | 0.056 |
| kurtosis | -0.465 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2236000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.979 |
