1cev

ARGINASE FROM BACILLUS CALDOVELOX, NATIVE STRUCTURE AT PH 5.6

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ARGINASE)

Bacillus caldovelox

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MANGANESE (II) ION × 12	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	MANGANESE (II) ION × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARGI_BACCD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–299； UniProt 1–299 Author chain B； PDBConstruct 1–299； UniProt 1–299 Author chain C； PDBConstruct 1–299； UniProt 1–299 Author chain D； PDBConstruct 1–299； UniProt 1–299 Author chain E； PDBConstruct 1–299； UniProt 1–299 Author chain F； PDBConstruct 1–299； UniProt 1–299

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cev
Deposition date deposition_date	1999-03-12
Structure title title	ARGINASE FROM BACILLUS CALDOVELOX, NATIVE STRUCTURE AT PH 5.6
Keywords keywords	ENZYME, HYDROLASE, ARGININE HYDROLYSIS, NITROGEN METABOLISM, MANGANESE METALLOENZYME; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1cev__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

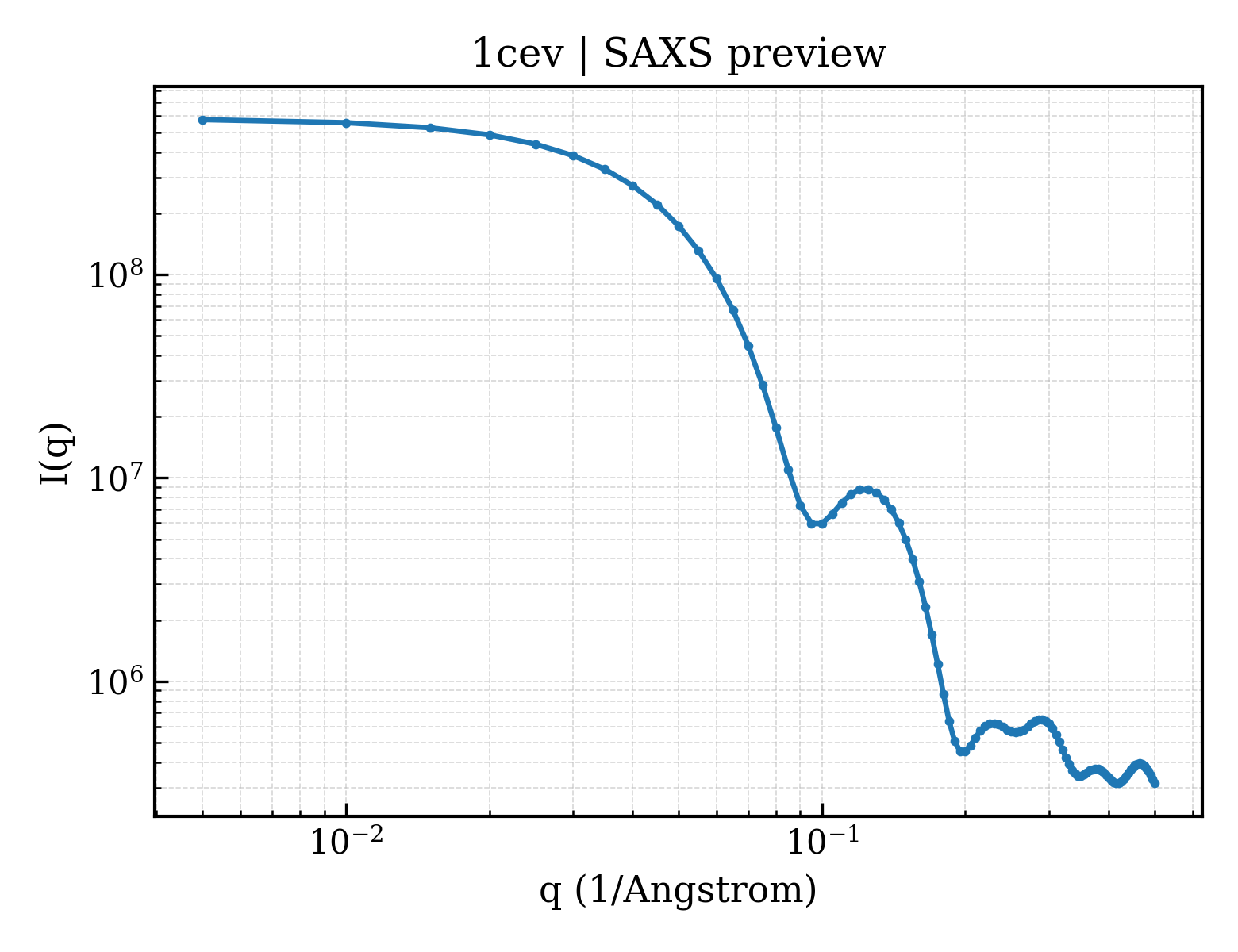

1cev__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1cev__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.19 Å
Rg (electron density)	36.12 Å
Total Rg	36.53 Å
Atom count	13668
Residues	1794
Excluded volume	243900 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1cev__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1cev__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1ceva_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1cevb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1cevc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1cevd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1ceve_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1cevf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

CATH v4.4 (6 domains)

Domain ID domain_id	1cevA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1cevB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1cevC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1cevD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1cevE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1cevF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

▶

Unit-cell length a length_a	83.600 Å
Unit-cell length b length_b	145.600 Å
Unit-cell length c length_c	155.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	—
R_work r_work	0.2050
R_free r_free	0.2650

Description description	PROTEIN (ARGINASE)
Molecular weight formula_weight	32476.2 kDa
EC 编号 ec_number	3.5.3.1
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	13668

ARGINASE FROM BACILLUS CALDOVELOX, NATIVE STRUCTURE AT PH 5.6

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ARGINASE)

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1cev__assembly_1__model_1

1cev__assembly_1__model_1 | I(q)

1cev__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

7. Citations (1)

Source organism organism	Bacillus caldovelox
NCBI taxonomy ID ncbi_taxonomy_id	33931
Host organism host_organism	Escherichia coli

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	12
