1cgf
CRYSTAL STRUCTURES OF RECOMBINANT 19-KDA HUMAN FIBROBLAST COLLAGENASE COMPLEXED TO ITSELF
SAXS Profile

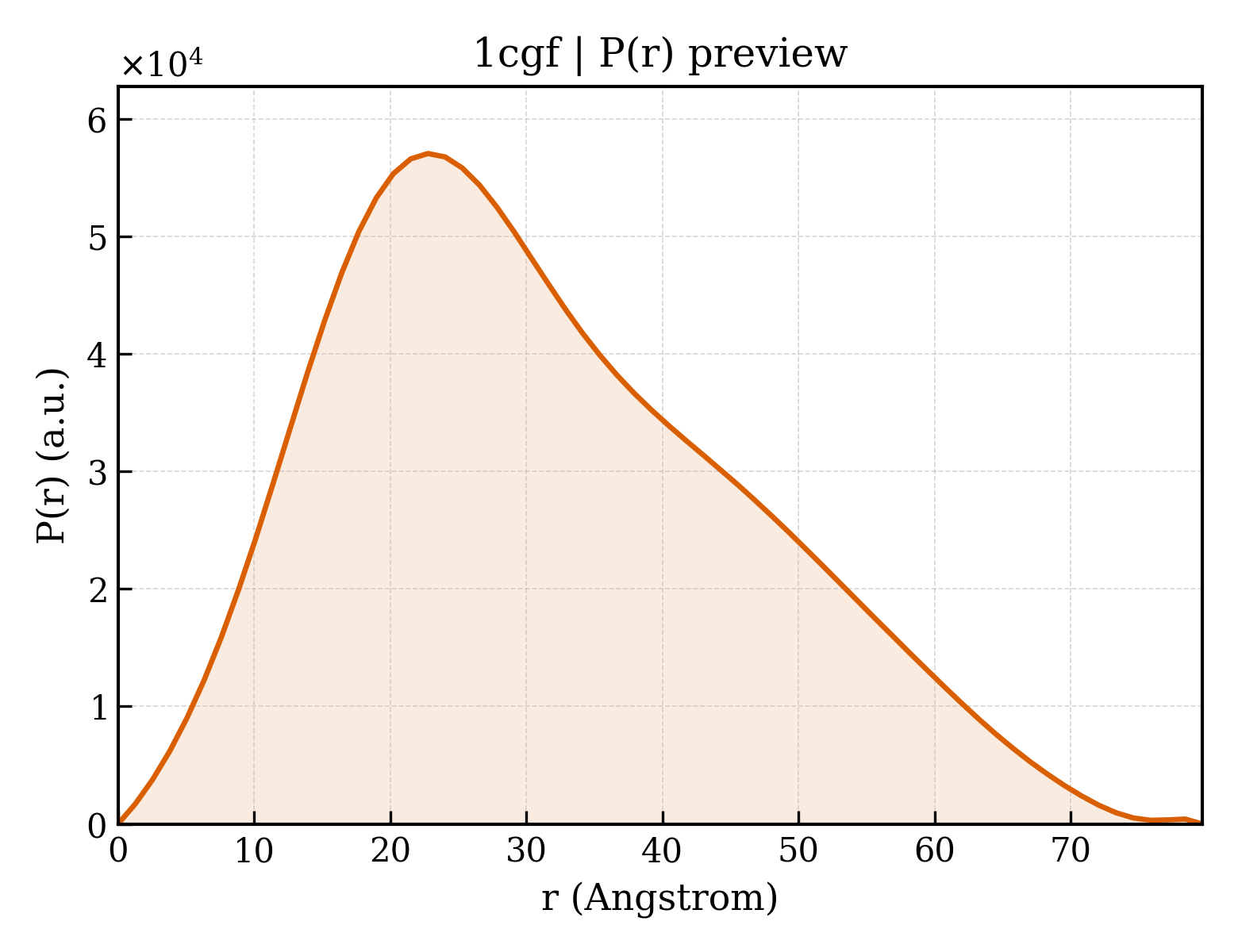

P(r) Distribution
1. Structure Basics
| entry_id | 1cgf |
| deposition_date | 1994-02-03 |
| title | CRYSTAL STRUCTURES OF RECOMBINANT 19-KDA HUMAN FIBROBLAST COLLAGENASE COMPLEXED TO ITSELF |
| keywords | HYDROLASE (METALLOPROTEASE); HYDROLASE (METALLOPROTEASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.31 Å |
| rg_electron | 23.77 Å |
| i0 | 25448100.00 |
| molecular_weight | 36429.0 kDa |
| excluded_volume | 44476 ų |
| envelope_volume | 55197 ų |
| shell_volume | 20384 ų |
| envelope_diameter | 80.4 Å |
| shell_rg | 29.63 Å |
| envelope_rg | 23.75 Å |
| shape_rg | 23.76 Å |
| total_rg | 24.49 Å |
| total_atoms | 3104 |
| n_residues | 324 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 79.7 Å |
| rg_real | 24.48 Å |
| rg_real_error | 0.58 Å |
| i0_real | 2.5450e+07 |
| i0_real_error | 3.7740e+05 |
| rg_reciprocal | 24.44 Å |
| i0_reciprocal | 25450000.0000 |
| total_estimate | 0.8620 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.8 Å |
| skewness | 0.465 |
| kurtosis | -0.449 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6377000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.832; Smooth: 0.950 |
