1cgs

LOCAL AND TRANSMITTED CONFORMATIONAL CHANGES ON COMPLEXATION OF AN ANTI-SWEETENER FAB

Method: X-RAY DIFFRACTION D_max: 82.1 Å Quality: EXCELLENT

SAXS Profile

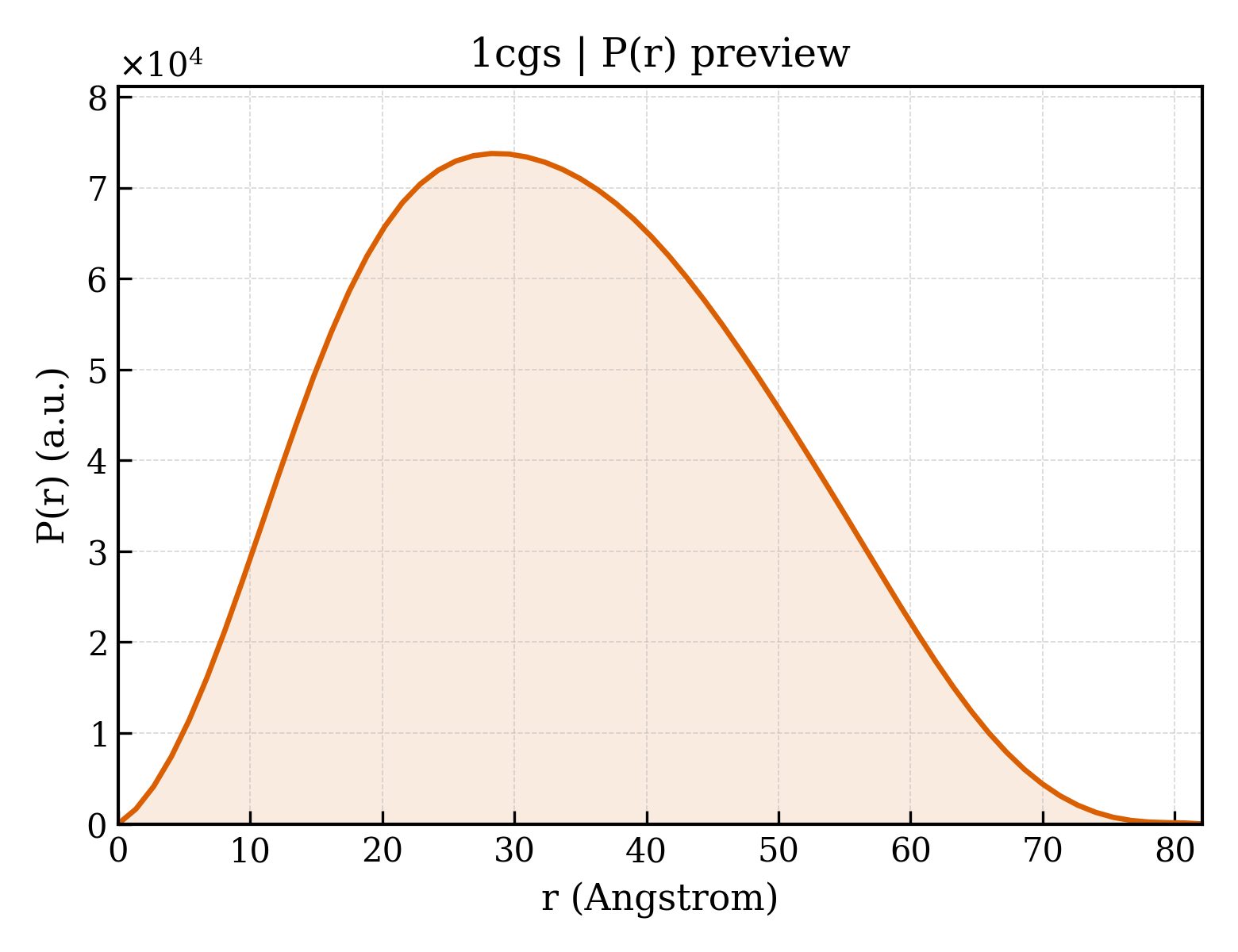

P(r) Distribution

▼

1. Structure Basics

entry_id	1cgs
deposition_date	1993-10-06
title	LOCAL AND TRANSMITTED CONFORMATIONAL CHANGES ON COMPLEXATION OF AN ANTI-SWEETENER FAB
keywords	IMMUNOGLOBULIN; IMMUNOGLOBULIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.07 Å
rg_electron	24.92 Å
i0	38504600.00
molecular_weight	46984.0 kDa
excluded_volume	58318 Å³
envelope_volume	73510 Å³
shell_volume	24705 Å³
envelope_diameter	80.3 Å
shell_rg	32.15 Å
envelope_rg	24.48 Å
shape_rg	24.90 Å
total_rg	25.80 Å
total_atoms	3304
n_residues	433
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	82.1 Å
rg_real	26.04 Å
rg_real_error	0.52 Å
i0_real	3.8500e+07
i0_real_error	5.7720e+05
rg_reciprocal	26.05 Å
i0_reciprocal	38500000.0000
total_estimate	0.9099
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	28.3 Å
skewness	0.232
kurtosis	-0.617
angular_range	— – 0.3050 Å⁻¹
current_alpha	0.0001
highest_alpha	7129000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.959

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	IGG2B-KAPPA NC6.8 FAB (LIGHT CHAIN)
formula_weight	24123.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L
atom_count	3412

ELVMTQSPLSLPVSLGDQASISCRPSQSLVHSNGNTYLHWYLQKPGQSPKLLIYRVSNRFSGVPDRFSGSGSGTAFTLKISRVEAEDLGVYFCSQGTHVPYTFGGGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090

Entity 2 polymer

description	IGG2B-KAPPA NC6.8 FAB (HEAVY CHAIN)
formula_weight	22903.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

RVQLLESGAELMKPGASVQISCKATGYTFSEYWIEWVKERPGHGLEWIGEILPGSGRTNYREKFKGKATFTADTSSNTAYMQLSSLTSEDSAVYYCTRGYSSMDYWGQGTSVTVSAAKTTPPSVYPLAPGCGDTTGSSVTLGCLVKGYFPESVTVTWNSGSLSSSVHTFPALLQSGLYTMSSSVTVPSSTWPSQTVTCSVAHPASSTTVDKKLE

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	108

▶

6. Citations (1)

▶

length_a	139.900 Å
length_b	51.400 Å
length_c	96.200 Å
angle_alpha	90.00 °
angle_beta	132.80 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.600 Å
resolution_low	10.000 Å
r_factor	0.2180
r_work	0.2180
r_free	—

fit	/app/data/saxs_computation/cg/1cgs/1cgs.fit
pddf	/app/data/pr_computation/cg/1cgs/1cgs.pr.out
profile	/app/data/saxs_computation/cg/1cgs/1cgs.dat
