1cmg

NMR SOLUTION STRUCTURE OF CALCIUM-LOADED CALMODULIN CARBOXY-TERMINAL DOMAIN

Method: SOLUTION NMR Dmax: 51.0 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALMODULIN (VERTEBRATE)

Bos taurus

UniProt P62157

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 76–148 Not recorded No other associated polymer SOLUTION NMR mmCIF provides none of the parsed experimental conditions Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1CMG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A29 CALMODULIN COMPLEXED WITH TRIFLUOPERAZINE (1:2 COMPLEX) Deposited 1998-01-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 TFP 10-[3-(4-METHYL-PIPERAZIN-1-YL)-PROPYL]-2-TRIFLUOROMETHYL-10H-PHENOTHIAZINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；PROTEIN WAS CRYSTALLIZED BY SITTING DROP TECHNIQUE IN THE COLD ROOM (8 DEGREES C +/- 2 DEGREES C) BY MIXING 4 MICROLITERS OF 1 MM PROTEIN CONTAINING 1.2-1.5 MM TFP IN 5 MM CACL2 WITH 4 MICROLITERS OF THE RESERVOIR SOLUTION (1 ML 10 MM SODIUM CACODYLATE/HCL BUFFER, PH 5.2-5.6 WITH 10 MM CACL2, 25-30 % (W/V) POLYETHYLENE GLYCOL 6000), CRYSTAL GROWTH TOOK 2-3 WEEKS., pH 5.0
Resolution 2.74 Å R-free 0.265
1AK8 NMR SOLUTION STRUCTURE OF CERIUM-LOADED CALMODULIN AMINO-TERMINAL DOMAIN (CE2-TR1C), 23 STRUCTURES Deposited 1997-05-29 Different construct Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–75（75 aa） Fragment：N-TERMINAL DOMAIN, TR1C
Not recorded CE CERIUM (III) ION × 2 SOLUTION NMR
NMR measurement conditions pH 6；298 K
Resolution not provided
1CDM MODULATION OF CALMODULIN PLASTICITY IN MOLECULAR RECOGNITION ON THE BASIS OF X-RAY STRUCTURES Deposited 1993-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 4–147（144 aa）
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å
1CMF NMR SOLUTION STRUCTURE OF APO CALMODULIN CARBOXY-TERMINAL DOMAIN Deposited 1995-07-19 Parsed fields agree Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 76–148（73 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1FW4 CRYSTAL STRUCTURE OF E. COLI FRAGMENT TR2C FROM CALMODULIN TO 1.7 A RESOLUTION Deposited 2000-09-21 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 78–148（71 aa） Fragment：C-TERMINAL DOMAIN (RESIDUES 78-148)
Not recorded CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；PEG 4000, calcium chloride, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.70 Å R-free 0.220
1LIN CALMODULIN COMPLEXED WITH TRIFLUOPERAZINE (1:4 COMPLEX) Deposited 1995-10-11 Different construct Different ligand/ion Different experimental method Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 TFP 10-[3-(4-METHYL-PIPERAZIN-1-YL)-PROPYL]-2-TRIFLUOROMETHYL-10H-PHENOTHIAZINE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å
1PRW Crystal structure of bovine brain Ca++ calmodulin in a compact form Deposited 2003-06-20 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；296 K；PEG 6000, sodium acetate, glycerol, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 1.70 Å R-free 0.230
1XA5 Structure of Calmodulin in complex with KAR-2, a bis-indol alkaloid Deposited 2004-08-25 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 KAR 3"-(BETA-CHLOROETHYL)-2",4"-DIOXO-3, 5"-SPIRO-OXAZOLIDINO-4-DEACETOXY-VINBLASTINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；279 K；CaCl2, MgCl2, cacodylate, PEG 8000, pH 4.7, VAPOR DIFFUSION, HANGING DROP, temperature 279K
Resolution 2.12 Å R-free 0.261
2F2O Structure of calmodulin bound to a calcineurin peptide: a new way of making an old binding mode Deposited 2005-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 0–148（149 aa）
Chain B 0–148（149 aa）
Not recorded CA CALCIUM ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.17 Å R-free 0.289
2F2O Structure of calmodulin bound to a calcineurin peptide: a new way of making an old binding mode Deposited 2005-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 0–148（149 aa）
Chain B 0–148（149 aa）
Not recorded CA CALCIUM ION × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.17 Å R-free 0.289
2F2P Structure of calmodulin bound to a calcineurin peptide: a new way of making an old binding mode Deposited 2005-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 0–148（149 aa）
Chain B 0–148（149 aa）
Not recorded CA CALCIUM ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.60 Å R-free 0.297
2F2P Structure of calmodulin bound to a calcineurin peptide: a new way of making an old binding mode Deposited 2005-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 0–148（149 aa）
Chain B 0–148（149 aa）
Not recorded CA CALCIUM ION × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.60 Å R-free 0.297
2FOT Crystal structure of the complex between calmodulin and alphaII-spectrin Deposited 2006-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–148（148 aa）
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；50mM Tris,pH 8.00, 30% PEG 8000, 0.1M ammonium-sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.45 Å R-free 0.269
3IF7 Structure of Calmodulin complexed with its first endogenous inhibitor, sphingosylphosphorylcholine Deposited 2009-07-24 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–149（148 aa）
Not recorded CA CALCIUM ION × 4 SPU 2-{[(R)-{[(2S,3R,4E)-2-amino-3-hydroxyoctadec-4-en-1-yl]oxy}(hydroxy)phosphoryl]oxy}-N,N,N-trimethylethanaminium × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；50mM sodium cacodylate, 10mM CaCl2, 10mM MgCl2, 28% PEG 8000: Mixed with 10mM lipid in methanol solution and 1mM protein solution, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.60 Å R-free 0.238
6O20 Cryo-EM structure of TRPV5 with calmodulin bound Deposited 2019-02-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 1–149（149 aa）
Not recorded CA CALCIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

13 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CALM_BOVIN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–73； UniProt 76–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

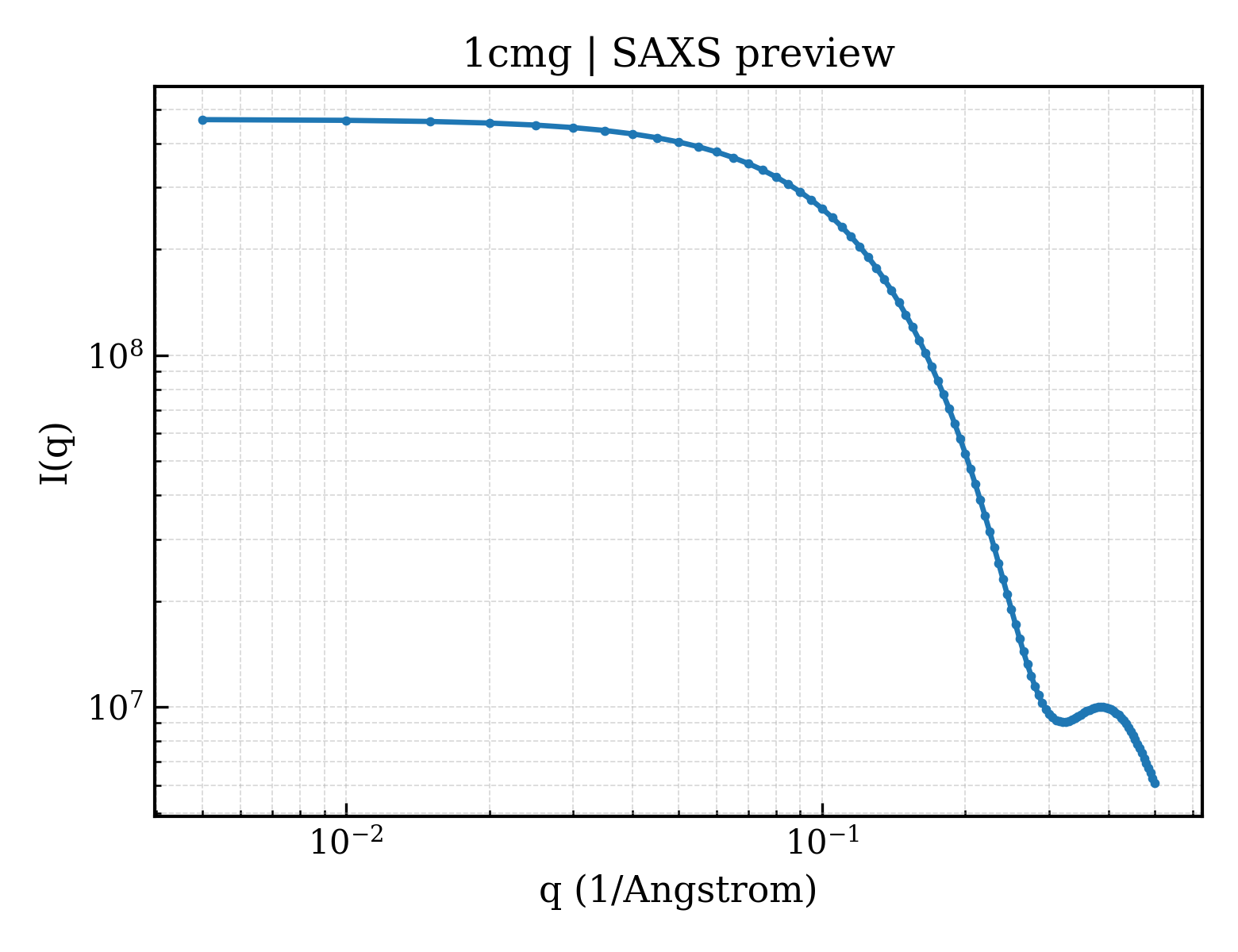

SAXS scattering curve SAXS Profile

SAXS profile for 1cmg

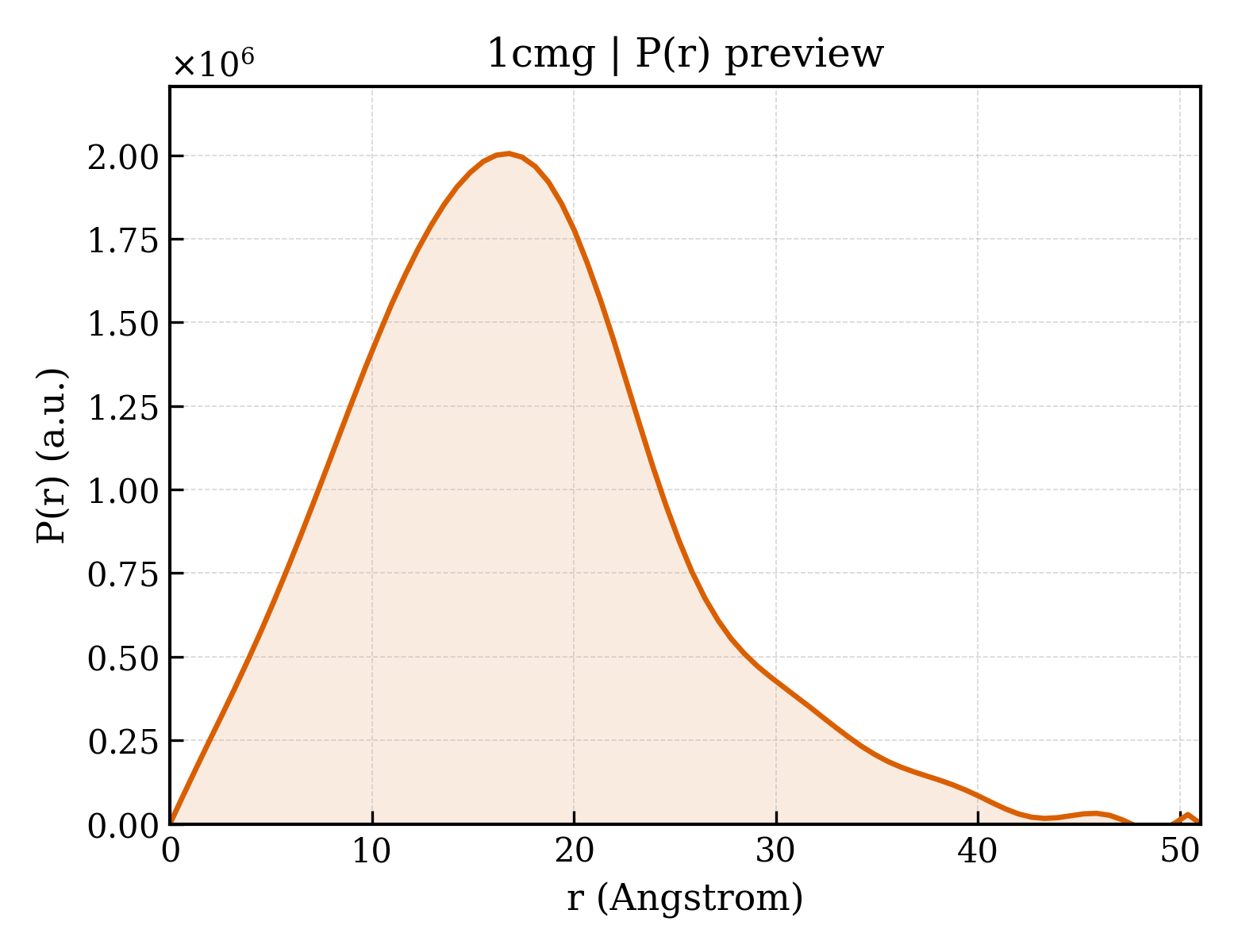

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1cmg
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1cmg
Deposition date deposition_date1995-07-19
Structure title titleNMR SOLUTION STRUCTURE OF CALCIUM-LOADED CALMODULIN CARBOXY-TERMINAL DOMAIN
Keywords keywordsCALCIUM-BINDING PROTEIN; CALCIUM-BINDING PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier13.29 Å
Radius of gyration Rg (electron density) rg_electron13.00 Å
Forward intensity I(0) i0468507000.00
Molecular weight molecular_weight167880.0 kDa
Excluded volume excluded_volume203660 ų
Envelope volume envelope_volume26492 ų
Hydration-shell volume shell_volume13904 ų
Envelope diameter envelope_diameter57.8 Å
Shell Rg shell_rg22.34 Å
Envelope Rg envelope_rg17.85 Å
Shape Rg shape_rg12.92 Å
Total Rg total_rg13.47 Å
Total atoms total_atoms22620
Residues n_residues1460
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax51.0 Å
Rg (real space) rg_real13.36 Å
Rg uncertainty (real space) rg_real_error0.56 Å
I(0) (real space) i0_real4.6850e+08
I(0) uncertainty (real space) i0_real_error5.5050e+06
Rg (reciprocal space) rg_reciprocal13.35 Å
I(0) (reciprocal space) i0_reciprocal468500000.0000
Solution quality estimate total_estimate0.7077
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary16.8 Å
Skewness Skewness skewness0.534
Kurtosis Kurtosis kurtosis0.319
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha118900.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.476; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.772; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1cmga_
Class classa — All alpha proteins
Fold Fold folda.39 — EF Hand-like
Superfamily Superfamily superfamilya.39.1 — EF-hand
Family Family familya.39.1.5 — Calmodulin-like

CATH v4.4 (1 domains)

Domain ID domain_id1cmgA00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology238 — Recoverin; domain 1
Homologous superfamily homologous superfamily10 — EF-hand
▶

8. Citations (2)

▶

9. Files and Curves (10)
