1cnj
X-RAY CRYSTALLOGRAPHIC STUDIES OF ENGINEERED HYDROGEN BOND NETWORKS IN A PROTEIN-ZINC BINDING SITE

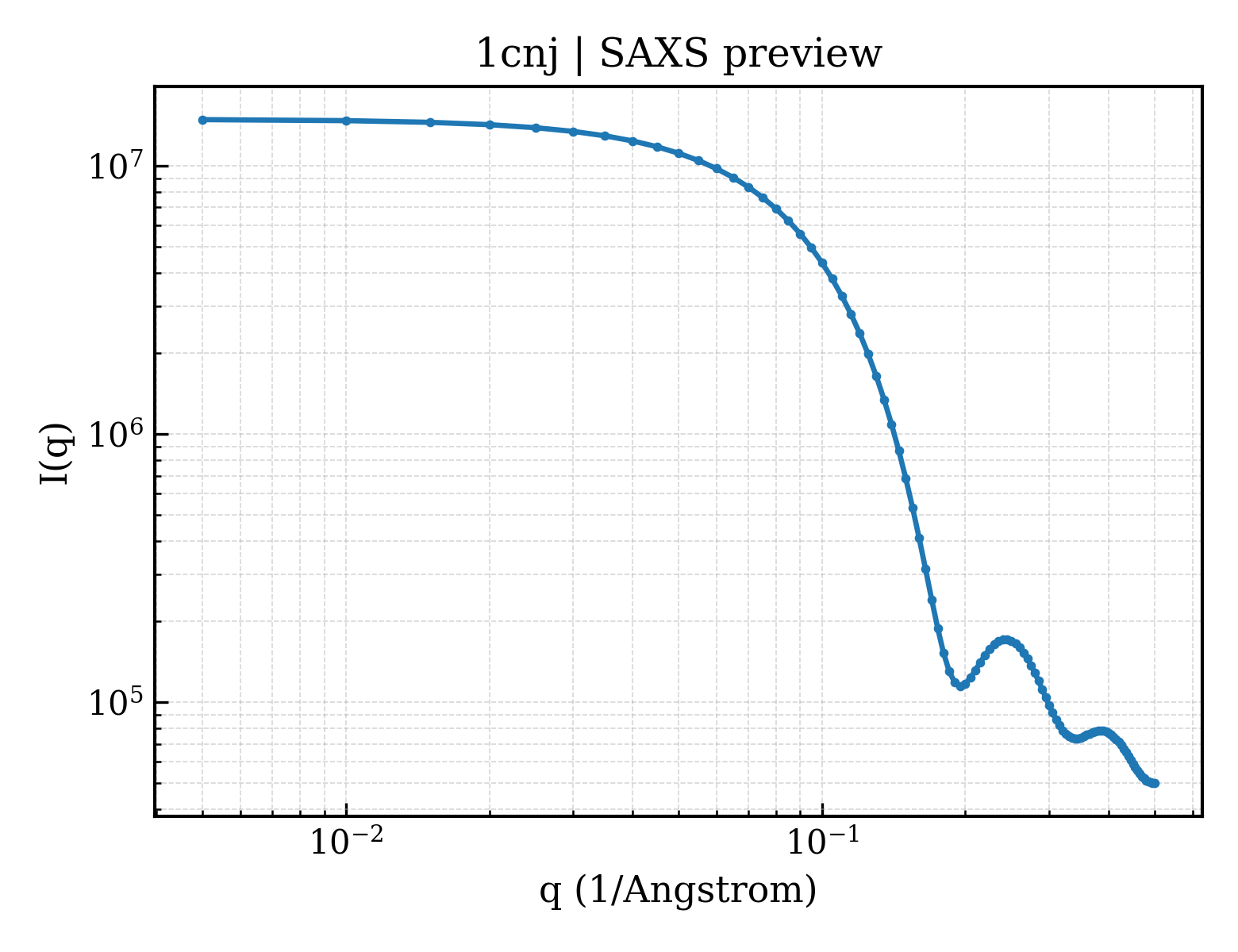

SAXS Profile

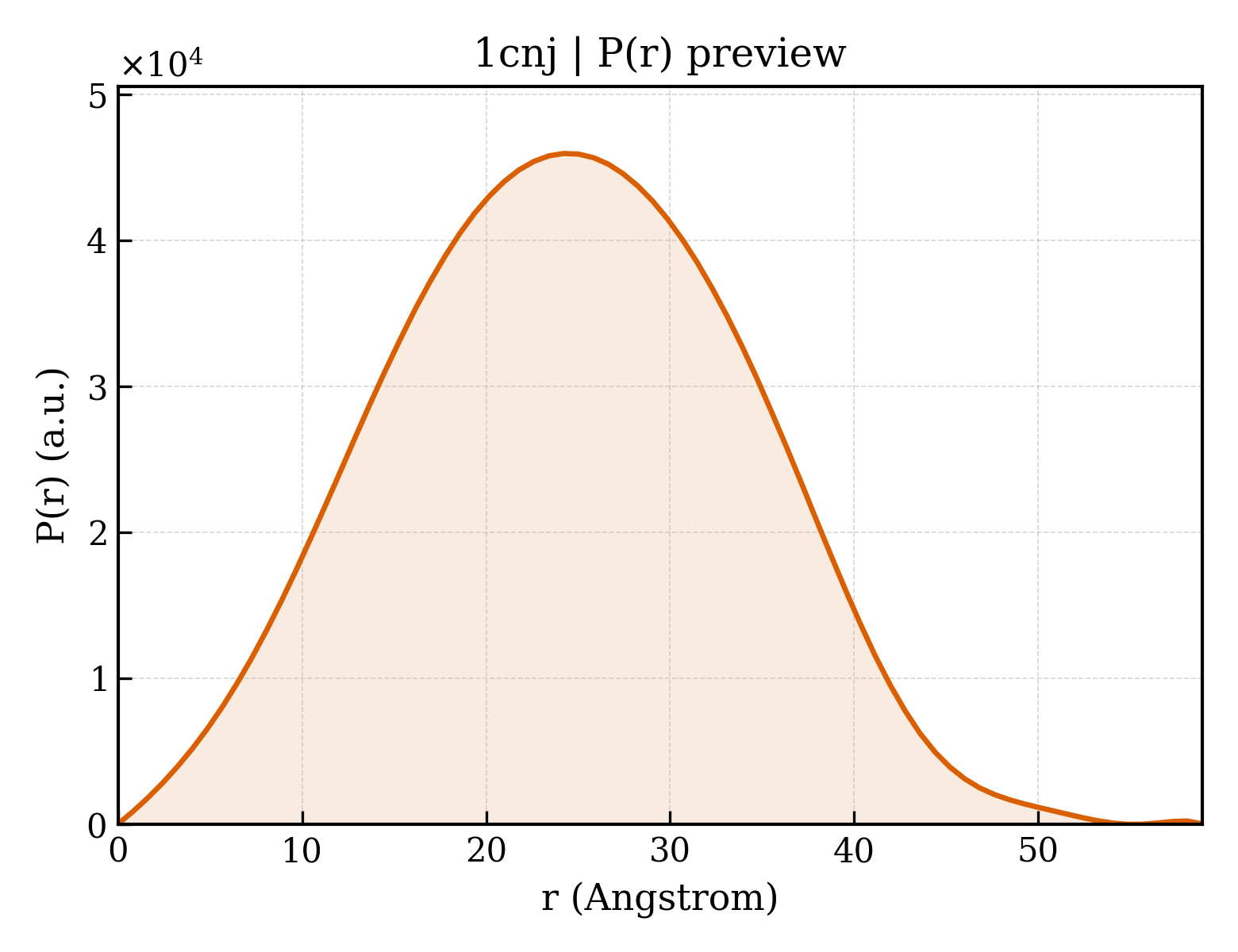

P(r) Distribution
1. Structure Basics
| entry_id | 1cnj |
| deposition_date | 1995-04-03 |
| title | X-RAY CRYSTALLOGRAPHIC STUDIES OF ENGINEERED HYDROGEN BOND NETWORKS IN A PROTEIN-ZINC BINDING SITE |
| keywords | LYASE (OXO-ACID); LYASE (OXO-ACID) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.71 Å |
| rg_electron | 17.44 Å |
| i0 | 14920700.00 |
| molecular_weight | 29125.0 kDa |
| excluded_volume | 36390 ų |
| envelope_volume | 40641 ų |
| shell_volume | 19023 ų |
| envelope_diameter | 60.9 Å |
| shell_rg | 24.09 Å |
| envelope_rg | 17.72 Å |
| shape_rg | 17.42 Å |
| total_rg | 18.51 Å |
| total_atoms | 2049 |
| n_residues | 257 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.9 Å |
| rg_real | 18.56 Å |
| rg_real_error | 0.25 Å |
| i0_real | 1.4920e+07 |
| i0_real_error | 1.8730e+05 |
| rg_reciprocal | 18.58 Å |
| i0_reciprocal | 14920000.0000 |
| total_estimate | 0.8142 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.2 Å |
| skewness | 0.051 |
| kurtosis | -0.450 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 2072000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000 |
