STRUCTURE OF PSEUDOMONAS NAUTICA CYTOCHROME C552, BY MAD METHOD

Method: X-RAY DIFFRACTION D_max: 88.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C552

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–84 Chain B； UniProt 1–84	Not recorded	HEC HEME C × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；pH 5.6	Resolution 2.20 Å R-free 0.208
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–84 Chain D； UniProt 1–84	Not recorded	HEC HEME C × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；pH 5.6	Resolution 2.20 Å R-free 0.208
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–84 Chain F； UniProt 1–84	Not recorded	HEC HEME C × 2 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；pH 5.6	Resolution 2.20 Å R-free 0.208
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–84 Chain H； UniProt 1–84	Not recorded	HEC HEME C × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；pH 5.6	Resolution 2.20 Å R-free 0.208

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	CY552_MARHY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–84； UniProt 1–84 Author chain B； PDBConstruct 1–84； UniProt 1–84 Author chain C； PDBConstruct 1–84； UniProt 1–84 Author chain D； PDBConstruct 1–84； UniProt 1–84 Author chain E； PDBConstruct 1–84； UniProt 1–84 Author chain F； PDBConstruct 1–84； UniProt 1–84 Author chain G； PDBConstruct 1–84； UniProt 1–84 Author chain H； PDBConstruct 1–84； UniProt 1–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

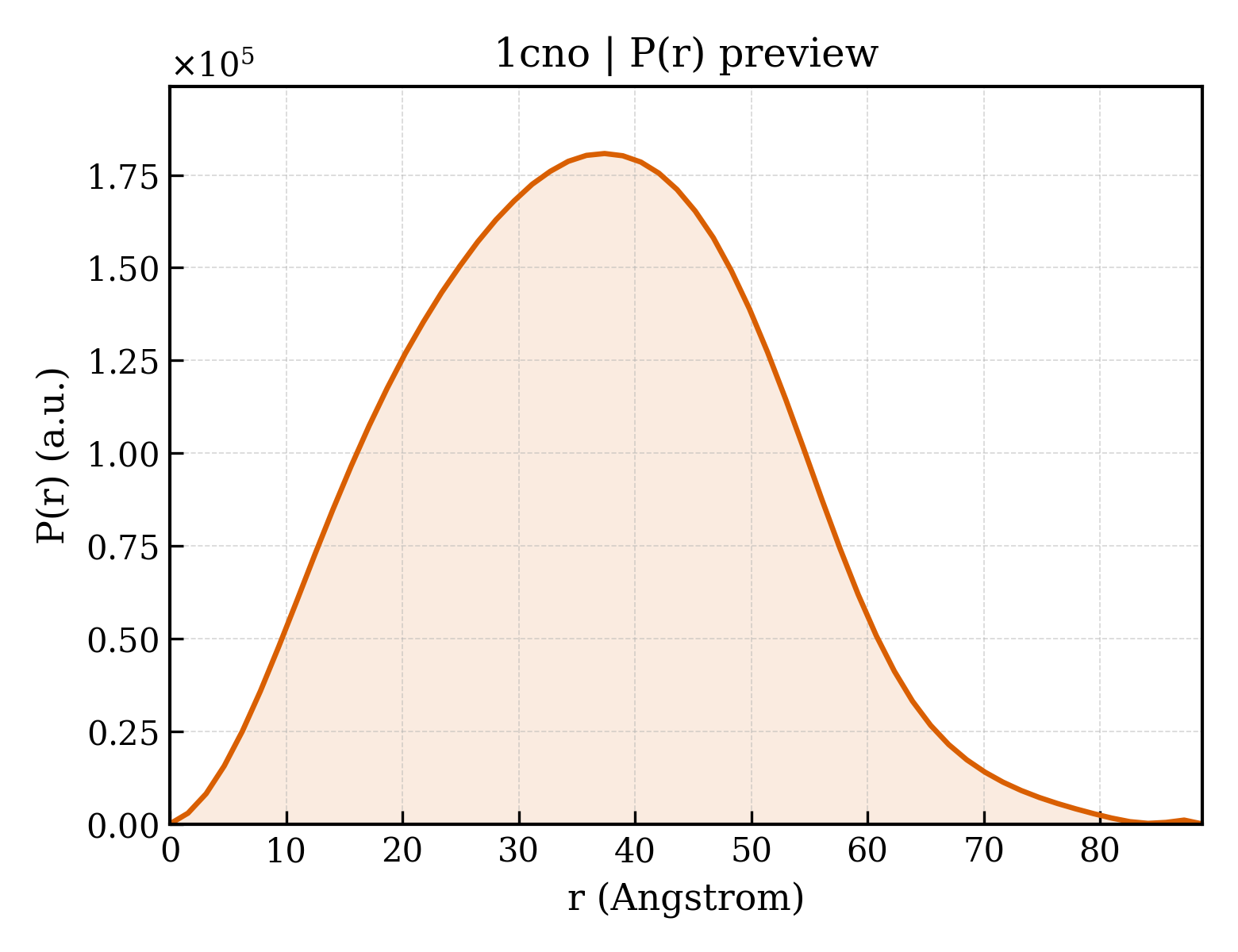

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cno
Deposition date deposition_date	1998-08-03
Structure title title	STRUCTURE OF PSEUDOMONAS NAUTICA CYTOCHROME C552, BY MAD METHOD
Keywords keywords	ELECTRON TRANSPORT, PSEUDOMONAS NAUTICA, X RAY STRUCTURE, MULTIWAVELENGTH ANOMALOUS DISPERSION, HEME, CYTOCHROME C; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.78 Å
Radius of gyration Rg (electron density) rg_electron	26.86 Å
Forward intensity I(0) i0	92746900.00
Molecular weight molecular_weight	74246.0 kDa
Excluded volume excluded_volume	92253 Å³
Envelope volume envelope_volume	110600 Å³
Hydration-shell volume shell_volume	33618 Å³
Envelope diameter envelope_diameter	95.0 Å
Shell Rg shell_rg	34.59 Å
Envelope Rg envelope_rg	26.82 Å
Shape Rg shape_rg	26.86 Å
Total Rg total_rg	27.64 Å
Total atoms total_atoms	5208
Residues n_residues	689
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	88.8 Å
Rg (real space) rg_real	27.62 Å
Rg uncertainty (real space) rg_real_error	0.60 Å
I(0) (real space) i0_real	9.2750e+07
I(0) uncertainty (real space) i0_real_error	1.3150e+06
Rg (reciprocal space) rg_reciprocal	27.67 Å
I(0) (reciprocal space) i0_reciprocal	92750000.0000
Solution quality estimate total_estimate	0.8900
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.4 Å
Skewness Skewness skewness	0.129
Kurtosis Kurtosis kurtosis	-0.455
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14970000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.898

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C552
Molecular weight formula_weight	8710.7 kDa
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	5936

AGDIEAGKAKAAVCAACHGQNGISQVPIYPNLAGQKEQYLVAALKAYKAGQRQGGQAPVMQGQATALSDADIANLAAYYASNPAAAA

Entity 2 Entity 2 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	728

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1cnoa_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnob_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnoc_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnod_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnoe_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnof_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnog_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

Domain ID domain_id	d1cnoh_
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.1 — monodomain cytochrome c

CATH v4.4 (8 domains)

Domain ID domain_id	1cnoA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoE00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

Domain ID domain_id	1cnoH00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	121.800 Å
Unit-cell length b length_b	121.800 Å
Unit-cell length c length_c	136.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 31 1 2
Space-group number int_tables_number	151
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1784
R_work r_work	0.1784
R_free r_free	0.2080
