1coh

STRUCTURE OF HAEMOGLOBIN IN THE DEOXY QUATERNARY STATE WITH LIGAND BOUND AT THE ALPHA HAEMS

Method: X-RAY DIFFRACTION D_max: 70.1 Å Quality: EXCELLENT

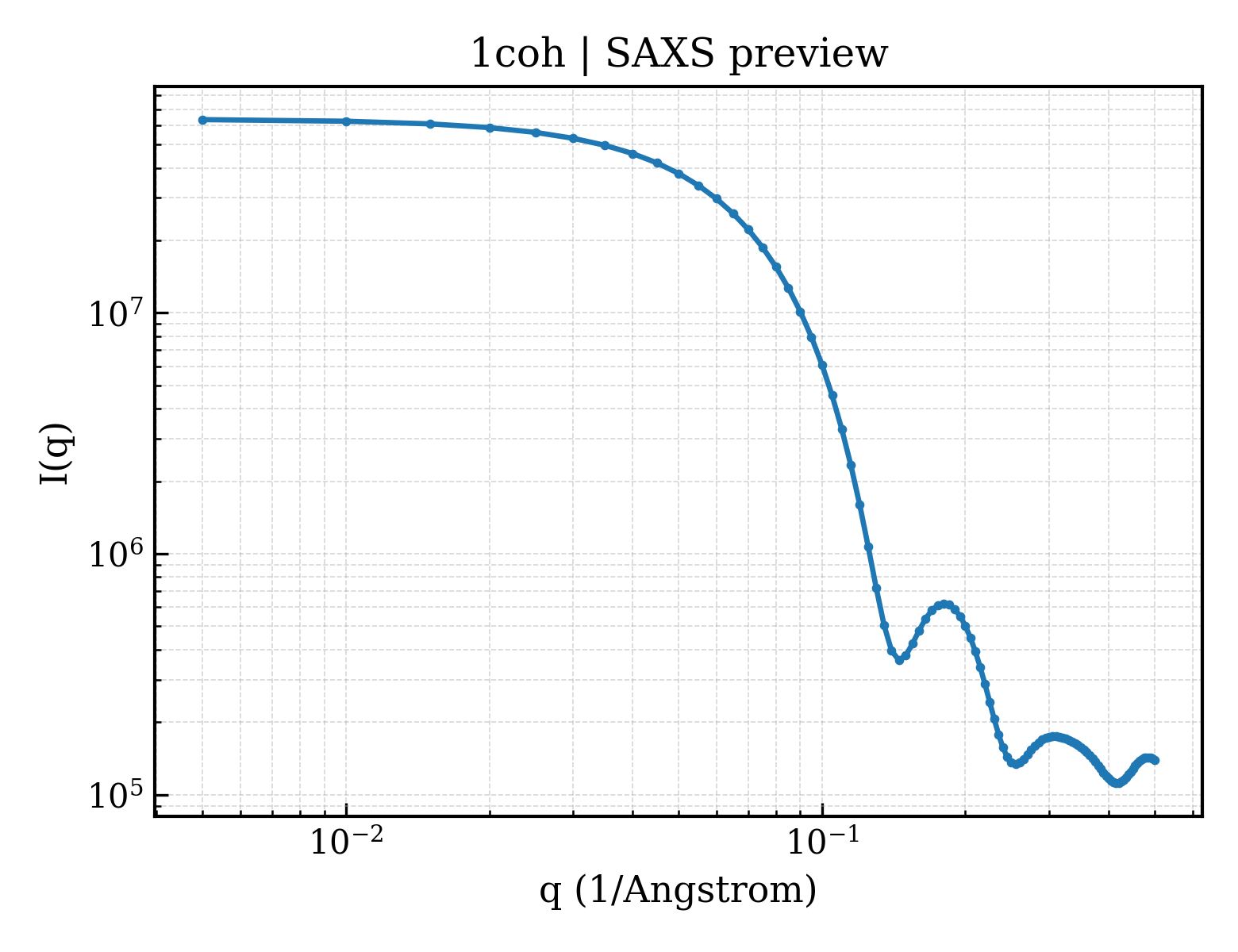

SAXS Profile

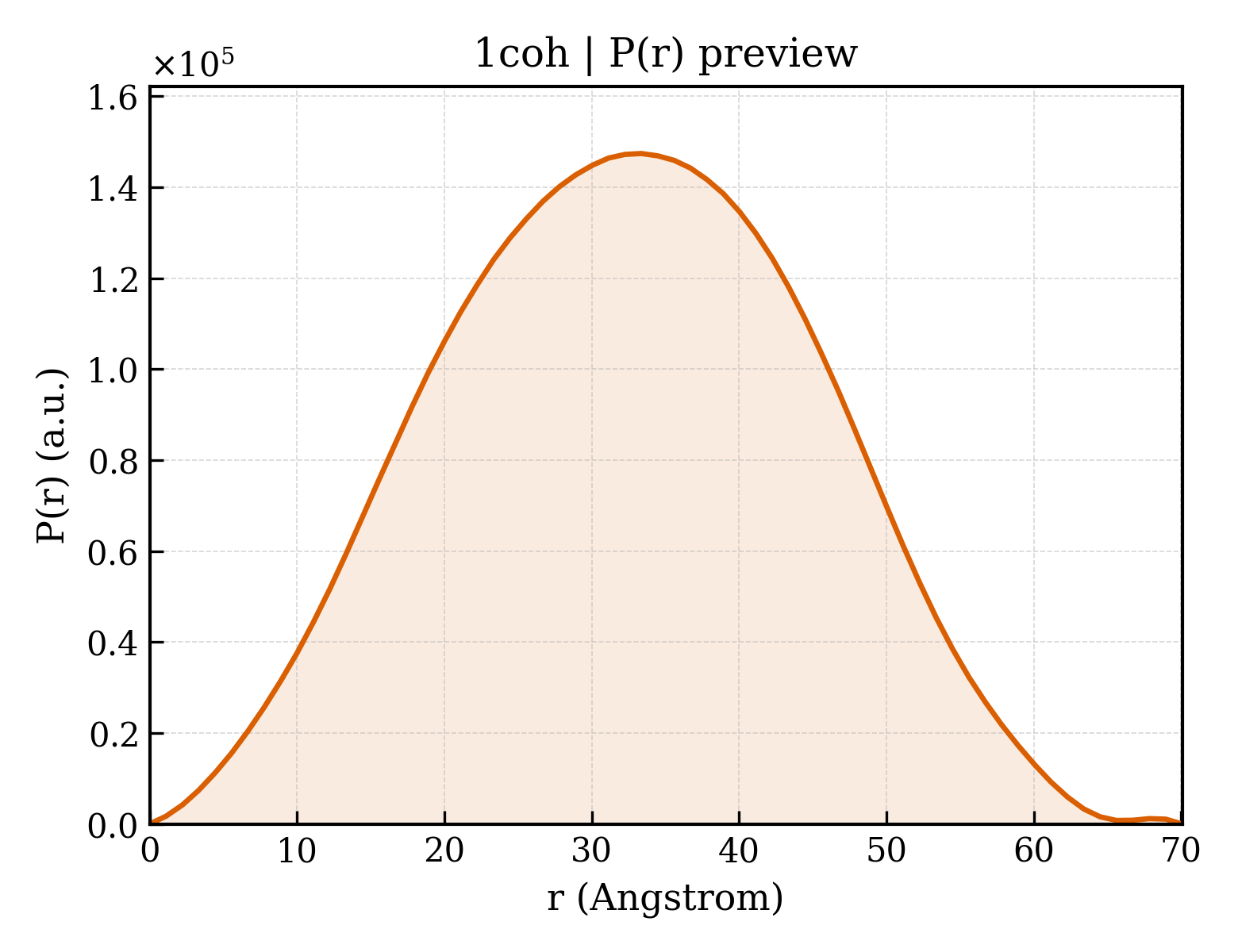

P(r) Distribution

▼

1. Structure Basics

entry_id	1coh
deposition_date	1989-01-13
title	STRUCTURE OF HAEMOGLOBIN IN THE DEOXY QUATERNARY STATE WITH LIGAND BOUND AT THE ALPHA HAEMS
keywords	OXYGEN TRANSPORT; OXYGEN TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.83 Å
rg_electron	23.53 Å
i0	63707600.00
molecular_weight	64518.0 kDa
excluded_volume	81605 Å³
envelope_volume	97346 Å³
shell_volume	33082 Å³
envelope_diameter	72.0 Å
shell_rg	31.61 Å
envelope_rg	23.28 Å
shape_rg	23.51 Å
total_rg	24.47 Å
total_atoms	4560
n_residues	574
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	70.1 Å
rg_real	24.58 Å
rg_real_error	0.35 Å
i0_real	6.3710e+07
i0_real_error	7.8900e+05
rg_reciprocal	24.64 Å
i0_reciprocal	63710000.0000
total_estimate	0.9143
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	33.4 Å
skewness	0.007
kurtosis	-0.572
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	15210000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.974; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.993

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	HEMOGLOBIN (FERROUS CARBONMONOXY) (ALPHA CHAIN)
formula_weight	15150.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	4757

VLSPADKTNVKAAWGKVGAHAGEYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGKKVADALTNAVAHVDDMPNALSALSDLHAHKLRVDPVNFKLLSHCLLVTLAAHLPAEFTPAVHASLDKFLASVSTVLTSKYR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606

Entity 2 polymer

description	HEMOGLOBIN (COBALTOUS DEOXY) (BETA CHAIN)
formula_weight	15890.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

VHLTPEEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLGAFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGNVLVCVLAHHFGKEFTPPVQAAYQKVVAGVANALAHKYH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	CARBON MONOXIDE
formula_weight	28.0 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	PROTOPORPHYRIN IX CONTAINING CO
formula_weight	619.6 kDa
src_method	syn
entity_count	2

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	197

▶

6. Citations (2)

▶

length_a	63.090 Å
length_b	83.060 Å
length_c	53.670 Å
angle_alpha	90.00 °
angle_beta	99.63 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.900 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

fit	/app/data/saxs_computation/co/1coh/1coh.fit
pddf	/app/data/pr_computation/co/1coh/1coh.pr.out
profile	/app/data/saxs_computation/co/1coh/1coh.dat
