1cos
CRYSTAL STRUCTURE OF A SYNTHETIC TRIPLE-STRANDED ALPHA-HELICAL BUNDLE

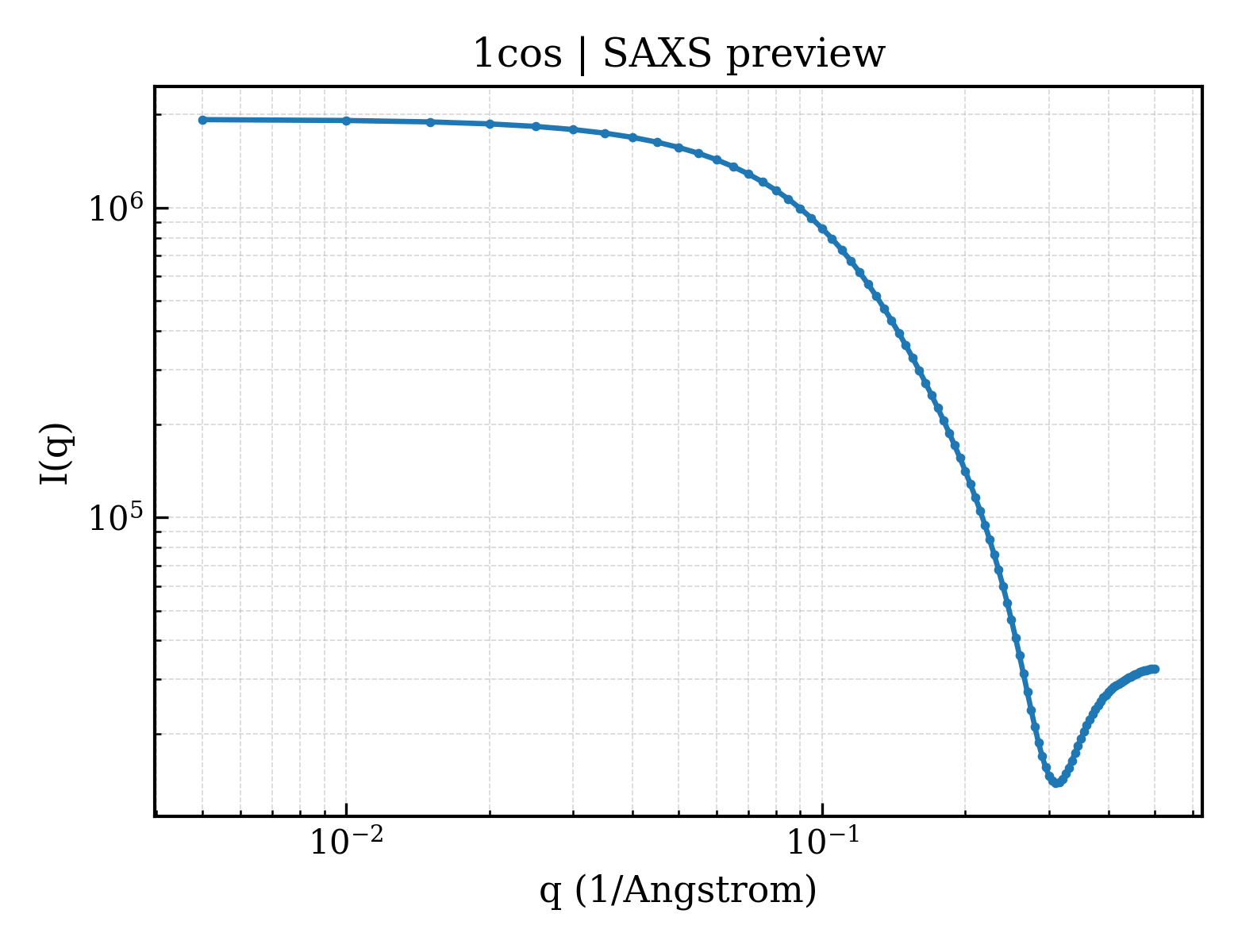

SAXS Profile

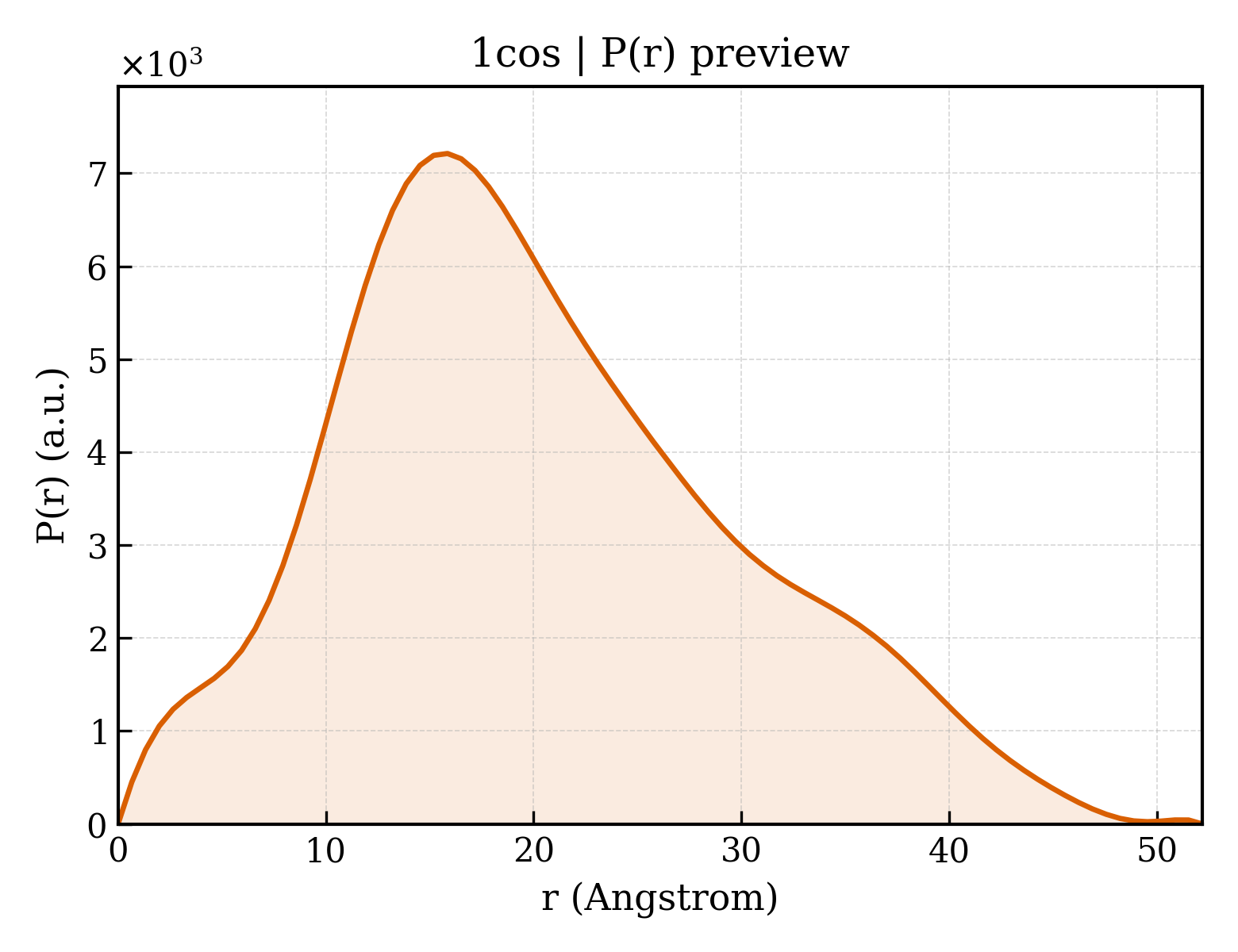

P(r) Distribution
1. Structure Basics
| entry_id | 1cos |
| deposition_date | 1993-01-22 |
| title | CRYSTAL STRUCTURE OF A SYNTHETIC TRIPLE-STRANDED ALPHA-HELICAL BUNDLE |
| keywords | ALPHA-HELICAL BUNDLE; ALPHA-HELICAL BUNDLE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.80 Å |
| rg_electron | 14.72 Å |
| i0 | 1930670.00 |
| molecular_weight | 10038.0 kDa |
| excluded_volume | 12834 ų |
| envelope_volume | 14854 ų |
| shell_volume | 9486 ų |
| envelope_diameter | 50.7 Å |
| shell_rg | 18.81 Å |
| envelope_rg | 14.95 Å |
| shape_rg | 14.77 Å |
| total_rg | 15.52 Å |
| total_atoms | 708 |
| n_residues | 87 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.2 Å |
| rg_real | 15.88 Å |
| rg_real_error | 0.31 Å |
| i0_real | 1.9310e+06 |
| i0_real_error | 2.1080e+04 |
| rg_reciprocal | 15.87 Å |
| i0_reciprocal | 1931000.0000 |
| total_estimate | 0.8283 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.9 Å |
| skewness | 0.450 |
| kurtosis | -0.303 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 397200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.613; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.985 |
