1cs7
SYNTHETIC DNA HAIRPIN WITH STILBENEDIETHER LINKER

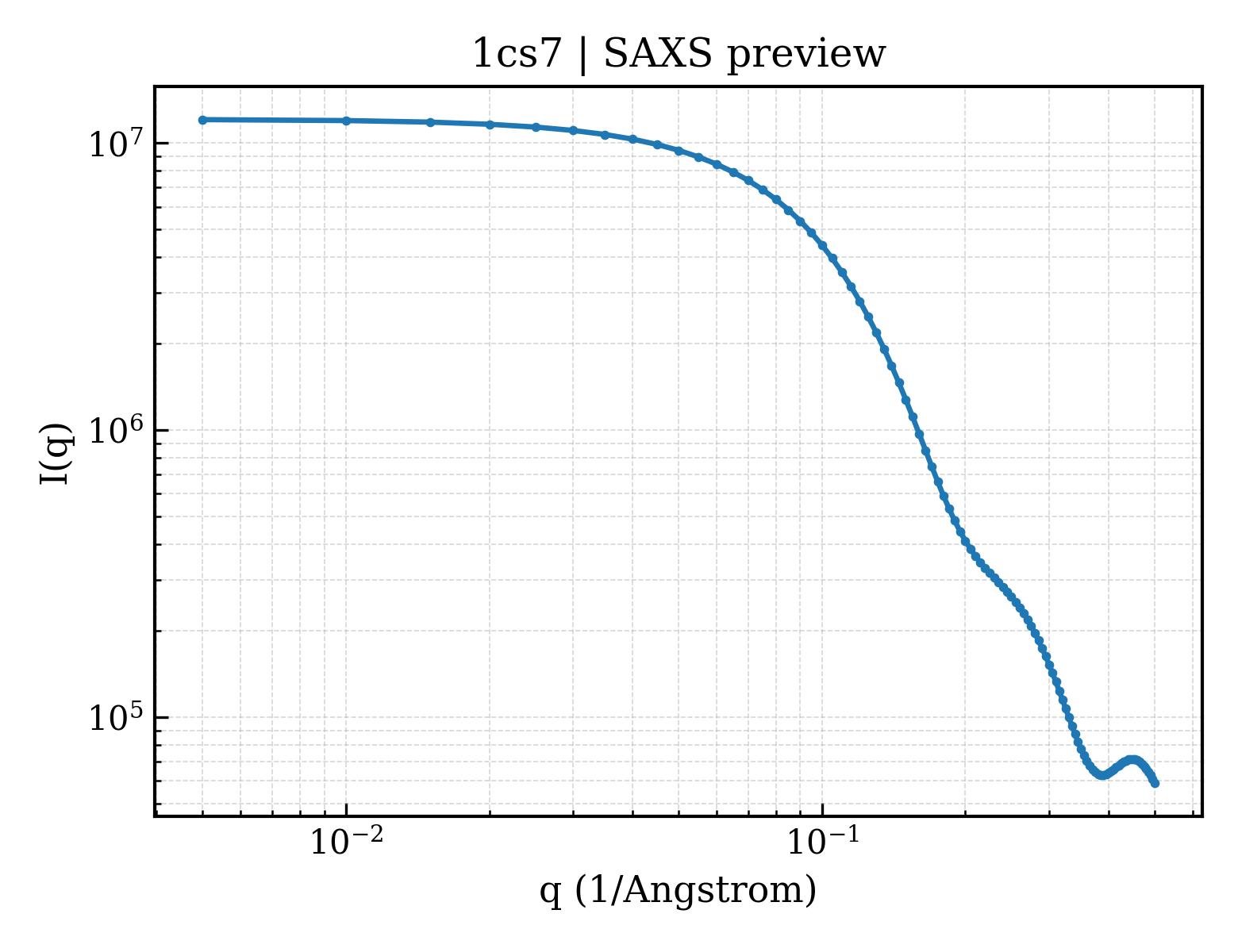

SAXS Profile

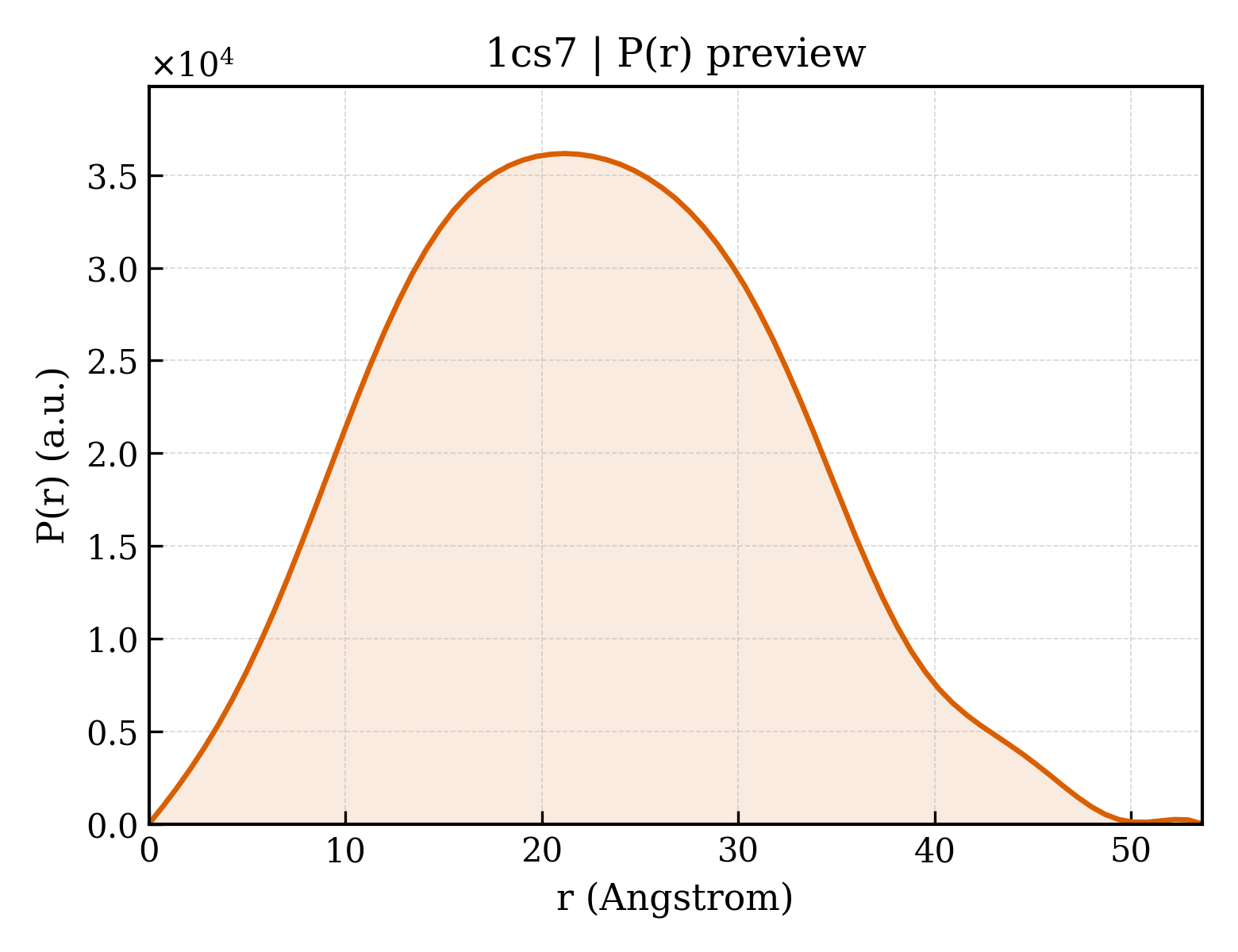

P(r) Distribution
1. Structure Basics
| entry_id | 1cs7 |
| deposition_date | 1999-08-17 |
| title | SYNTHETIC DNA HAIRPIN WITH STILBENEDIETHER LINKER |
| keywords | DNA HAIRPIN, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.29 Å |
| rg_electron | 16.36 Å |
| i0 | 12093400.00 |
| molecular_weight | 16722.0 kDa |
| excluded_volume | 16566 ų |
| envelope_volume | 22432 ų |
| shell_volume | 12427 ų |
| envelope_diameter | 54.0 Å |
| shell_rg | 20.87 Å |
| envelope_rg | 16.38 Å |
| shape_rg | 16.30 Å |
| total_rg | 16.96 Å |
| total_atoms | 1076 |
| n_residues | 44 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.6 Å |
| rg_real | 17.22 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.2090e+07 |
| i0_real_error | 1.2940e+05 |
| rg_reciprocal | 17.23 Å |
| i0_reciprocal | 12090000.0000 |
| total_estimate | 0.9106 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 21.2 Å |
| skewness | 0.173 |
| kurtosis | -0.497 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 964100.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.976 |
