1csa
THE MUTANT E.COLI F112W CYCLOPHILIN BINDS CYCLOSPORIN A IN NEARLY IDENTICAL CONFORMATION AS HUMAN CYCLOPHILIN

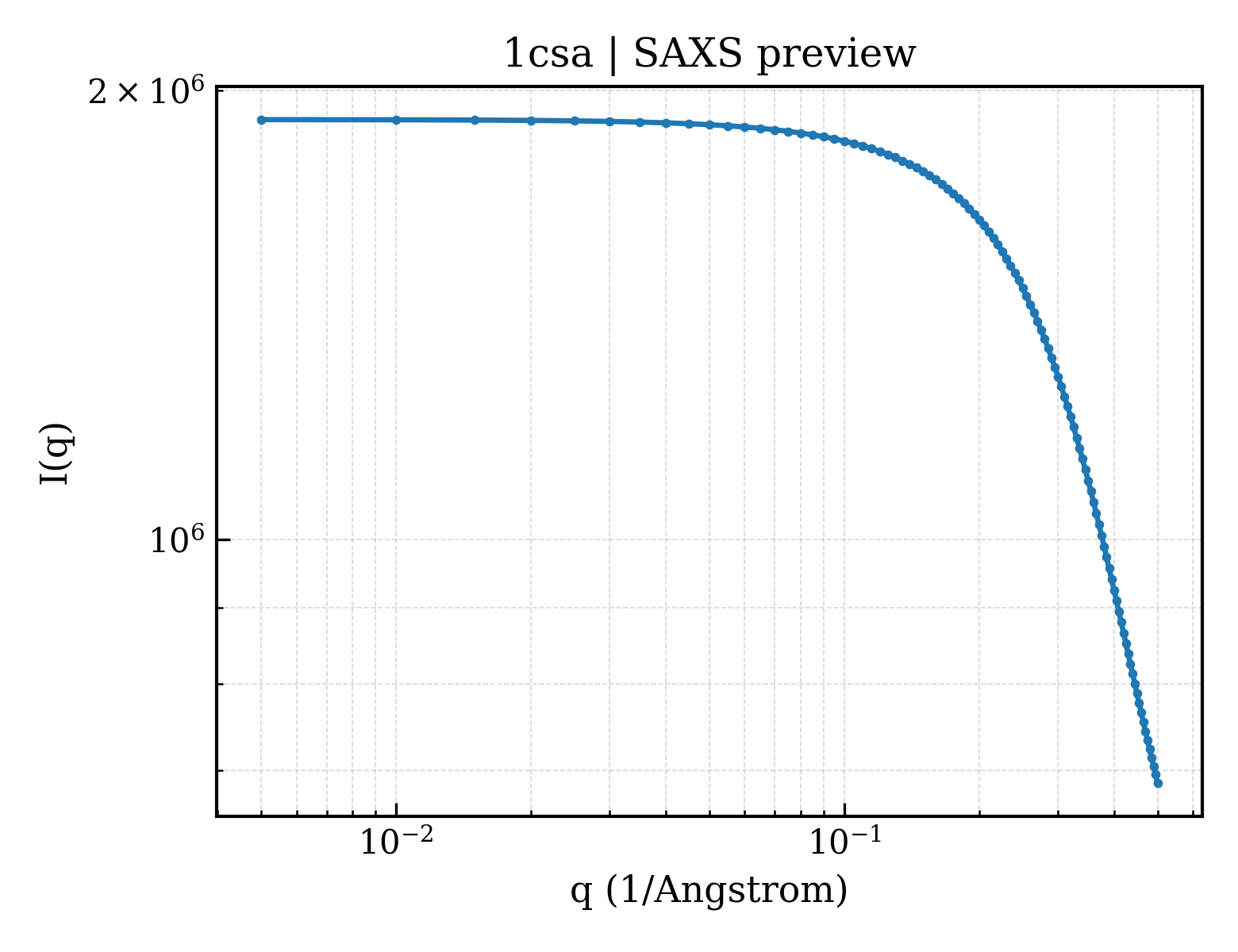

SAXS Profile

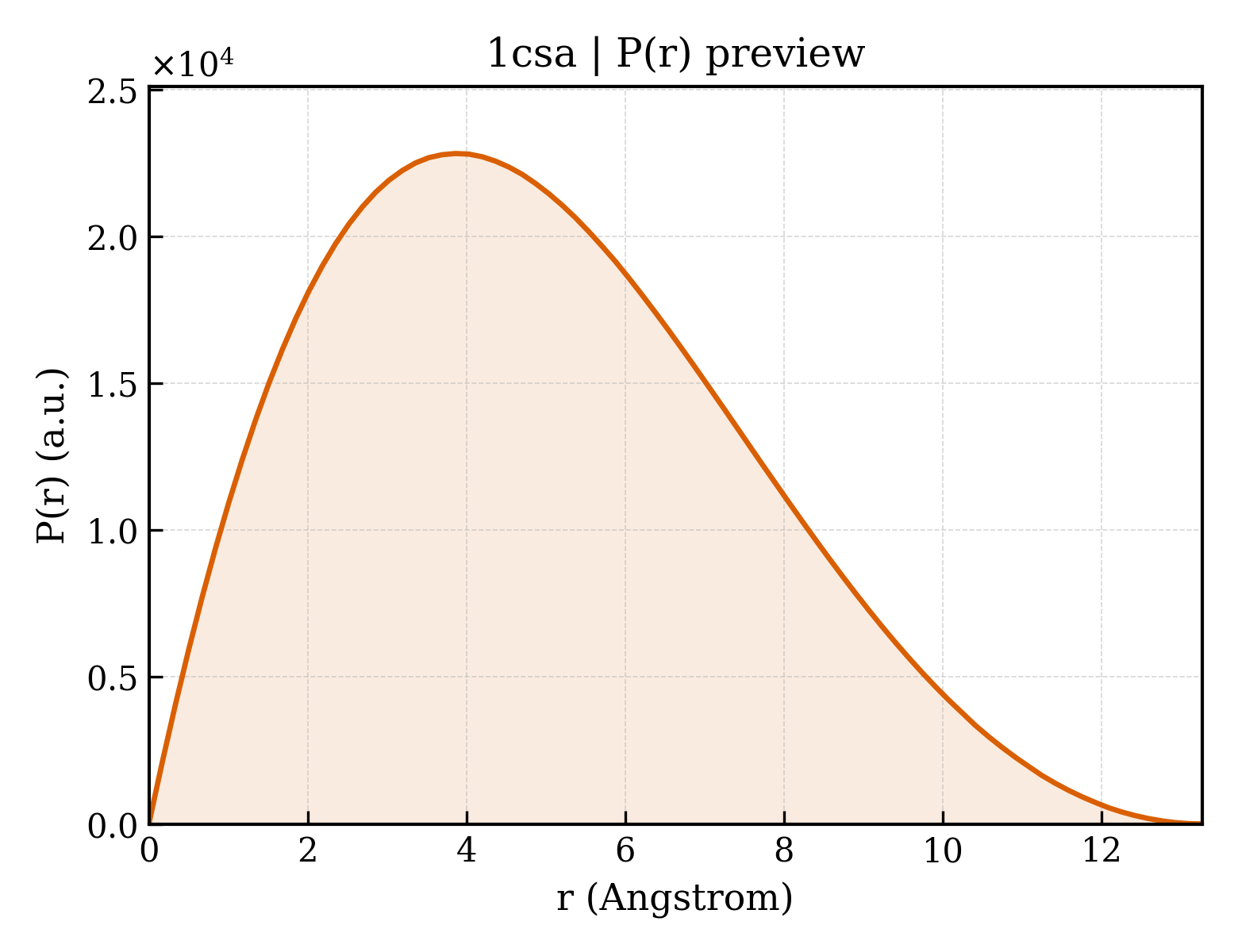

P(r) Distribution
1. Structure Basics
| entry_id | 1csa |
| deposition_date | 1992-02-24 |
| title | THE MUTANT E.COLI F112W CYCLOPHILIN BINDS CYCLOSPORIN A IN NEARLY IDENTICAL CONFORMATION AS HUMAN CYCLOPHILIN |
| keywords | IMMUNOSUPPRESSANT, CYCLOSPORIN A; IMMUNOSUPPRESSANT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 3.59 Å |
| rg_electron | 6.30 Å |
| i0 | 1912450.00 |
| molecular_weight | 21811.0 kDa |
| excluded_volume | 32024 ų |
| envelope_volume | 2153 ų |
| shell_volume | 3234 ų |
| envelope_diameter | 22.9 Å |
| shell_rg | 10.92 Å |
| envelope_rg | 7.15 Å |
| shape_rg | 6.26 Å |
| total_rg | 7.12 Å |
| total_atoms | 3528 |
| n_residues | 36 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 13.3 Å |
| rg_real | 3.89 Å |
| rg_real_error | 0.03 Å |
| i0_real | 1.9590e+06 |
| i0_real_error | 1.1570e+04 |
| rg_reciprocal | 3.05 Å |
| i0_reciprocal | 1912000.0000 |
| total_estimate | 0.6852 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 3.9 Å |
| skewness | 0.397 |
| kurtosis | -0.476 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 2.3490 |
| highest_alpha | 77.7900 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.886; Stabil: 0.965; Sysdev: 0.000; Positv: 1.000; Valcen: 0.510; Smooth: 0.861 |
