1csl
CRYSTAL STRUCTURE OF THE RRE HIGH AFFINITY SITE

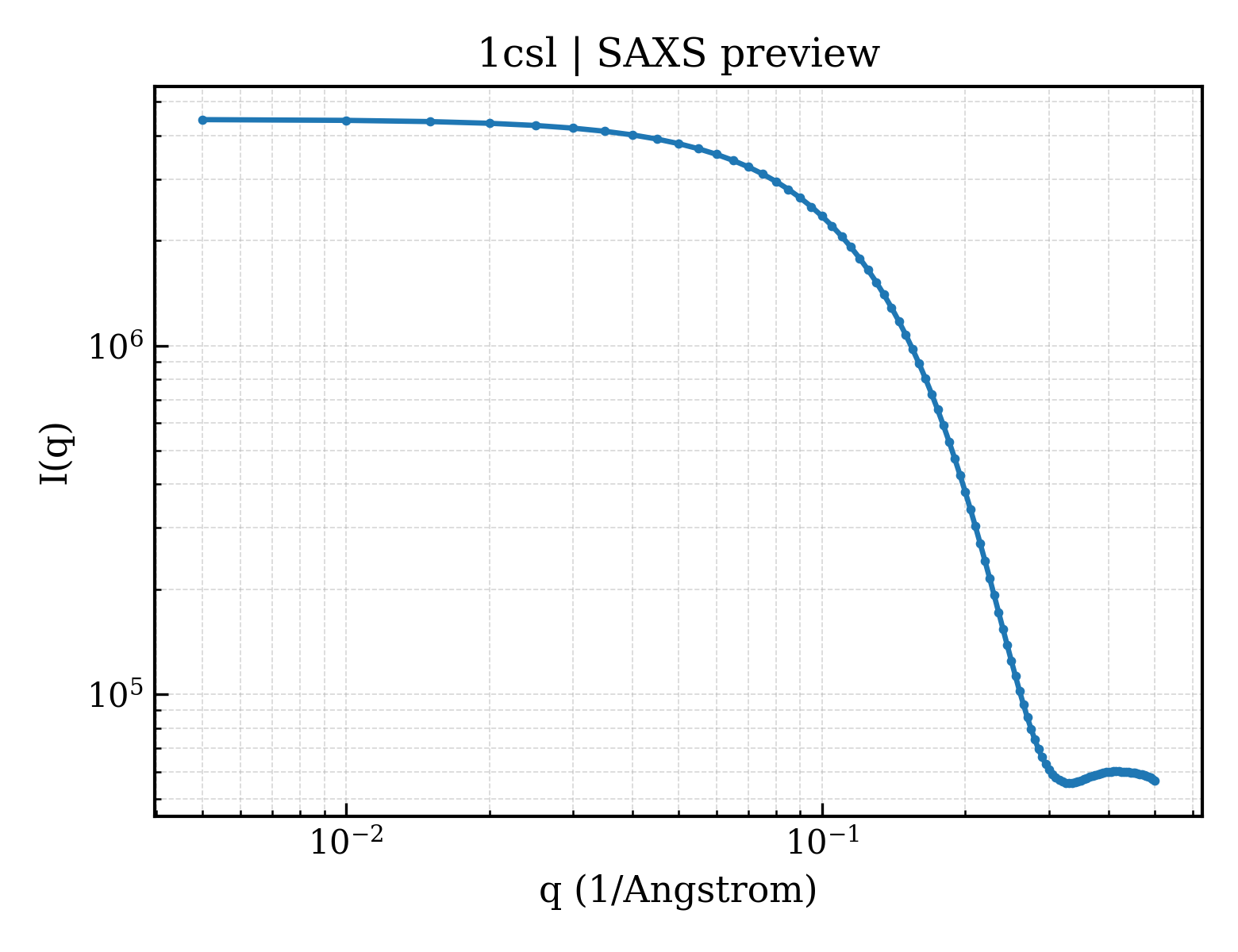

SAXS Profile

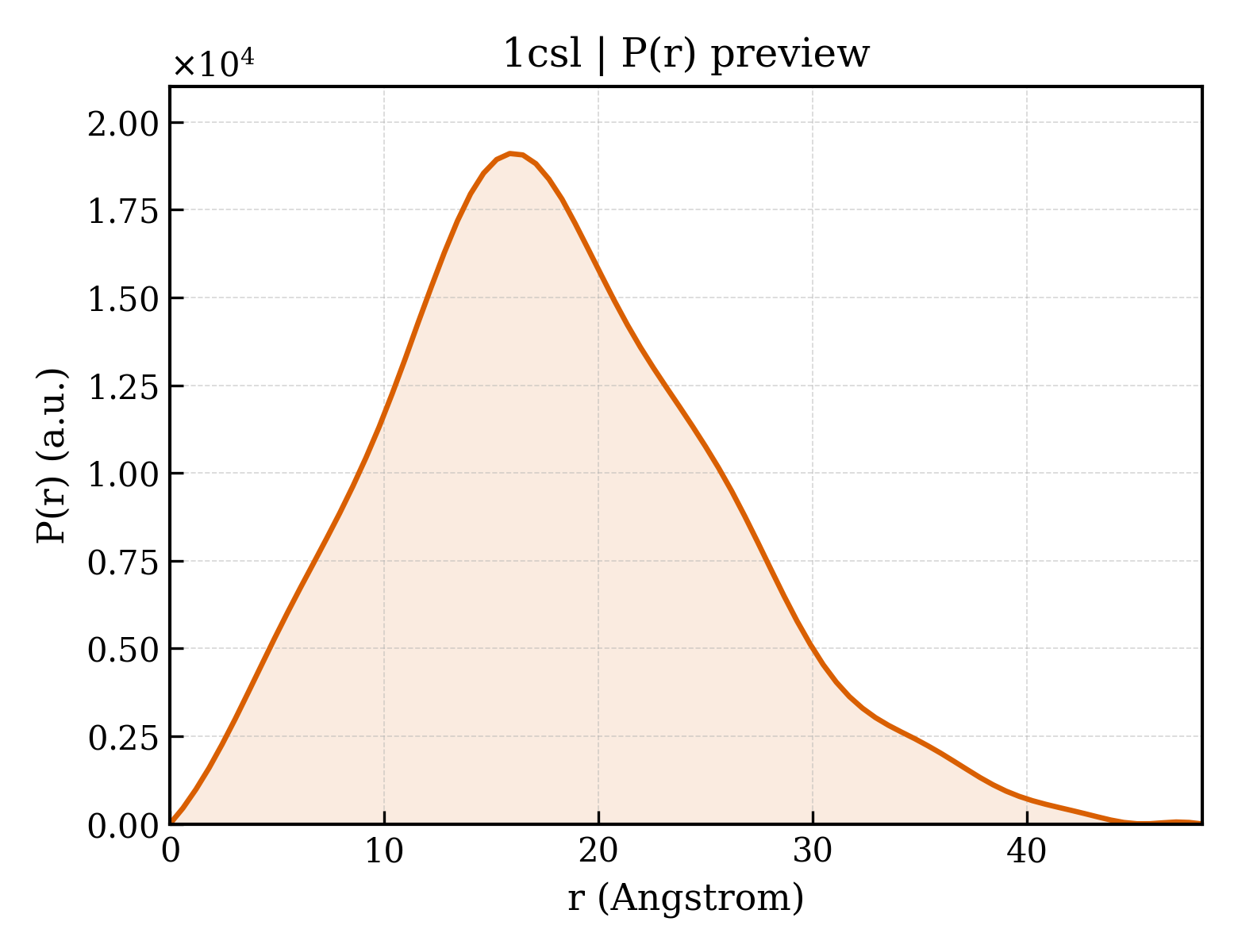

P(r) Distribution
1. Structure Basics
| entry_id | 1csl |
| deposition_date | 1999-08-18 |
| title | CRYSTAL STRUCTURE OF THE RRE HIGH AFFINITY SITE |
| keywords | RRE HIGH AFFINITY SITE, HIV-1, RNA; RNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.86 Å |
| rg_electron | 13.36 Å |
| i0 | 4451000.00 |
| molecular_weight | 8980.0 kDa |
| excluded_volume | 8417 ų |
| envelope_volume | 11977 ų |
| shell_volume | 8410 ų |
| envelope_diameter | 46.9 Å |
| shell_rg | 17.72 Å |
| envelope_rg | 13.45 Å |
| shape_rg | 13.25 Å |
| total_rg | 14.13 Å |
| total_atoms | 595 |
| n_residues | 28 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.2 Å |
| rg_real | 13.86 Å |
| rg_real_error | 0.49 Å |
| i0_real | 4.4510e+06 |
| i0_real_error | 5.8530e+04 |
| rg_reciprocal | 13.86 Å |
| i0_reciprocal | 4451000.0000 |
| total_estimate | 0.8466 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.9 Å |
| skewness | 0.389 |
| kurtosis | -0.073 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 231900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.682; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.992 |
