1cvc
REDESIGNING THE ZINC BINDING SITE OF HUMAN CARBONIC ANHYDRASE II: STRUCTURE OF A HIS2ASP-ZN2+ METAL COORDINATION POLYHEDRON
SAXS Profile

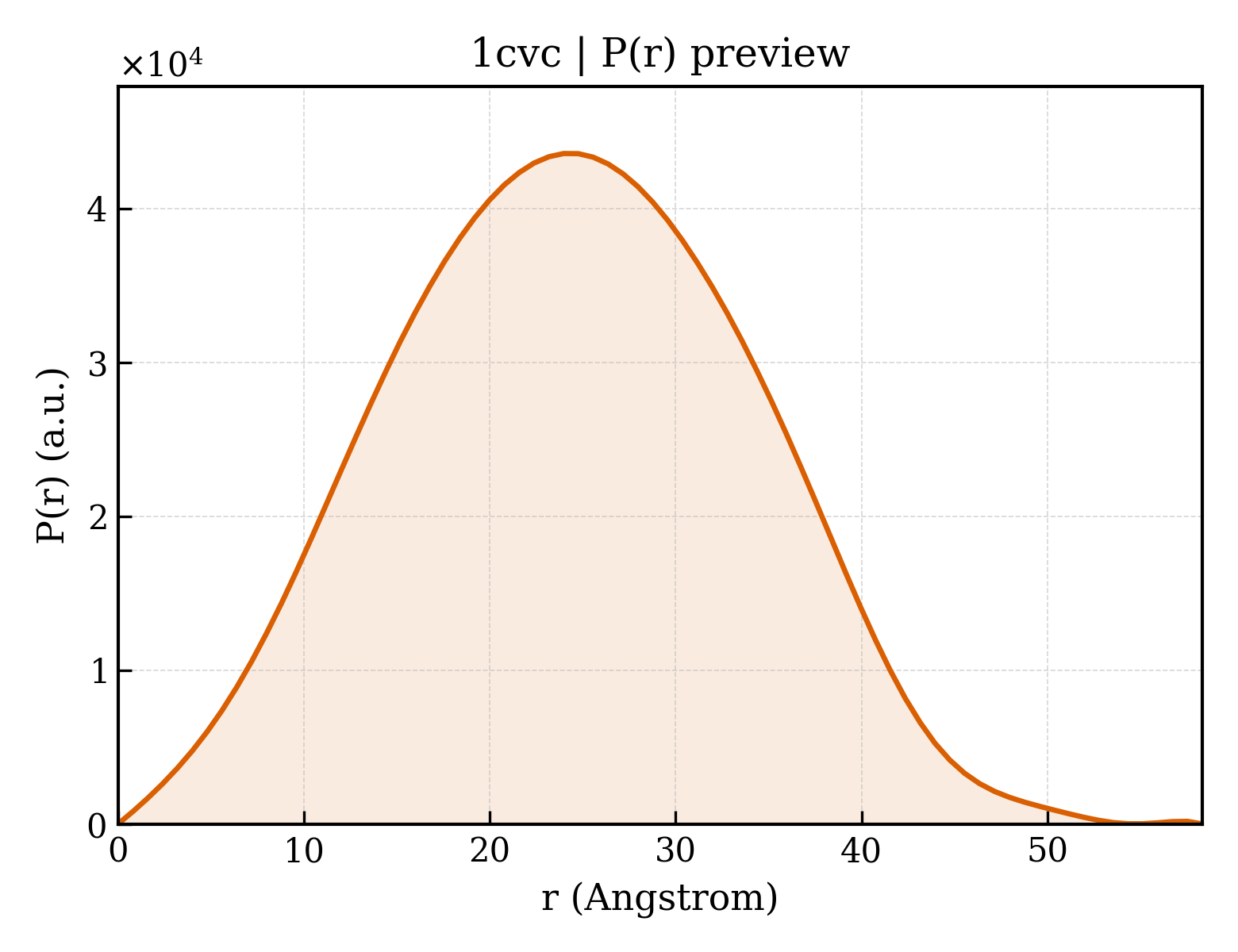

P(r) Distribution
1. Structure Basics
| entry_id | 1cvc |
| deposition_date | 1993-09-22 |
| title | REDESIGNING THE ZINC BINDING SITE OF HUMAN CARBONIC ANHYDRASE II: STRUCTURE OF A HIS2ASP-ZN2+ METAL COORDINATION POLYHEDRON |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.67 Å |
| rg_electron | 17.36 Å |
| i0 | 14108400.00 |
| molecular_weight | 28649.0 kDa |
| excluded_volume | 36005 ų |
| envelope_volume | 40247 ų |
| shell_volume | 18924 ų |
| envelope_diameter | 59.4 Å |
| shell_rg | 24.03 Å |
| envelope_rg | 17.63 Å |
| shape_rg | 17.33 Å |
| total_rg | 18.44 Å |
| total_atoms | 2028 |
| n_residues | 255 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.3 Å |
| rg_real | 18.52 Å |
| rg_real_error | 0.29 Å |
| i0_real | 1.4110e+07 |
| i0_real_error | 1.5650e+05 |
| rg_reciprocal | 18.54 Å |
| i0_reciprocal | 14110000.0000 |
| total_estimate | 0.8928 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.0 Å |
| skewness | 0.054 |
| kurtosis | -0.465 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2225000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.977 |
