STRUCTURAL CONSEQUENCES OF REDESIGNING A PROTEIN-ZINC BINDING SITE

Method: X-RAY DIFFRACTION D_max: 58.4 Å Quality: GOOD

SAXS Profile

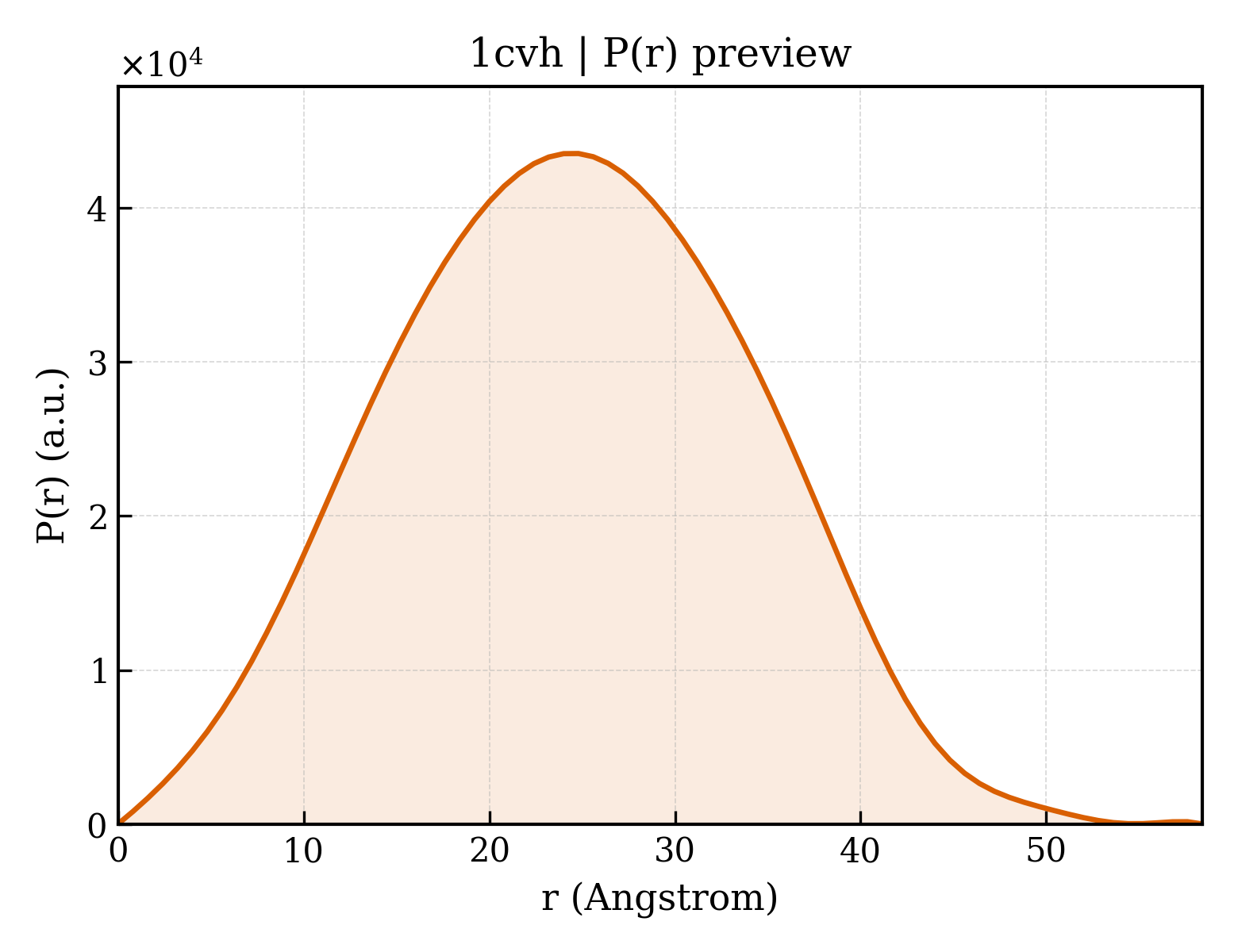

P(r) Distribution

▼

1. Structure Basics

entry_id	1cvh
deposition_date	1994-11-16
title	STRUCTURAL CONSEQUENCES OF REDESIGNING A PROTEIN-ZINC BINDING SITE
keywords	HYDRO-LYASE; HYDRO-LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.69 Å
rg_electron	17.37 Å
i0	14109100.00
molecular_weight	28638.0 kDa
excluded_volume	35994 Å³
envelope_volume	40273 Å³
shell_volume	18934 Å³
envelope_diameter	59.2 Å
shell_rg	24.05 Å
envelope_rg	17.62 Å
shape_rg	17.35 Å
total_rg	18.44 Å
total_atoms	2026
n_residues	255
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	58.4 Å
rg_real	18.54 Å
rg_real_error	0.29 Å
i0_real	1.4110e+07
i0_real_error	1.6990e+05
rg_reciprocal	18.56 Å
i0_reciprocal	14110000.0000
total_estimate	0.8934
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.8 Å
skewness	0.051
kurtosis	-0.469
angular_range	— – 0.4250 Å⁻¹
current_alpha	0.0000
highest_alpha	2243000.0000
n_real_points	74
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.986

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

length_a	42.700 Å
length_b	41.700 Å
length_c	73.000 Å
angle_alpha	90.00 °
angle_beta	104.60 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.300 Å
resolution_low	7.000 Å
r_factor	0.1820
r_work	—
r_free	—

description	CARBONIC ANHYDRASE II
formula_weight	28630.3 kDa
ec_number	4.2.1.1
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	2137

STRUCTURAL CONSEQUENCES OF REDESIGNING A PROTEIN-ZINC BINDING SITE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (3)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

Entity 3 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	111

fit	/app/data/saxs_computation/cv/1cvh/1cvh.fit
pddf	/app/data/pr_computation/cv/1cvh/1cvh.pr.out
profile	/app/data/saxs_computation/cv/1cvh/1cvh.dat

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
