1cw9
DNA DECAMER WITH AN ENGINEERED CROSSLINK IN THE MINOR GROOVE

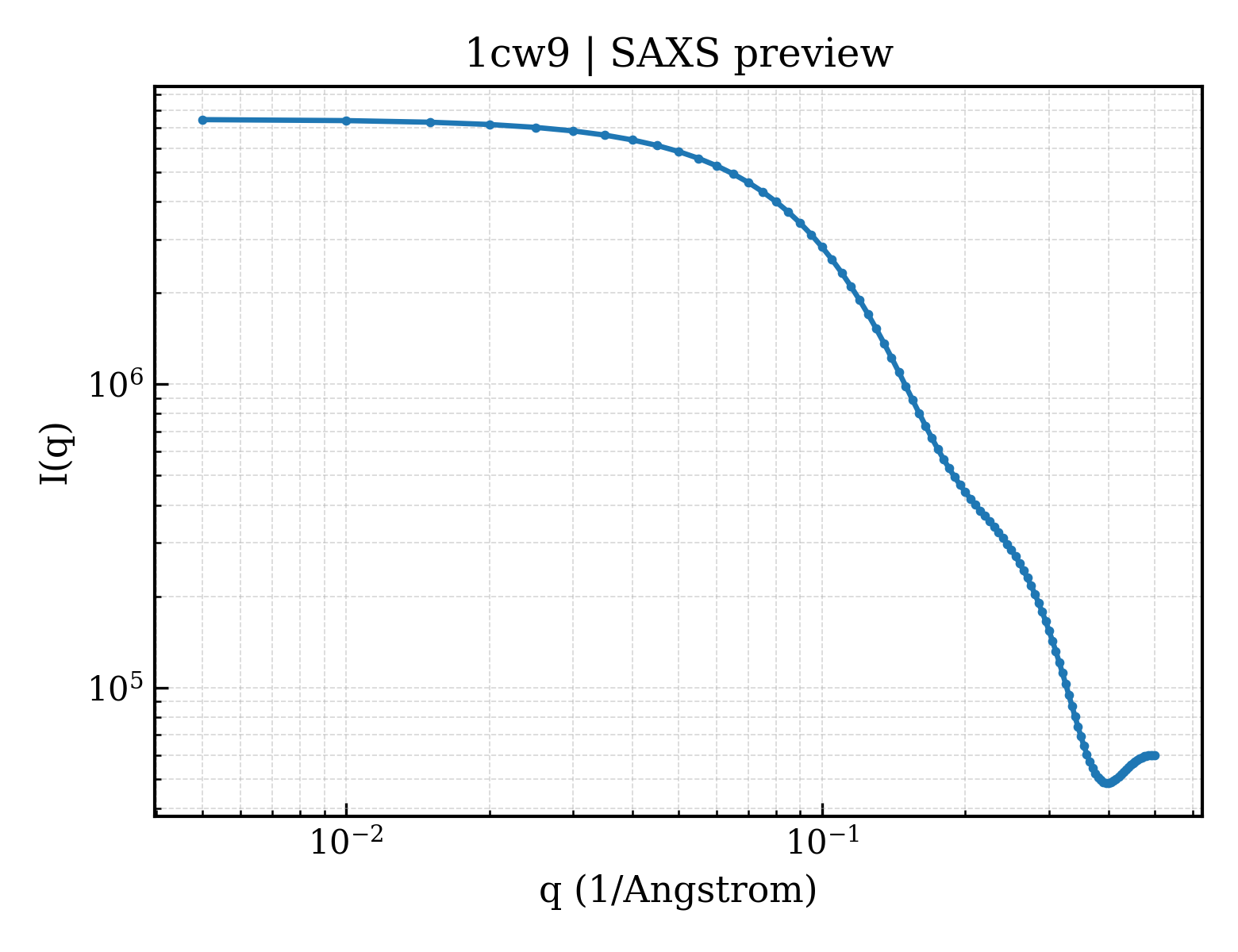

SAXS Profile

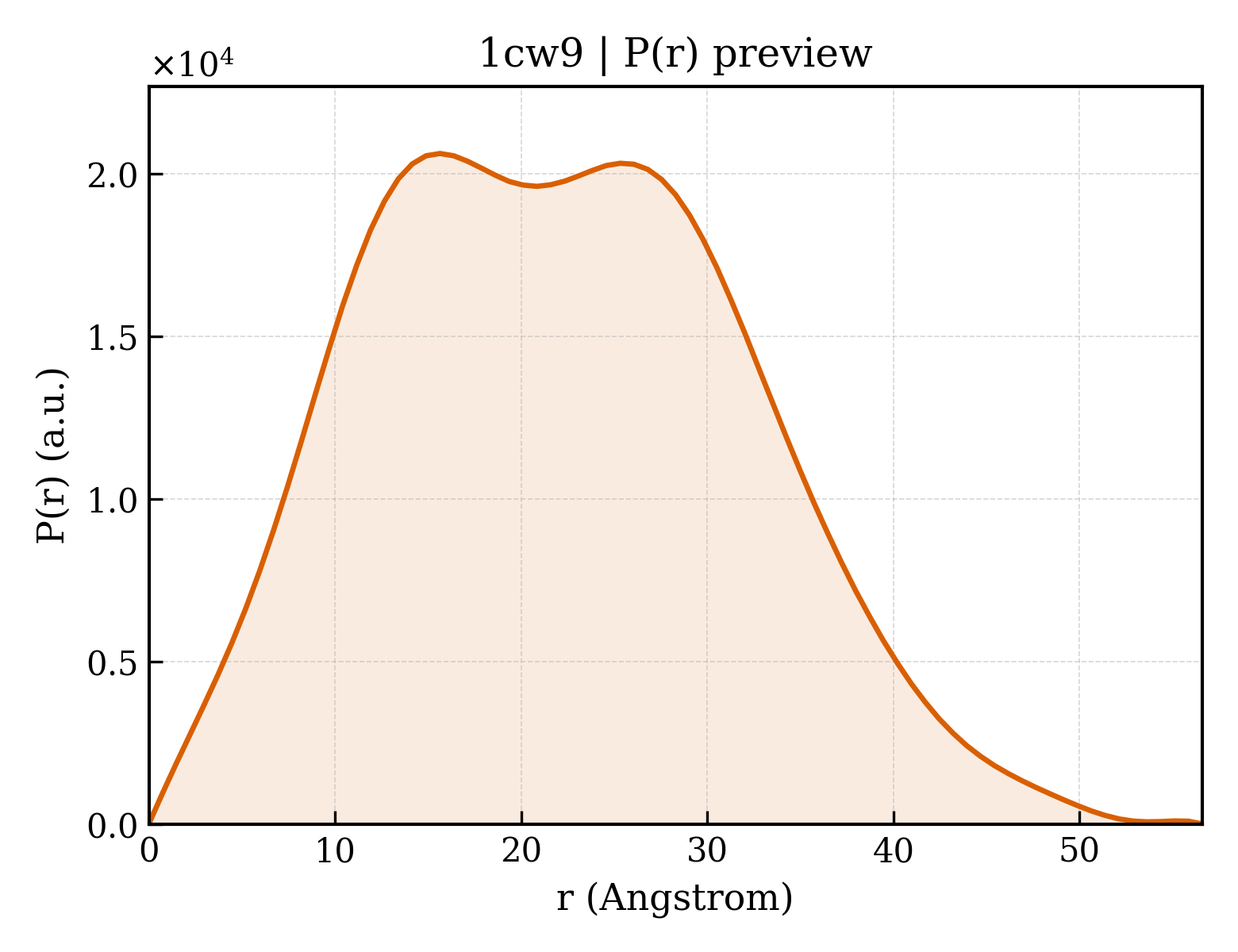

P(r) Distribution
1. Structure Basics
| entry_id | 1cw9 |
| deposition_date | 1999-08-26 |
| title | DNA DECAMER WITH AN ENGINEERED CROSSLINK IN THE MINOR GROOVE |
| keywords | CROSSLINKED DOUBLE-HELICAL DNA, BASE-PAIR OPENING, PARTIAL BASE FLIPPING., DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.13 Å |
| rg_electron | 16.65 Å |
| i0 | 7466580.00 |
| molecular_weight | 12429.0 kDa |
| excluded_volume | 12055 ų |
| envelope_volume | 17472 ų |
| shell_volume | 9653 ų |
| envelope_diameter | 56.3 Å |
| shell_rg | 20.70 Å |
| envelope_rg | 16.41 Å |
| shape_rg | 16.62 Å |
| total_rg | 17.19 Å |
| total_atoms | 821 |
| n_residues | 36 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.6 Å |
| rg_real | 17.13 Å |
| rg_real_error | 0.31 Å |
| i0_real | 7.4670e+06 |
| i0_real_error | 8.8830e+04 |
| rg_reciprocal | 17.13 Å |
| i0_reciprocal | 7467000.0000 |
| total_estimate | 0.8886 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 15.6 Å |
| skewness | 0.230 |
| kurtosis | -0.515 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 580700.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.909; Smooth: 0.998 |
