1cwz
Solution structure of the analogue retro-inverso (MA-S)REGRIGGC in contact with the monoclonal antibody MAB 4X11, NMR, 7 structures

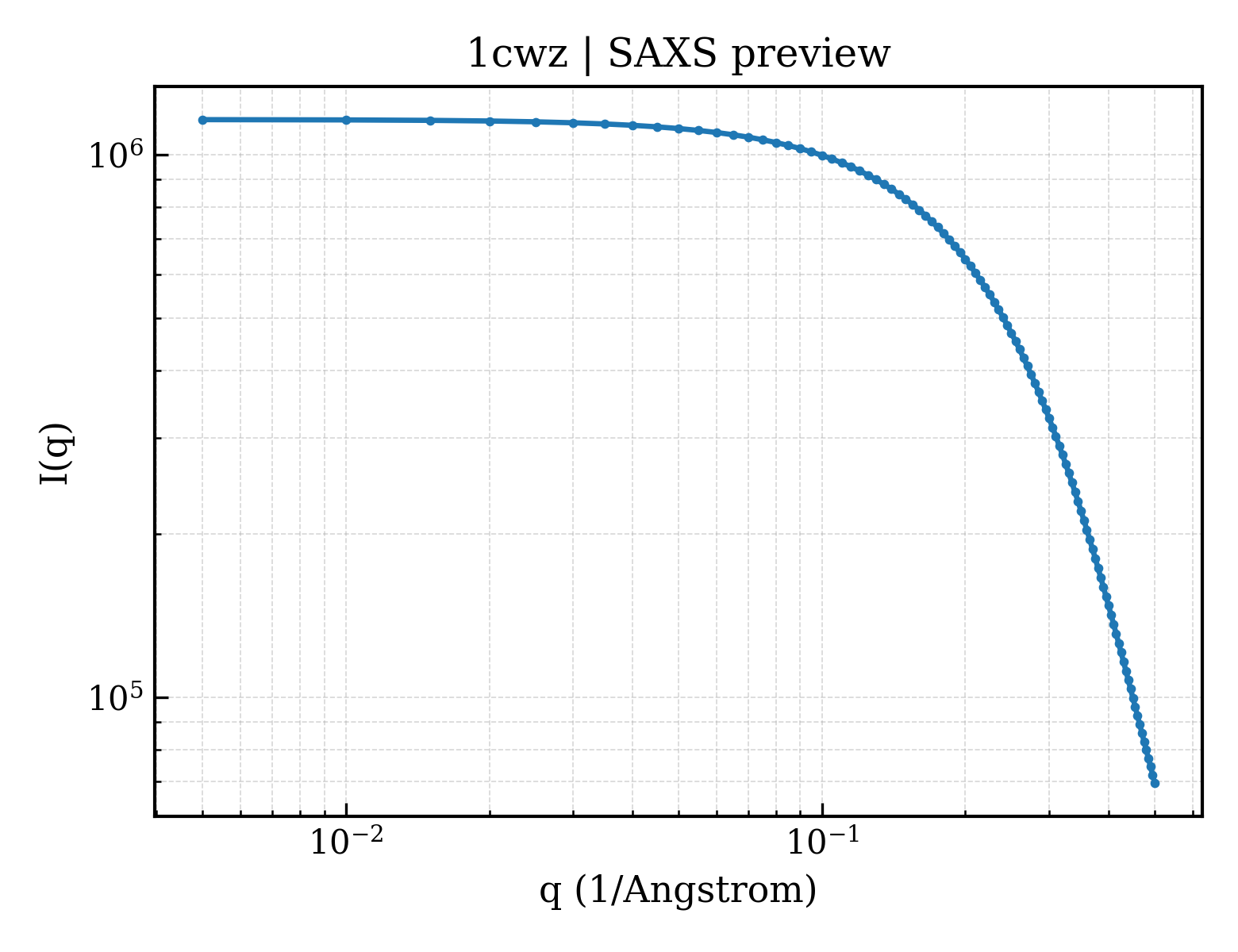

SAXS Profile

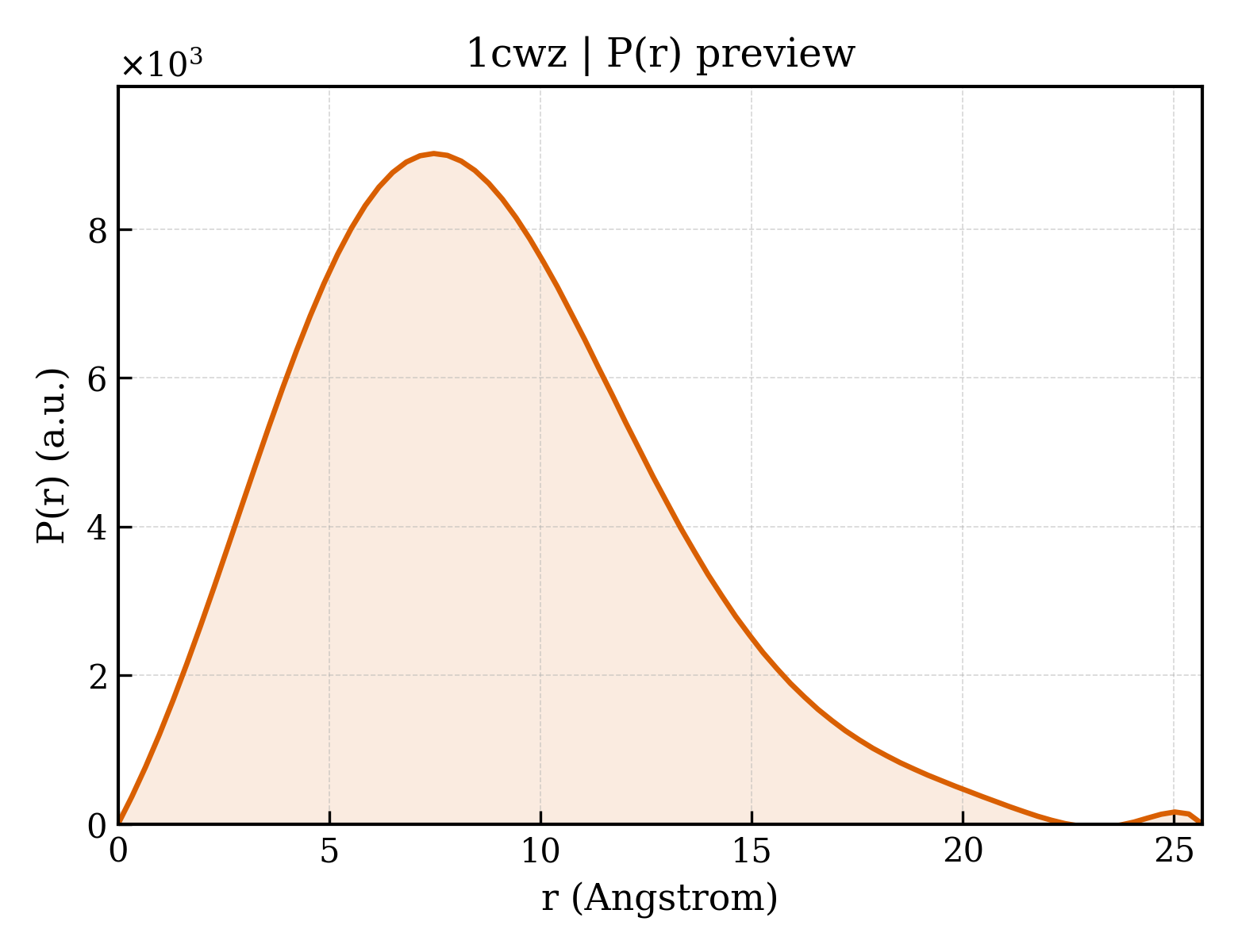

P(r) Distribution
1. Structure Basics
| entry_id | 1cwz |
| deposition_date | 1999-08-27 |
| title | Solution structure of the analogue retro-inverso (MA-S)REGRIGGC in contact with the monoclonal antibody MAB 4X11, NMR, 7 structures |
| keywords | PSEUDOMIMETIC, SYNTHETIC PEPTIDE, RETRO-INVERSO ANALOGUE, TR-NOE, ANTIGEN- ANTIBODY COMPLEX, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.72 Å |
| rg_electron | 6.02 Å |
| i0 | 1159640.00 |
| molecular_weight | 6665.0 kDa |
| excluded_volume | 7857 ų |
| envelope_volume | 2863 ų |
| shell_volume | 3876 ų |
| envelope_diameter | 25.1 Å |
| shell_rg | 11.55 Å |
| envelope_rg | 7.53 Å |
| shape_rg | 5.94 Å |
| total_rg | 7.09 Å |
| total_atoms | 903 |
| n_residues | 28 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 25.7 Å |
| rg_real | 6.77 Å |
| rg_real_error | 0.39 Å |
| i0_real | 1.1600e+06 |
| i0_real_error | 1.2230e+04 |
| rg_reciprocal | 6.77 Å |
| i0_reciprocal | 1160000.0000 |
| total_estimate | 0.7960 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 7.5 Å |
| skewness | 0.540 |
| kurtosis | 0.141 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1565.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.650; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.569; Smooth: 0.824 |
