1cx3
SOLUTION STRUCTURE OF A COMPLEX BETWEEN D(ATGCAT)2 AND THE ANTITUMOR BISNAPHTHALIMIDE LU-79553

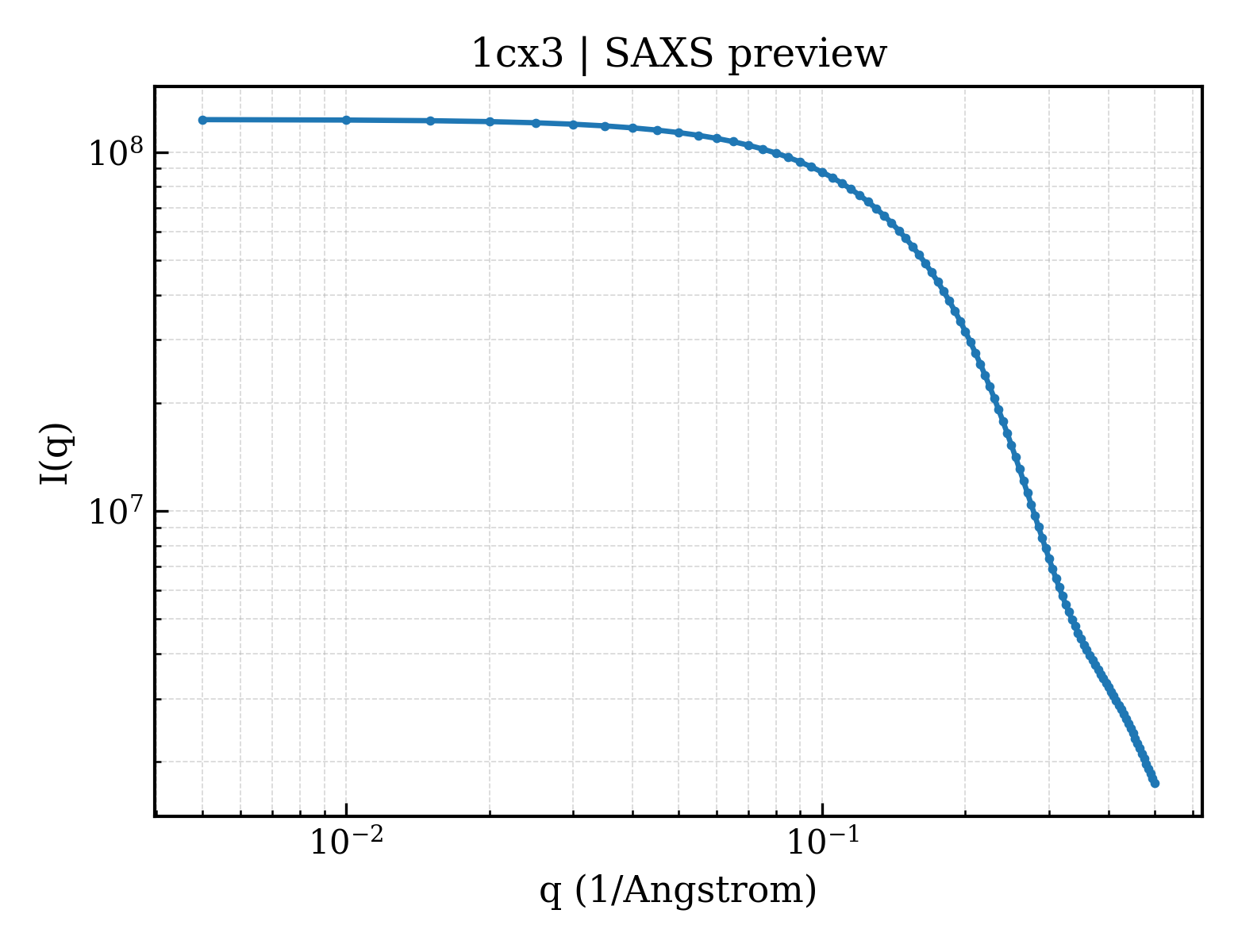

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cx3 |
| deposition_date | 1999-08-27 |
| title | SOLUTION STRUCTURE OF A COMPLEX BETWEEN D(ATGCAT)2 AND THE ANTITUMOR BISNAPHTHALIMIDE LU-79553 |
| keywords | TOPOISOMERASE, ANTICANCER, DNA, NAPHTHALIMIDE, INTERCALATION, DEOXYRIBONUCLEIC ACID; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.05 Å |
| rg_electron | 9.79 Å |
| i0 | 123140000.00 |
| molecular_weight | 61697.0 kDa |
| excluded_volume | 63840 ų |
| envelope_volume | 11851 ų |
| shell_volume | 8923 ų |
| envelope_diameter | 34.6 Å |
| shell_rg | 17.01 Å |
| envelope_rg | 11.78 Å |
| shape_rg | 9.63 Å |
| total_rg | 10.32 Å |
| total_atoms | 6735 |
| n_residues | 180 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.2 Å |
| rg_real | 10.02 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.2310e+08 |
| i0_real_error | 1.4020e+06 |
| rg_reciprocal | 10.02 Å |
| i0_reciprocal | 123100000.0000 |
| total_estimate | 0.8996 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.8 Å |
| skewness | 0.189 |
| kurtosis | -0.485 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 38560.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.985 |
