1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C3

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–111	Not recorded	SO4 SULFATE ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 8	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；THE CRYSTALS WERE GROWN AT 20 DEGREES C. DATA WAS COLLECTED AT AT 4 DEGREES C., pH 8.0	Resolution 2.16 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CZJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AQE CRYSTAL STRUCTURE OF THE Y73E MUTANT OF CYTOCHROME C OF CLASS III (AMBLER) 26 KD Deposited 1997-07-29	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–111（111 aa）	Mutation：Y73E	SO4 SULFATE ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；THE PROTEIN WAS CRYSTALLIZED FROM 2.4M AMMONIUM SULFATE, 100MM TRIS PH 7.6	Resolution 2.20 Å R-free 0.239

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYC32_DESDN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–111； UniProt 1–111

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1czj
Deposition date deposition_date	1996-01-12
Structure title title	CYTOCHROME C OF CLASS III (AMBLER) 26 KD
Keywords keywords	OCTAHEME CYTOCHROME, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.02 Å
Radius of gyration Rg (electron density) rg_electron	13.86 Å
Forward intensity I(0) i0	4863060.00
Molecular weight molecular_weight	14951.0 kDa
Excluded volume excluded_volume	18258 Å³
Envelope volume envelope_volume	20429 Å³
Hydration-shell volume shell_volume	12391 Å³
Envelope diameter envelope_diameter	47.3 Å
Shell Rg shell_rg	19.81 Å
Envelope Rg envelope_rg	14.42 Å
Shape Rg shape_rg	13.85 Å
Total Rg total_rg	15.05 Å
Total atoms total_atoms	1039
Residues n_residues	110
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

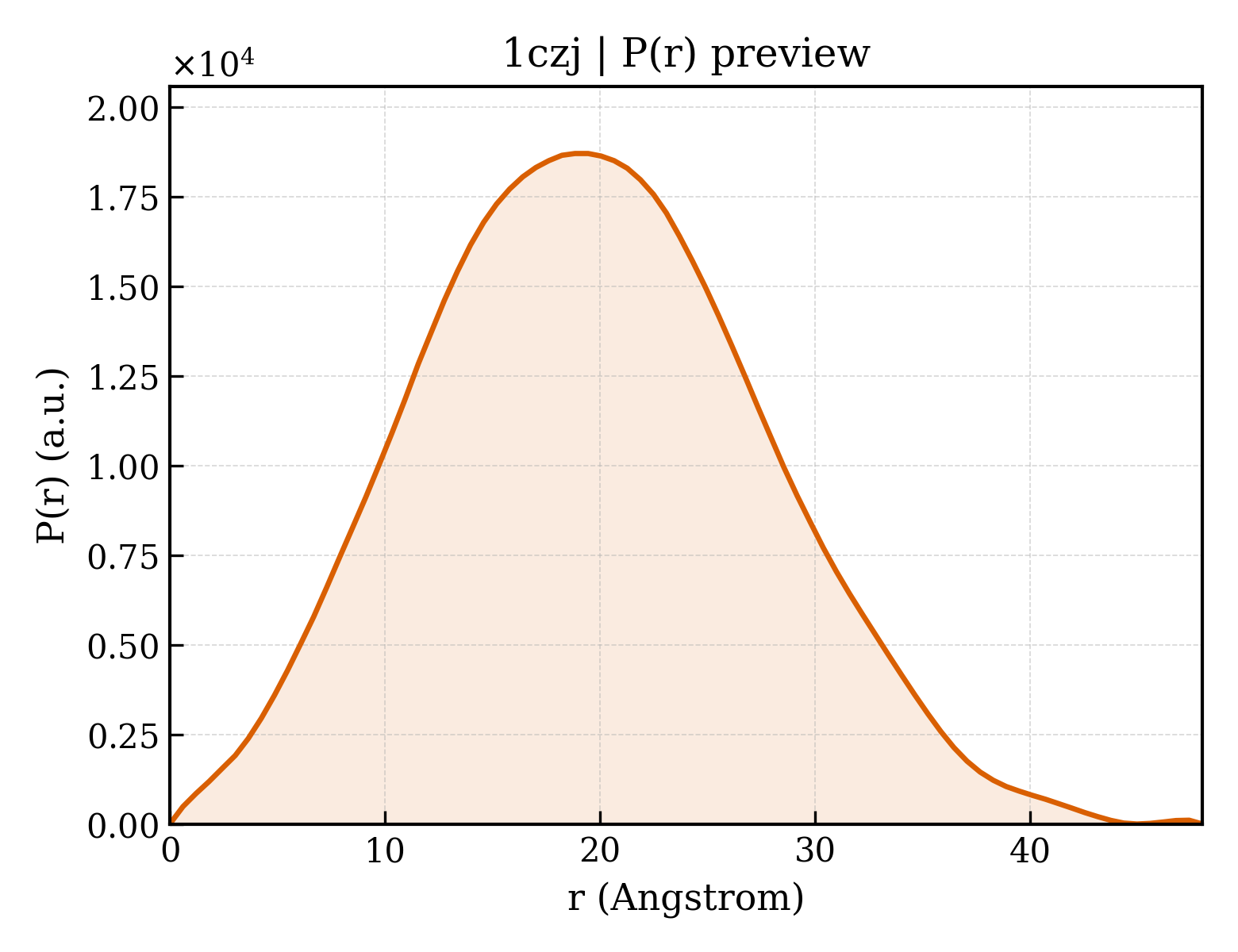

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	48.0 Å
Rg (real space) rg_real	14.92 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	4.8630e+06
I(0) uncertainty (real space) i0_real_error	4.9320e+04
Rg (reciprocal space) rg_reciprocal	14.93 Å
I(0) (reciprocal space) i0_reciprocal	4863000.0000
Solution quality estimate total_estimate	0.8848
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	47.4 Å
Skewness Skewness skewness	0.178
Kurtosis Kurtosis kurtosis	-0.317
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	992600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.851; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.954

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C3
Molecular weight formula_weight	12541.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1105

ETFEIPESVTMSPKQFEGYTPKKGDVTFNHASHMDIACQQCHHTVPDTYTIESCMTEGCHDNIKERTEISSVYRTFHTTKDSEKSCVGCHRELKRQGPSDAPLACNSCHVQ

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	66

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1czja_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.1 — Cytochrome c3-like

CATH v4.4 (1 domains)

Domain ID domain_id	1czjA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

▶

8. Citations (2)

▶

Unit-cell length a length_a	73.710 Å
Unit-cell length b length_b	73.710 Å
Unit-cell length c length_c	57.250 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.160 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.2040
R_work r_work	0.2040
R_free r_free	0.2630

fit	/app/data/saxs_computation/cz/1czj/1czj.fit
pddf	/app/data/pr_computation/cz/1czj/1czj.pr.out
profile	/app/data/saxs_computation/cz/1czj/1czj.dat
