1d11
;INTERACTIONS BETWEEN AN ANTHRACYCLINE ANTIBIOTIC AND DNA MOLECULAR STRUCTURE OF DAUNOMYCIN COMPLEXED TO D(CPGPTPAPCPG) AT 1.2-ANGSTROMS RESOLUTION ;

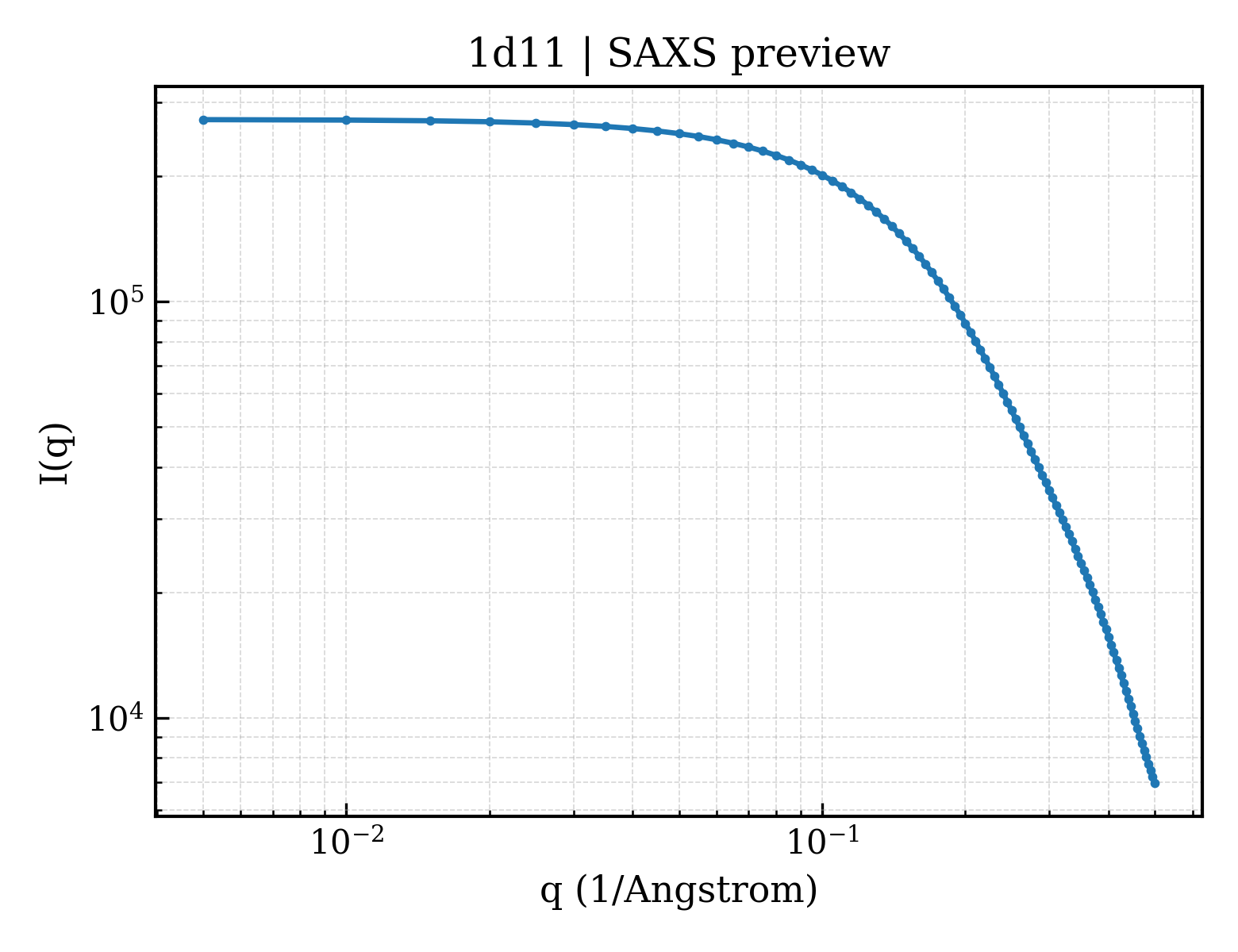

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d11 |
| deposition_date | 1989-10-20 |
| title | ;INTERACTIONS BETWEEN AN ANTHRACYCLINE ANTIBIOTIC AND DNA MOLECULAR STRUCTURE OF DAUNOMYCIN COMPLEXED TO D(CPGPTPAPCPG) AT 1.2-ANGSTROMS RESOLUTION ; |
| keywords | RIGHT HANDED DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.60 Å |
| rg_electron | 8.91 Å |
| i0 | 273285.00 |
| molecular_weight | 2347.0 kDa |
| excluded_volume | 2490 ų |
| envelope_volume | 3136 ų |
| shell_volume | 3623 ų |
| envelope_diameter | 30.0 Å |
| shell_rg | 12.58 Å |
| envelope_rg | 9.28 Å |
| shape_rg | 8.81 Å |
| total_rg | 10.12 Å |
| total_atoms | 159 |
| n_residues | 6 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.1 Å |
| rg_real | 9.69 Å |
| rg_real_error | 0.35 Å |
| i0_real | 2.7330e+05 |
| i0_real_error | 2.5810e+03 |
| rg_reciprocal | 9.69 Å |
| i0_reciprocal | 273300.0000 |
| total_estimate | 0.8454 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.2 Å |
| skewness | 0.473 |
| kurtosis | -0.385 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9934.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.593; Smooth: 0.915 |
