1d17
DNA-NOGALAMYCIN INTERACTIONS

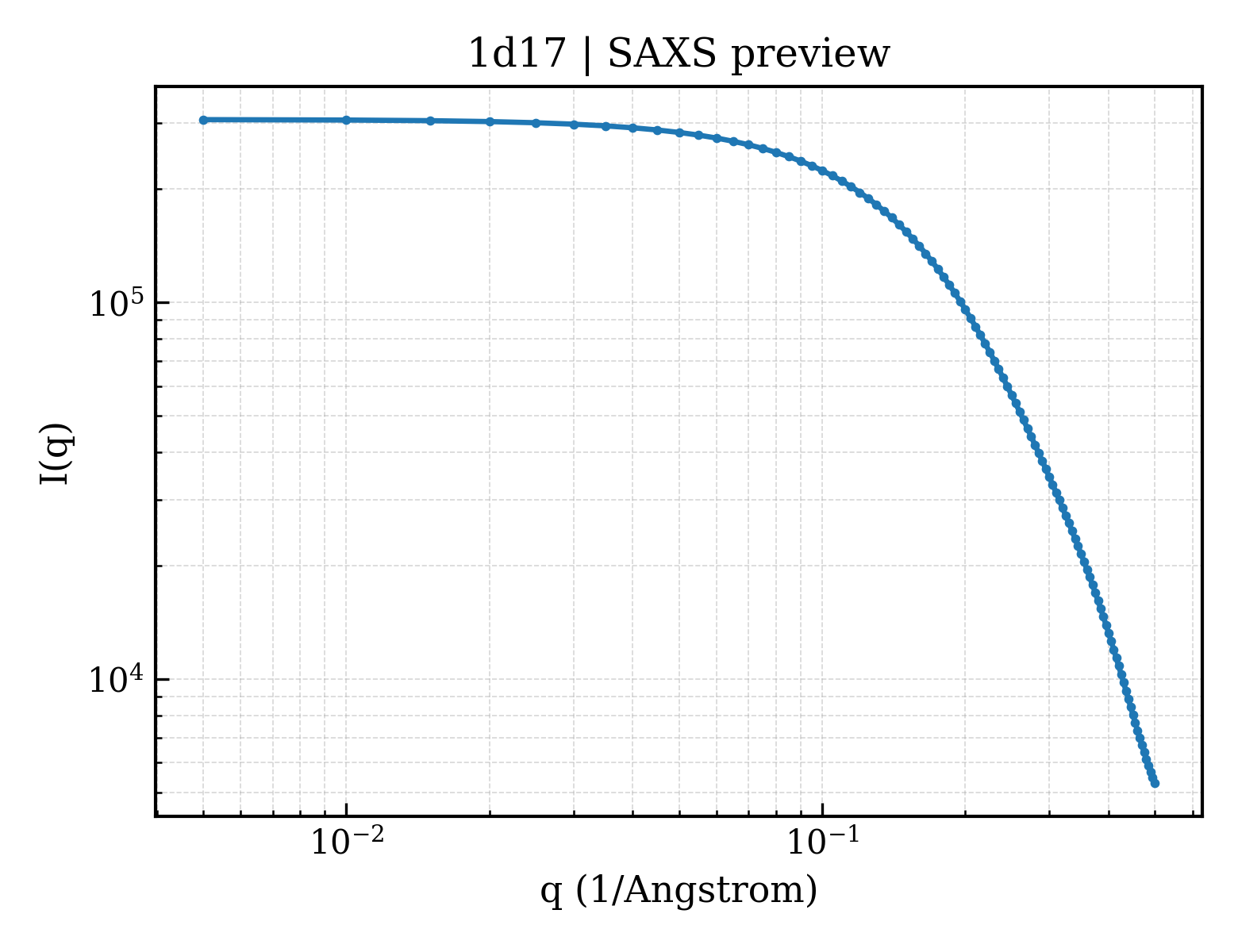

SAXS Profile

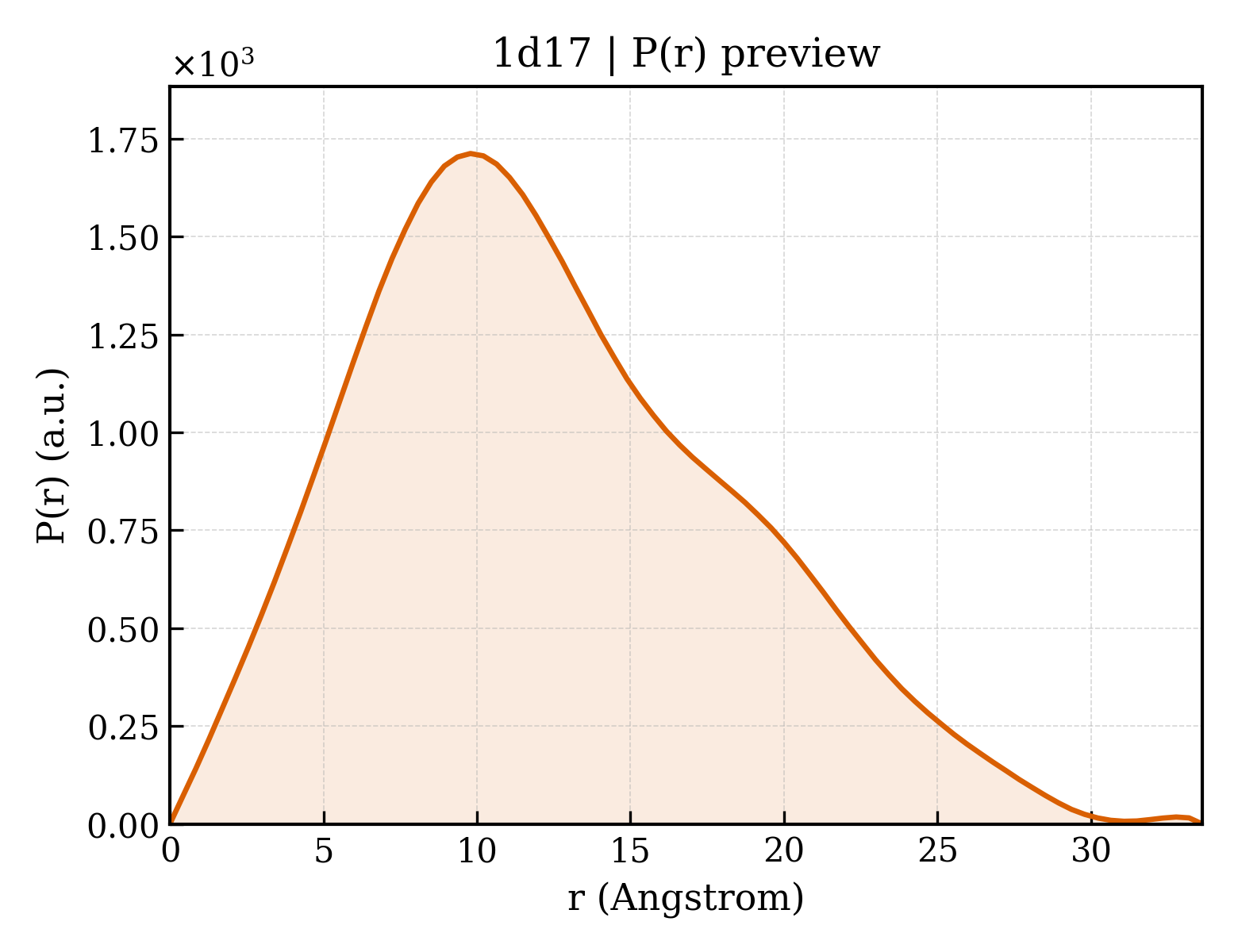

P(r) Distribution
1. Structure Basics
| entry_id | 1d17 |
| deposition_date | 1990-08-08 |
| title | DNA-NOGALAMYCIN INTERACTIONS |
| keywords | RIGHT HANDED DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.67 Å |
| rg_electron | 8.79 Å |
| i0 | 305968.00 |
| molecular_weight | 2612.0 kDa |
| excluded_volume | 2852 ų |
| envelope_volume | 3315 ų |
| shell_volume | 3895 ų |
| envelope_diameter | 30.1 Å |
| shell_rg | 12.54 Å |
| envelope_rg | 9.22 Å |
| shape_rg | 8.71 Å |
| total_rg | 9.98 Å |
| total_atoms | 178 |
| n_residues | 4 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.6 Å |
| rg_real | 9.75 Å |
| rg_real_error | 0.42 Å |
| i0_real | 3.0600e+05 |
| i0_real_error | 3.1460e+03 |
| rg_reciprocal | 9.74 Å |
| i0_reciprocal | 306000.0000 |
| total_estimate | 0.8466 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.8 Å |
| skewness | 0.470 |
| kurtosis | -0.303 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 19140.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.767; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.733; Smooth: 0.971 |
