1d1e
SOLUTION STRUCTURE OF LACTAM-BRIDGED C-TERMINAL ANALOGUE-II OF NEUROPEPTIDE Y

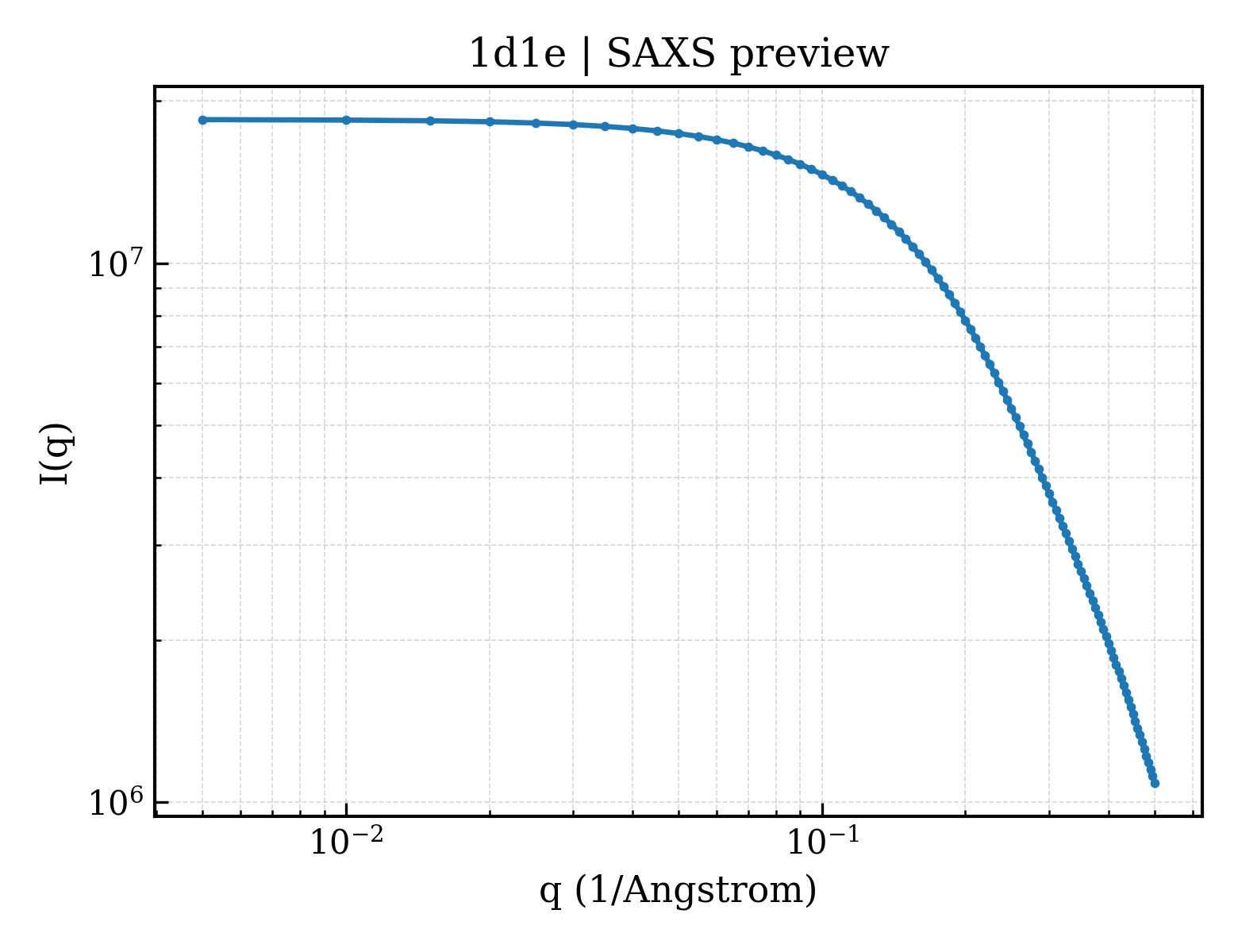

SAXS Profile

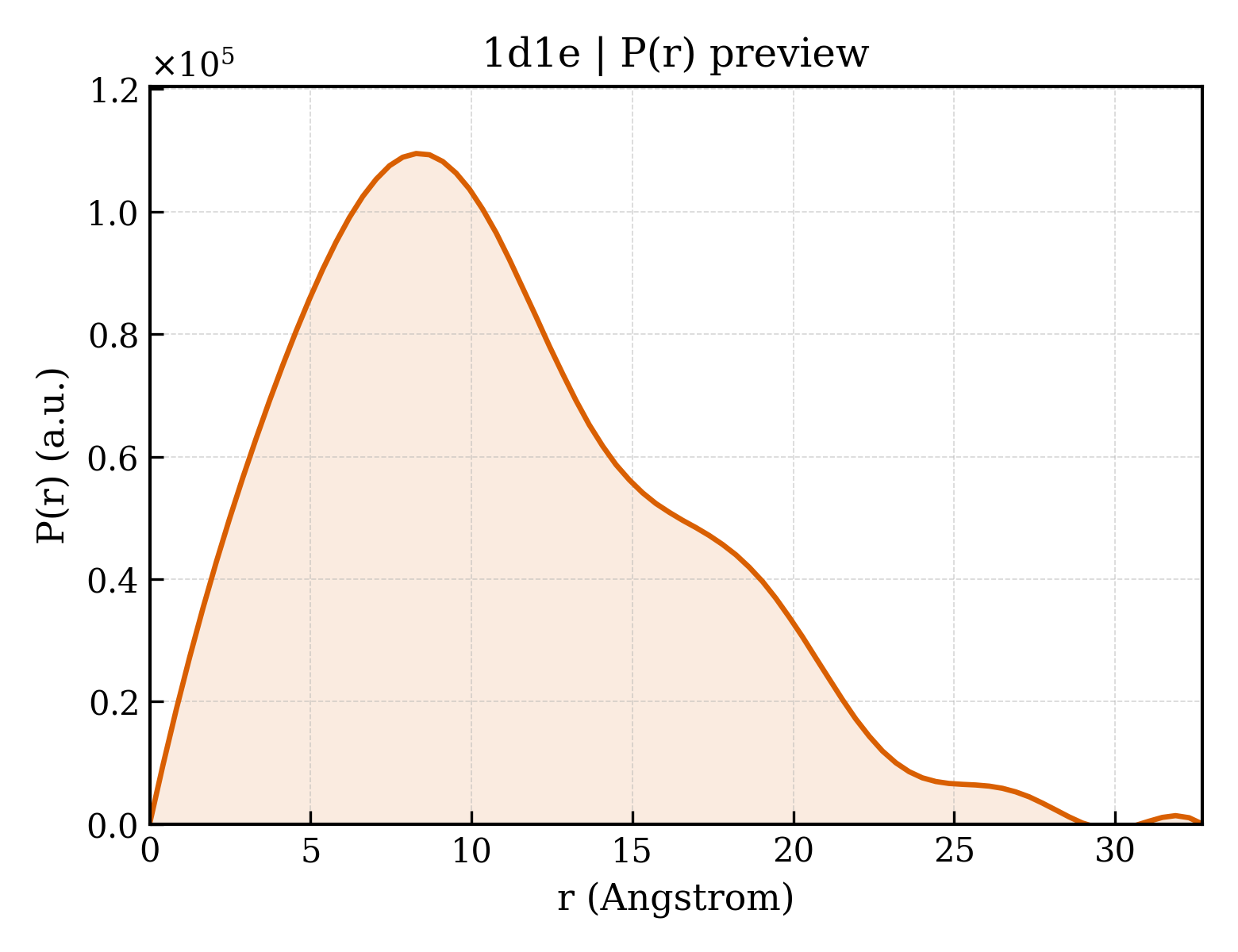

P(r) Distribution
1. Structure Basics
| entry_id | 1d1e |
| deposition_date | 1999-09-15 |
| title | SOLUTION STRUCTURE OF LACTAM-BRIDGED C-TERMINAL ANALOGUE-II OF NEUROPEPTIDE Y |
| keywords | LACTAM-BRIDGE, HELIX, NEUROPEPTIDE; NEUROPEPTIDE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.36 Å |
| rg_electron | 8.12 Å |
| i0 | 18488200.00 |
| molecular_weight | 34100.0 kDa |
| excluded_volume | 42496 ų |
| envelope_volume | 7831 ų |
| shell_volume | 6729 ų |
| envelope_diameter | 34.8 Å |
| shell_rg | 15.48 Å |
| envelope_rg | 11.11 Å |
| shape_rg | 8.09 Å |
| total_rg | 8.75 Å |
| total_atoms | 4860 |
| n_residues | 240 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 32.7 Å |
| rg_real | 8.49 Å |
| rg_real_error | 0.57 Å |
| i0_real | 1.8490e+07 |
| i0_real_error | 2.1120e+05 |
| rg_reciprocal | 8.49 Å |
| i0_reciprocal | 18490000.0000 |
| total_estimate | 0.7417 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 8.3 Å |
| skewness | 0.573 |
| kurtosis | -0.133 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2592.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.536; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.196; Smooth: 0.845 |
