1d24
CRYSTAL AND MOLECULAR STRUCTURE OF A DNA DUPLEX CONTAINING THE CARCINOGENIC LESION O6-METHYLGUANINE

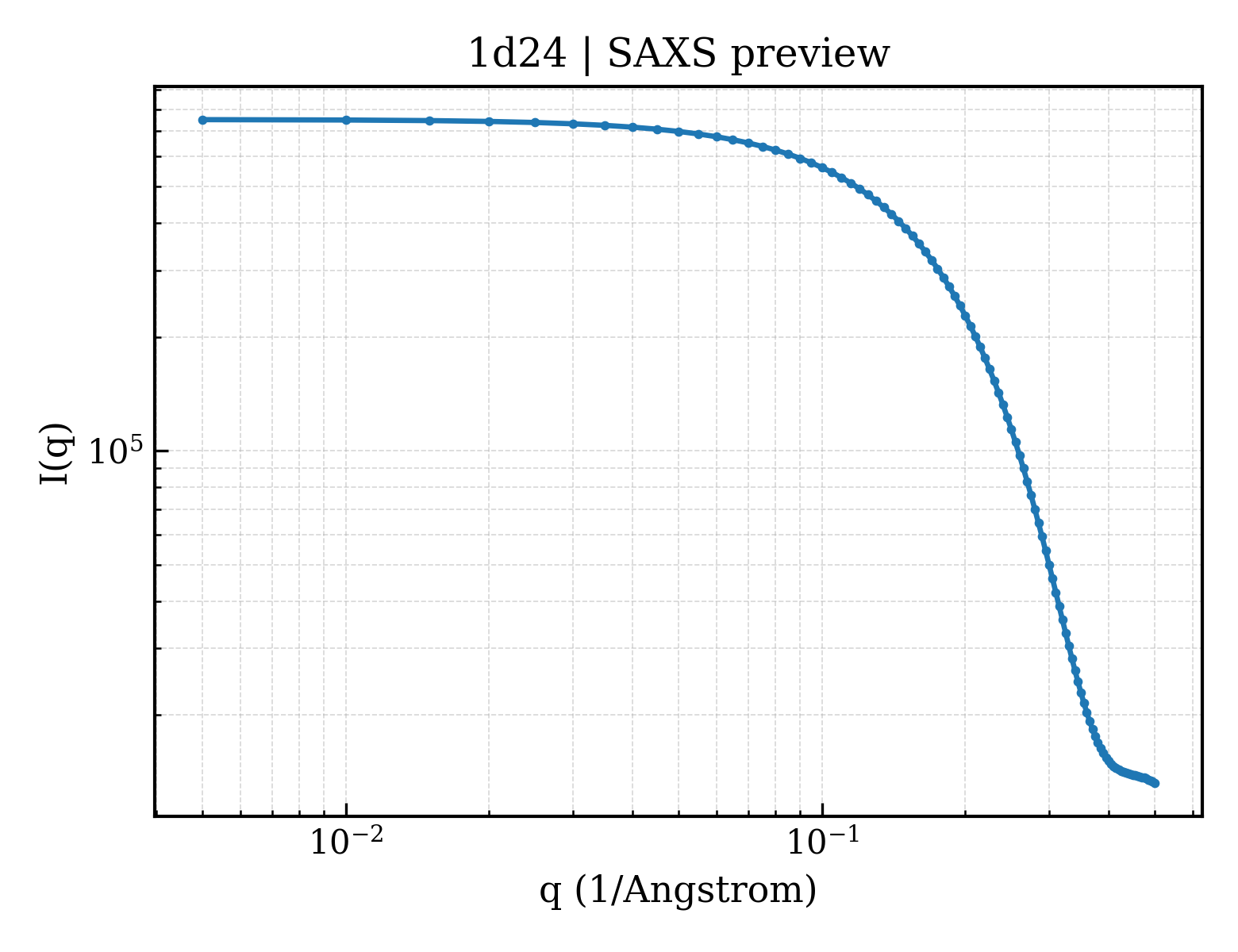

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d24 |
| deposition_date | 1990-08-29 |
| title | CRYSTAL AND MOLECULAR STRUCTURE OF A DNA DUPLEX CONTAINING THE CARCINOGENIC LESION O6-METHYLGUANINE |
| keywords | Z-DNA, DOUBLE HELIX, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.36 Å |
| rg_electron | 8.57 Å |
| i0 | 751369.00 |
| molecular_weight | 3623.0 kDa |
| excluded_volume | 3521 ų |
| envelope_volume | 4203 ų |
| shell_volume | 4716 ų |
| envelope_diameter | 28.5 Å |
| shell_rg | 12.89 Å |
| envelope_rg | 8.77 Å |
| shape_rg | 8.52 Å |
| total_rg | 9.57 Å |
| total_atoms | 242 |
| n_residues | 10 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.2 Å |
| rg_real | 9.32 Å |
| rg_real_error | 0.26 Å |
| i0_real | 7.5140e+05 |
| i0_real_error | 7.3260e+03 |
| rg_reciprocal | 9.32 Å |
| i0_reciprocal | 751400.0000 |
| total_estimate | 0.8871 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.8 Å |
| skewness | 0.192 |
| kurtosis | -0.290 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 41170.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.848; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.991 |
