1d30
THE STRUCTURE OF DAPI BOUND TO DNA

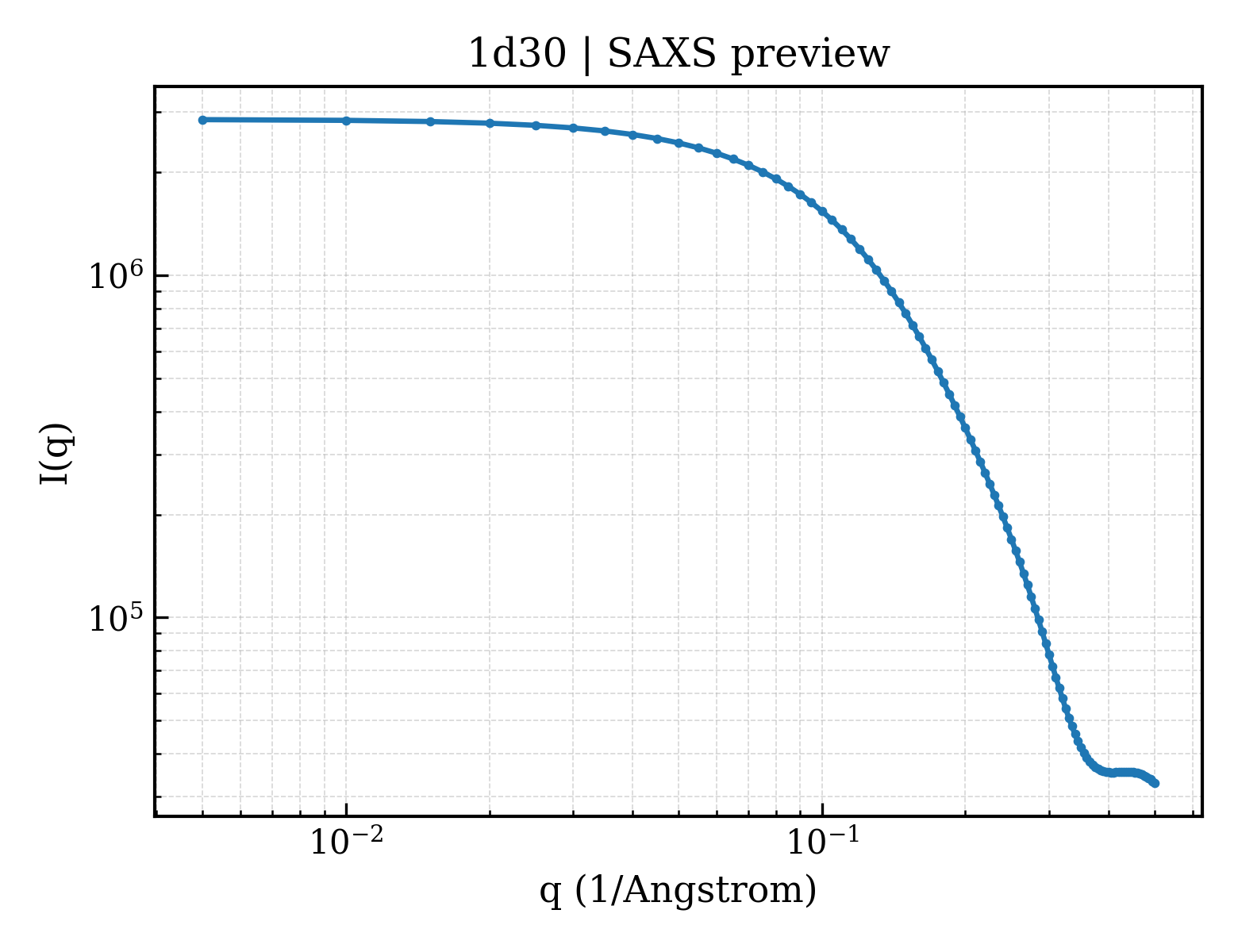

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d30 |
| deposition_date | 1991-01-04 |
| title | THE STRUCTURE OF DAPI BOUND TO DNA |
| keywords | B-DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.73 Å |
| rg_electron | 13.22 Å |
| i0 | 2854710.00 |
| molecular_weight | 7590.0 kDa |
| excluded_volume | 7424 ų |
| envelope_volume | 9763 ų |
| shell_volume | 7140 ų |
| envelope_diameter | 46.0 Å |
| shell_rg | 17.09 Å |
| envelope_rg | 13.52 Å |
| shape_rg | 13.10 Å |
| total_rg | 13.96 Å |
| total_atoms | 507 |
| n_residues | 24 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.3 Å |
| rg_real | 13.82 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.8550e+06 |
| i0_real_error | 3.0600e+04 |
| rg_reciprocal | 13.81 Å |
| i0_reciprocal | 2855000.0000 |
| total_estimate | 0.8541 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.4 Å |
| skewness | 0.482 |
| kurtosis | -0.264 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 177200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.776; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.796; Smooth: 0.975 |
