1d37
;INFLUENCE OF AGLYCONE MODIFICATIONS ON THE BINDING OF ANTHRACYCLINE DRUGS TO DNA: THE MOLECULAR STRUCTURE OF IDARUBICIN AND 4-O-DEMETHYL-11-DEOXYDOXORUBICIN COMPLEXED TO D(CGATCG) ;

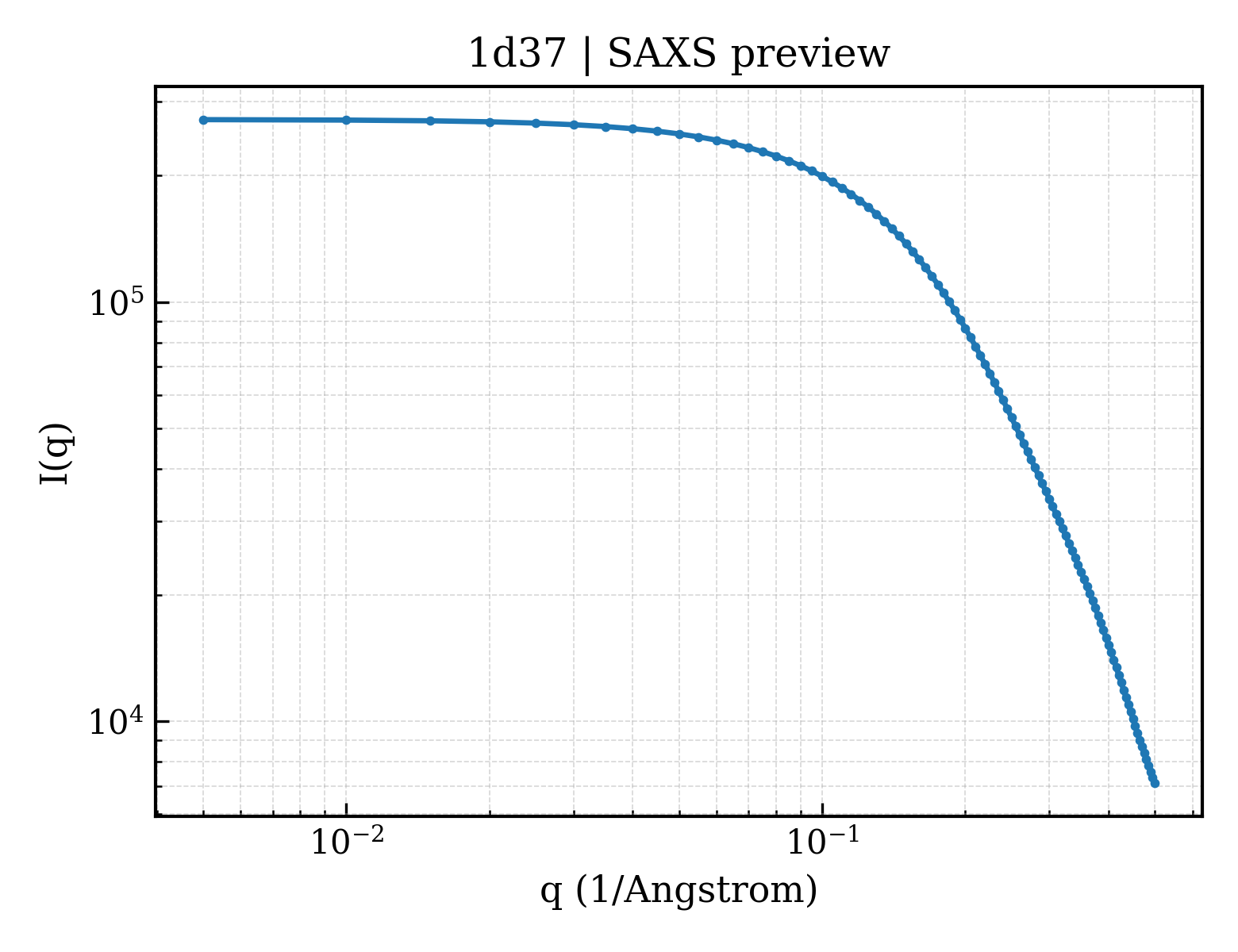

SAXS Profile

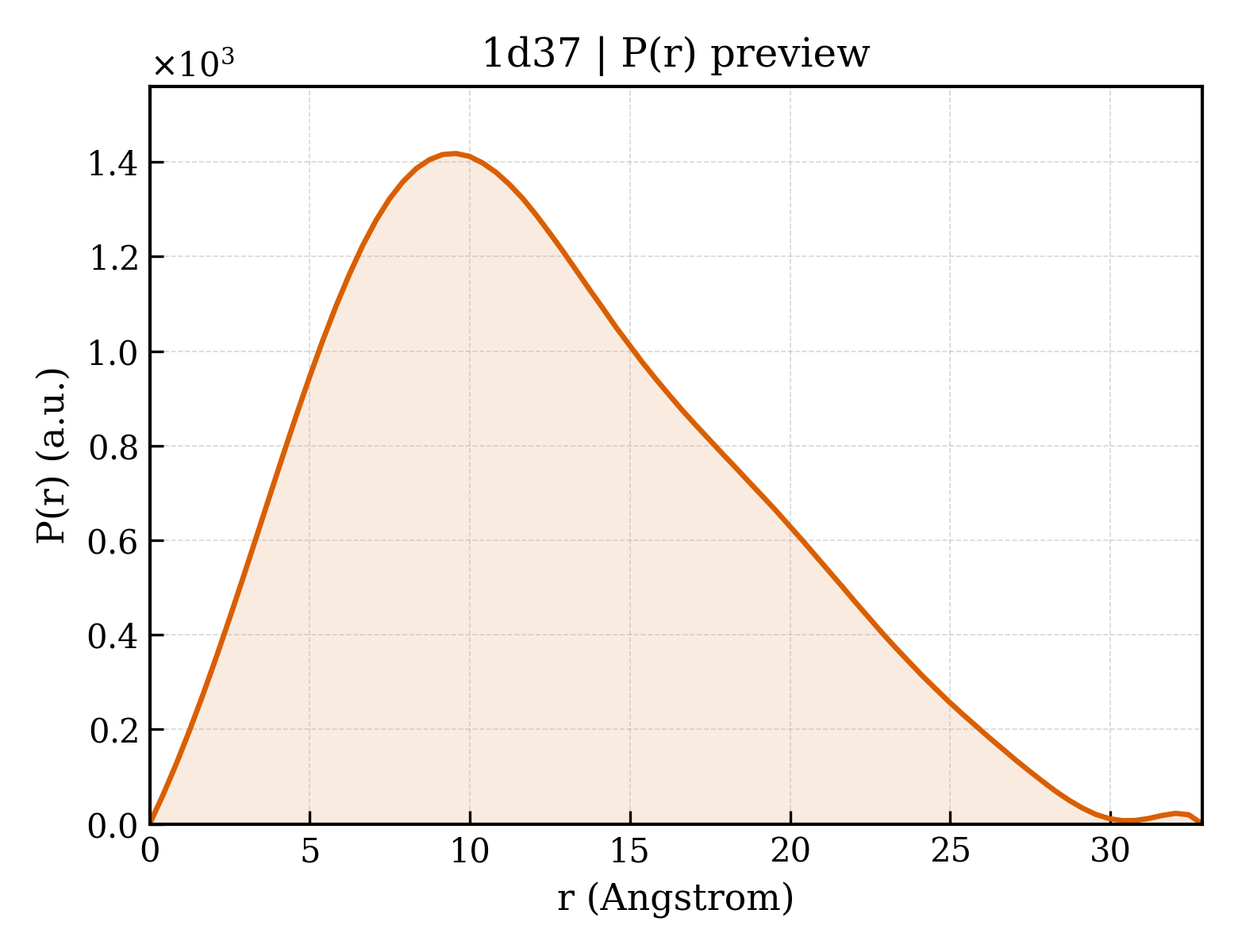

P(r) Distribution
1. Structure Basics
| entry_id | 1d37 |
| deposition_date | 1991-04-23 |
| title | ;INFLUENCE OF AGLYCONE MODIFICATIONS ON THE BINDING OF ANTHRACYCLINE DRUGS TO DNA: THE MOLECULAR STRUCTURE OF IDARUBICIN AND 4-O-DEMETHYL-11-DEOXYDOXORUBICIN COMPLEXED TO D(CGATCG) ; |
| keywords | RIGHT HANDED DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.67 Å |
| rg_electron | 8.89 Å |
| i0 | 272328.00 |
| molecular_weight | 2310.0 kDa |
| excluded_volume | 2414 ų |
| envelope_volume | 3009 ų |
| shell_volume | 3535 ų |
| envelope_diameter | 30.0 Å |
| shell_rg | 12.51 Å |
| envelope_rg | 9.22 Å |
| shape_rg | 8.80 Å |
| total_rg | 9.99 Å |
| total_atoms | 157 |
| n_residues | 6 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 32.9 Å |
| rg_real | 9.76 Å |
| rg_real_error | 0.27 Å |
| i0_real | 2.7230e+05 |
| i0_real_error | 2.7110e+03 |
| rg_reciprocal | 9.75 Å |
| i0_reciprocal | 272300.0000 |
| total_estimate | 0.8585 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.6 Å |
| skewness | 0.448 |
| kurtosis | -0.411 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9989.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.656; Smooth: 0.903 |
