1d3r
CRYSTAL STRUCTURE OF TRIPLEX DNA

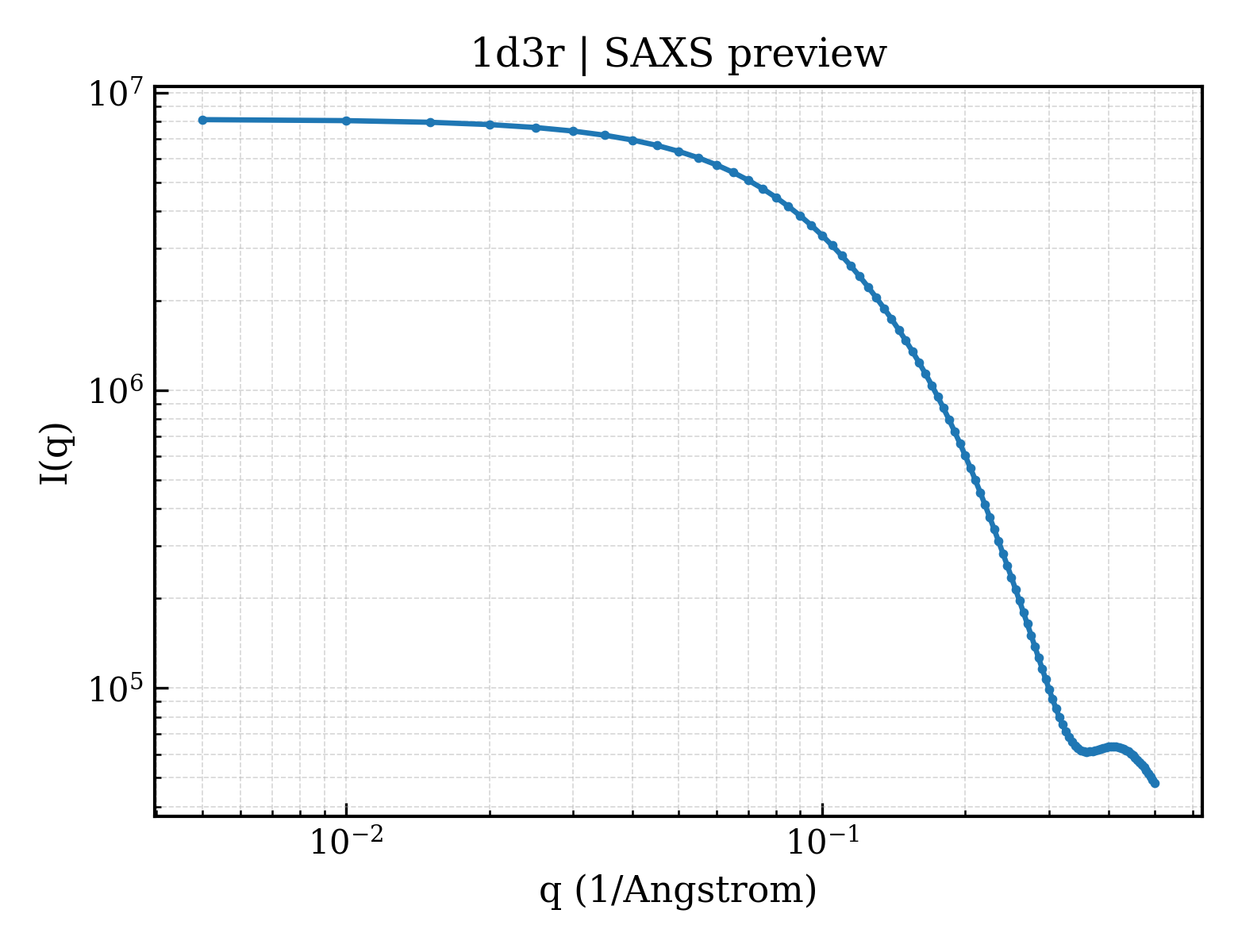

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d3r |
| deposition_date | 1999-09-30 |
| title | CRYSTAL STRUCTURE OF TRIPLEX DNA |
| keywords | TRIPLEX DNA AND ITS JUNCTION WITH A DUPLEX DNA, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.19 Å |
| rg_electron | 17.26 Å |
| i0 | 8130840.00 |
| molecular_weight | 12650.0 kDa |
| excluded_volume | 11949 ų |
| envelope_volume | 17653 ų |
| shell_volume | 10036 ų |
| envelope_diameter | 68.2 Å |
| shell_rg | 20.52 Å |
| envelope_rg | 17.99 Å |
| shape_rg | 17.30 Å |
| total_rg | 17.57 Å |
| total_atoms | 823 |
| n_residues | 37 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 68.2 Å |
| rg_real | 17.50 Å |
| rg_real_error | 0.80 Å |
| i0_real | 8.1310e+06 |
| i0_real_error | 1.1630e+05 |
| rg_reciprocal | 17.46 Å |
| i0_reciprocal | 8131000.0000 |
| total_estimate | 0.7113 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 16.1 Å |
| skewness | 0.765 |
| kurtosis | 0.245 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 763100.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.355; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.185; Smooth: 0.995 |
