1d43
DNA DODECAMER C-G-C-G-A-A-T-T-C-G-C-G/HOECHST 33258 COMPLEX: 0 DEGREES C, PIPERAZINE UP

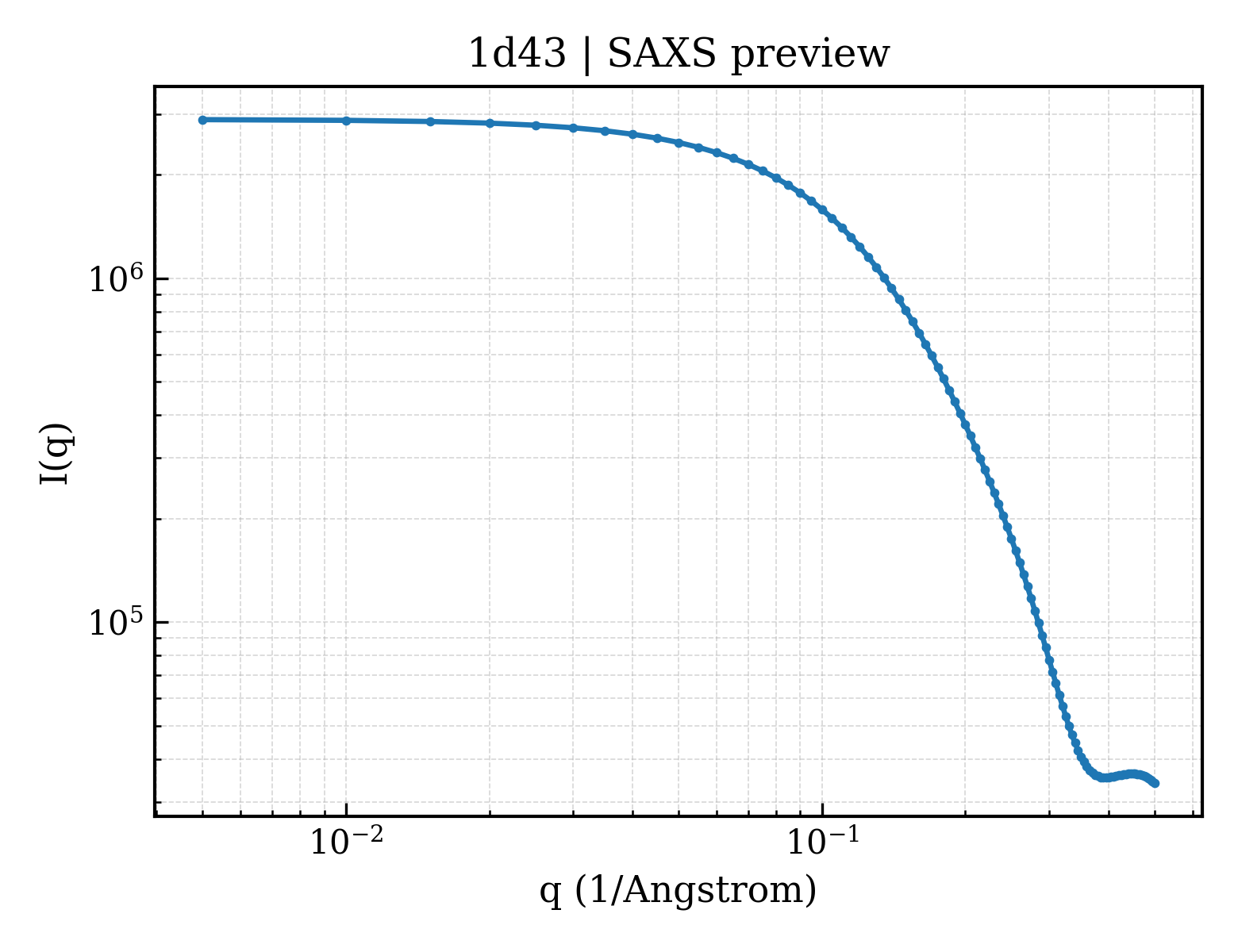

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d43 |
| deposition_date | 1991-06-04 |
| title | DNA DODECAMER C-G-C-G-A-A-T-T-C-G-C-G/HOECHST 33258 COMPLEX: 0 DEGREES C, PIPERAZINE UP |
| keywords | B-DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.57 Å |
| rg_electron | 13.05 Å |
| i0 | 2900630.00 |
| molecular_weight | 7762.0 kDa |
| excluded_volume | 7651 ų |
| envelope_volume | 9846 ų |
| shell_volume | 7224 ų |
| envelope_diameter | 47.0 Å |
| shell_rg | 17.06 Å |
| envelope_rg | 13.44 Å |
| shape_rg | 12.93 Å |
| total_rg | 13.82 Å |
| total_atoms | 519 |
| n_residues | 24 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.2 Å |
| rg_real | 13.67 Å |
| rg_real_error | 0.41 Å |
| i0_real | 2.9010e+06 |
| i0_real_error | 3.0720e+04 |
| rg_reciprocal | 13.66 Å |
| i0_reciprocal | 2901000.0000 |
| total_estimate | 0.8352 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.3 Å |
| skewness | 0.503 |
| kurtosis | -0.220 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 180600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.739; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.790; Smooth: 0.847 |
