1d59
CRYSTAL STRUCTURE OF 4-STRANDED OXYTRICHA TELOMERIC DNA

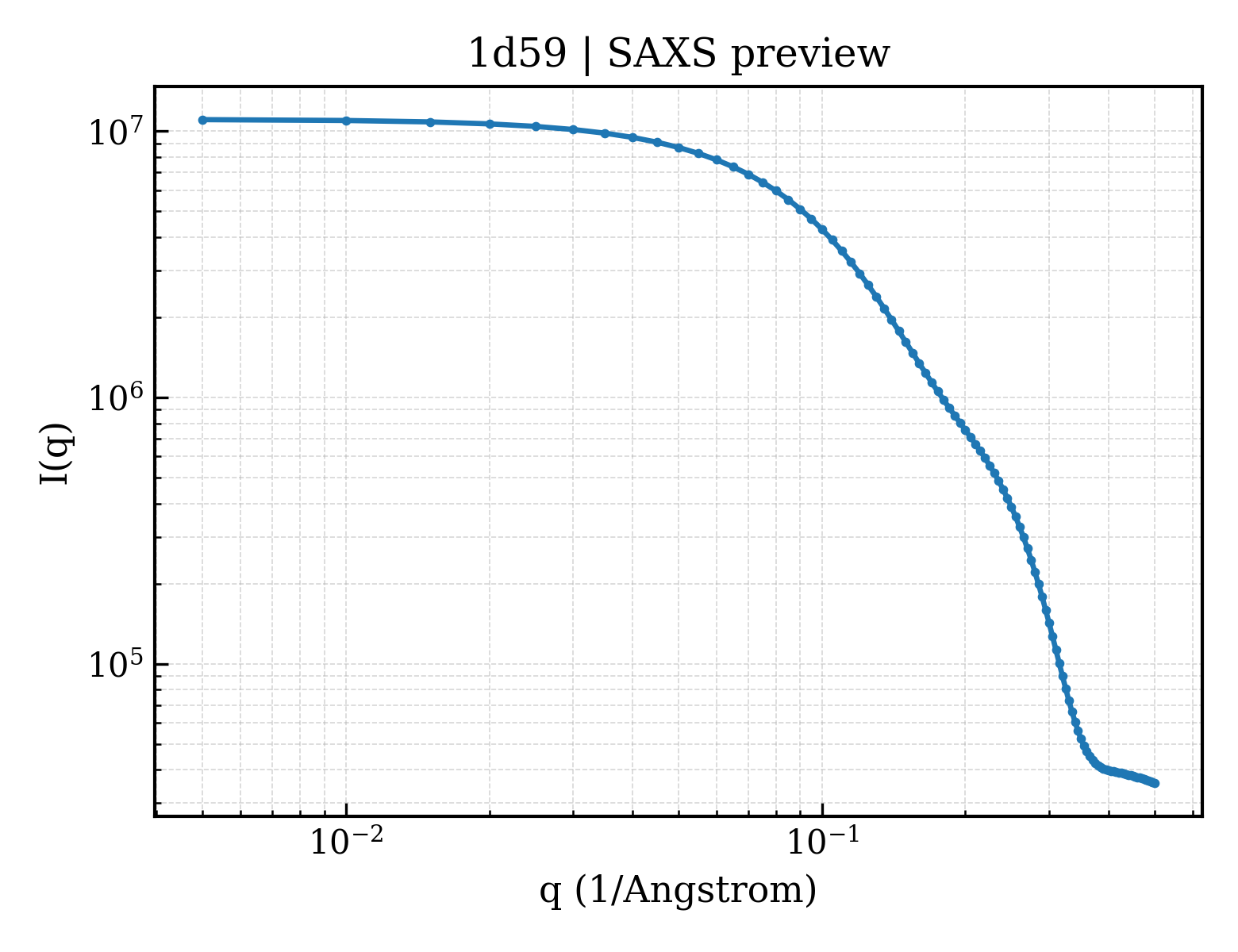

SAXS Profile

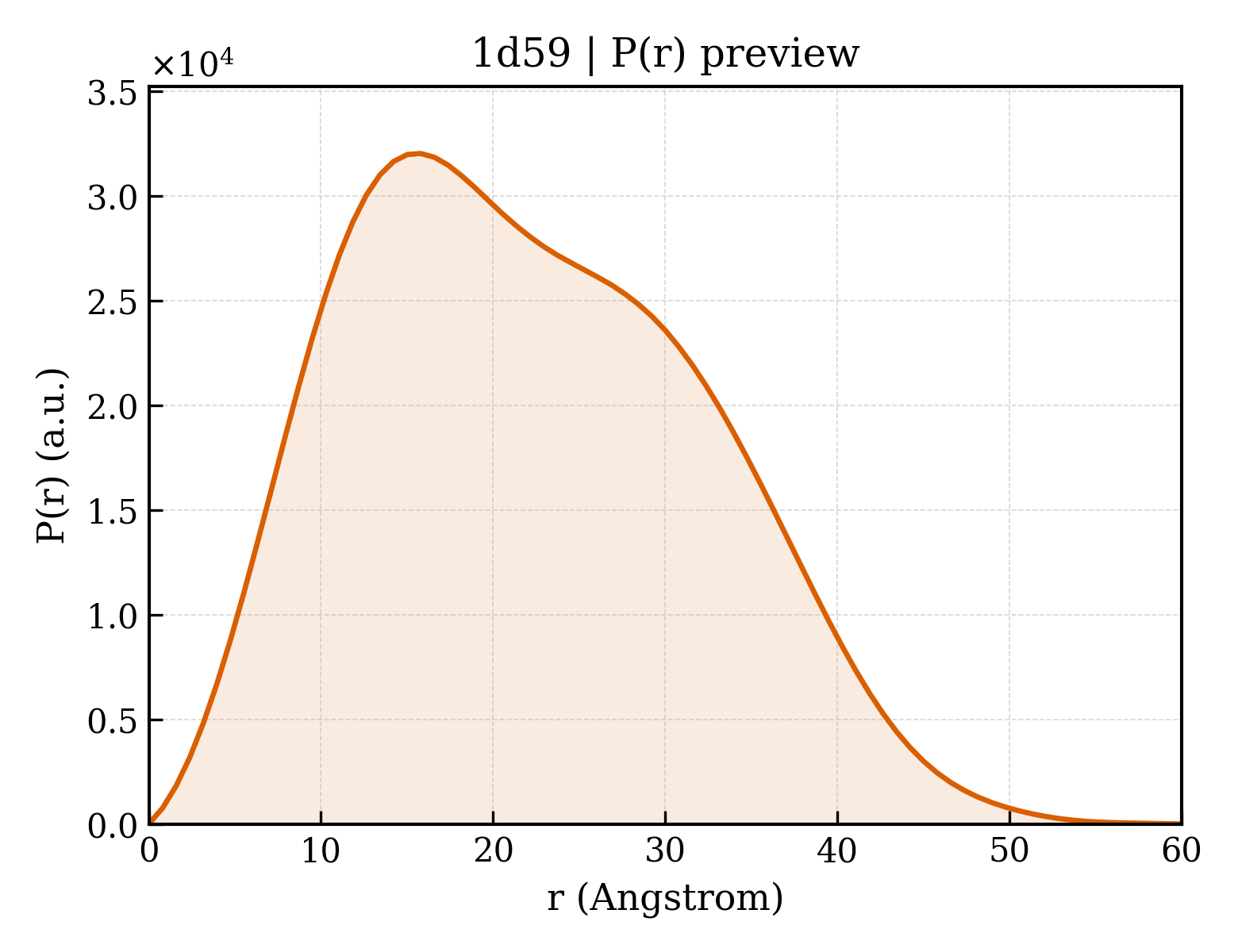

P(r) Distribution
1. Structure Basics
| entry_id | 1d59 |
| deposition_date | 1992-02-25 |
| title | CRYSTAL STRUCTURE OF 4-STRANDED OXYTRICHA TELOMERIC DNA |
| keywords | U-DNA, QUADRUPLE HELIX, TETRAPLEX, LOOP, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.08 Å |
| rg_electron | 16.81 Å |
| i0 | 11067300.00 |
| molecular_weight | 15194.0 kDa |
| excluded_volume | 14612 ų |
| envelope_volume | 20351 ų |
| shell_volume | 10941 ų |
| envelope_diameter | 58.5 Å |
| shell_rg | 21.23 Å |
| envelope_rg | 16.75 Å |
| shape_rg | 16.69 Å |
| total_rg | 17.46 Å |
| total_atoms | 1132 |
| n_residues | 48 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.0 Å |
| rg_real | 17.11 Å |
| rg_real_error | 0.48 Å |
| i0_real | 1.1070e+07 |
| i0_real_error | 1.4930e+05 |
| rg_reciprocal | 17.11 Å |
| i0_reciprocal | 11070000.0000 |
| total_estimate | 0.8473 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 15.8 Å |
| skewness | 0.307 |
| kurtosis | -0.588 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2214000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.701; Smooth: 0.997 |
