1d61
THE STRUCTURE OF THE B-DNA DECAMER C-C-A-A-C-I-T-T-G-G: MONOCLINIC FORM

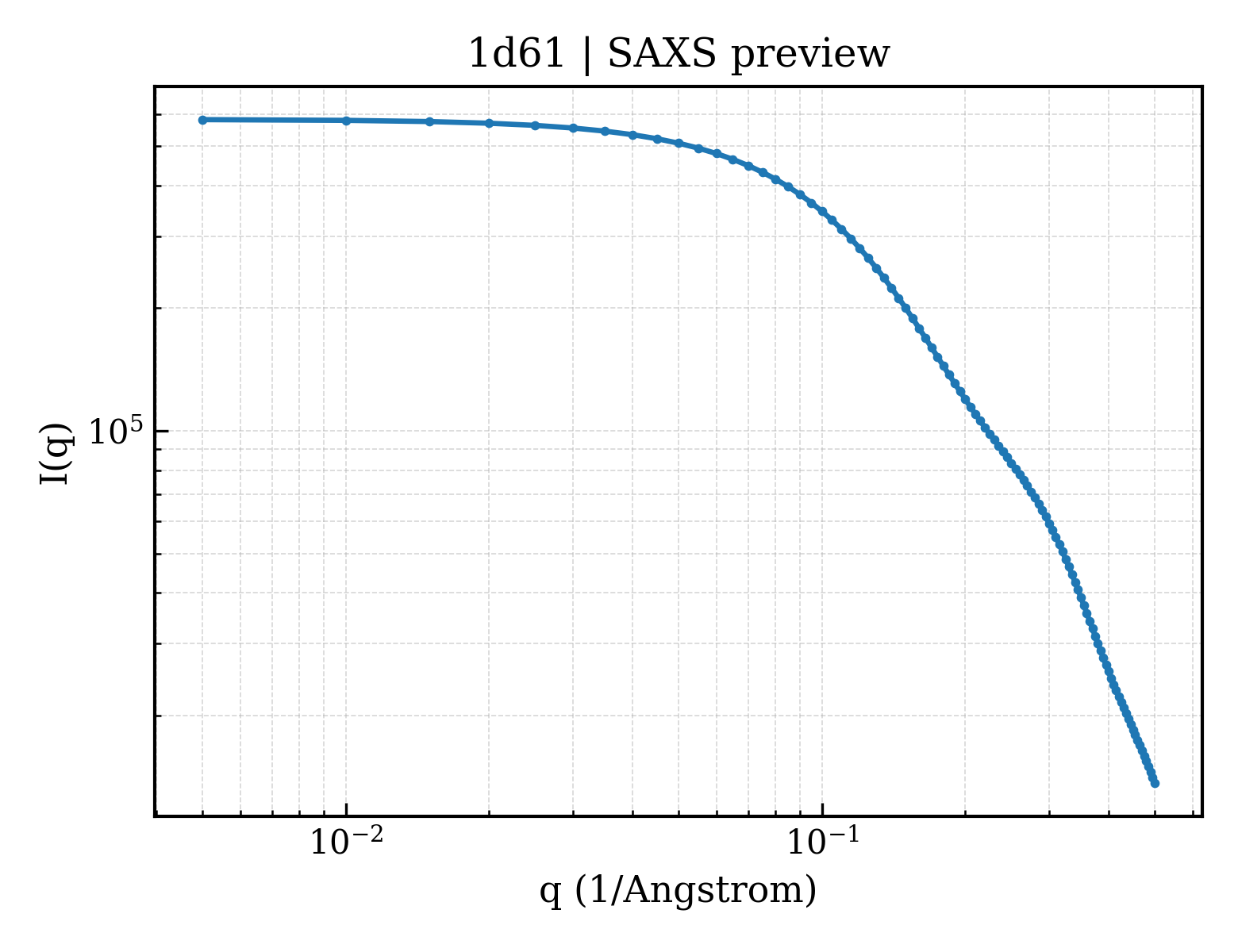

SAXS Profile

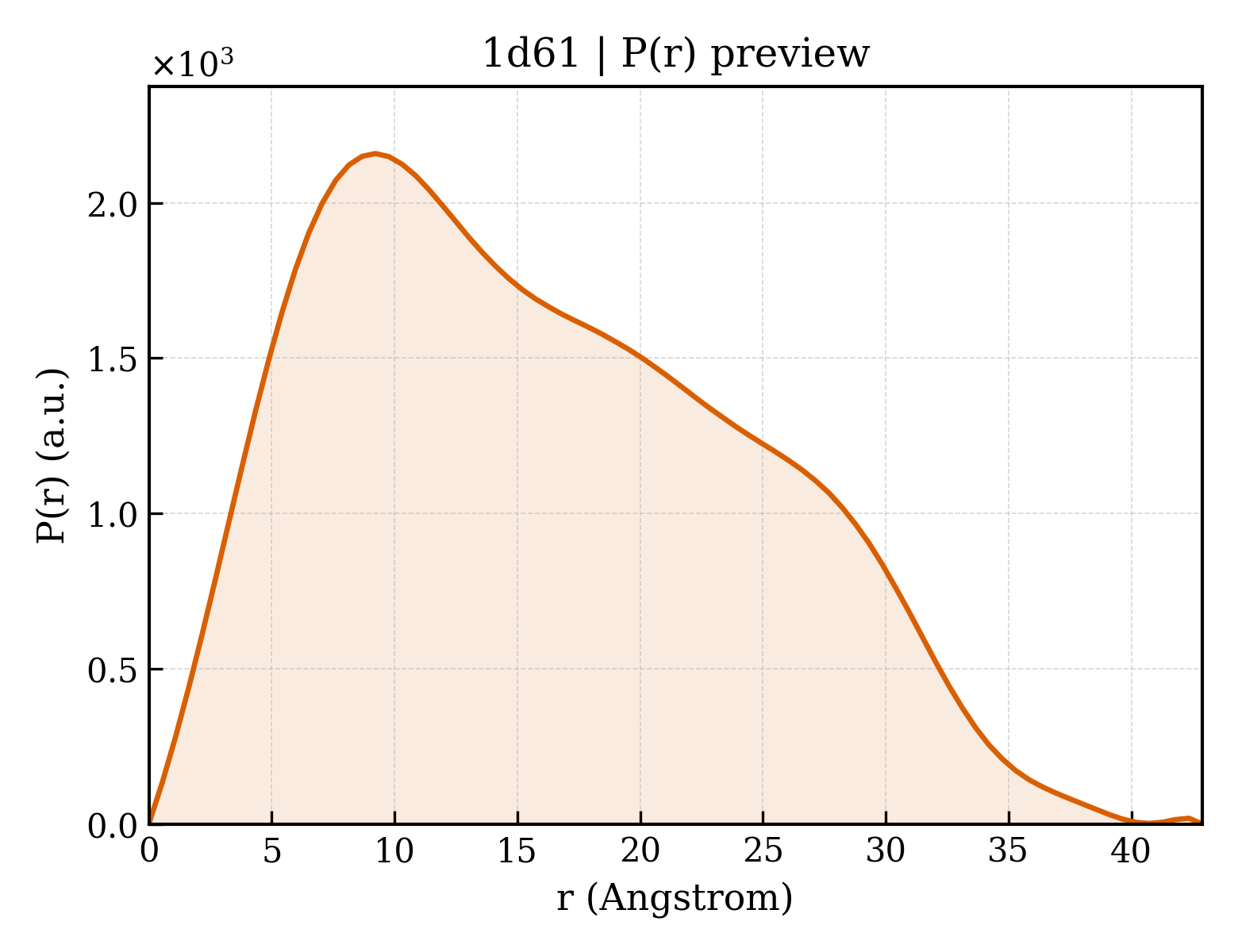

P(r) Distribution
1. Structure Basics
| entry_id | 1d61 |
| deposition_date | 1992-02-26 |
| title | THE STRUCTURE OF THE B-DNA DECAMER C-C-A-A-C-I-T-T-G-G: MONOCLINIC FORM |
| keywords | B-DNA, DOUBLE HELIX, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.62 Å |
| rg_electron | 12.02 Å |
| i0 | 581590.00 |
| molecular_weight | 3168.0 kDa |
| excluded_volume | 3036 ų |
| envelope_volume | 4579 ų |
| shell_volume | 3882 ų |
| envelope_diameter | 40.8 Å |
| shell_rg | 15.36 Å |
| envelope_rg | 12.15 Å |
| shape_rg | 11.83 Å |
| total_rg | 12.93 Å |
| total_atoms | 205 |
| n_residues | 10 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.9 Å |
| rg_real | 12.76 Å |
| rg_real_error | 0.36 Å |
| i0_real | 5.8160e+05 |
| i0_real_error | 7.2560e+03 |
| rg_reciprocal | 12.75 Å |
| i0_reciprocal | 581600.0000 |
| total_estimate | 0.7976 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.2 Å |
| skewness | 0.366 |
| kurtosis | -0.753 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 18280.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.743; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.282; Smooth: 0.856 |
