1d67
THE MOLECULAR STRUCTURE OF AN IDARUBICIN-D(TGATCA) COMPLEX AT HIGH RESOLUTION

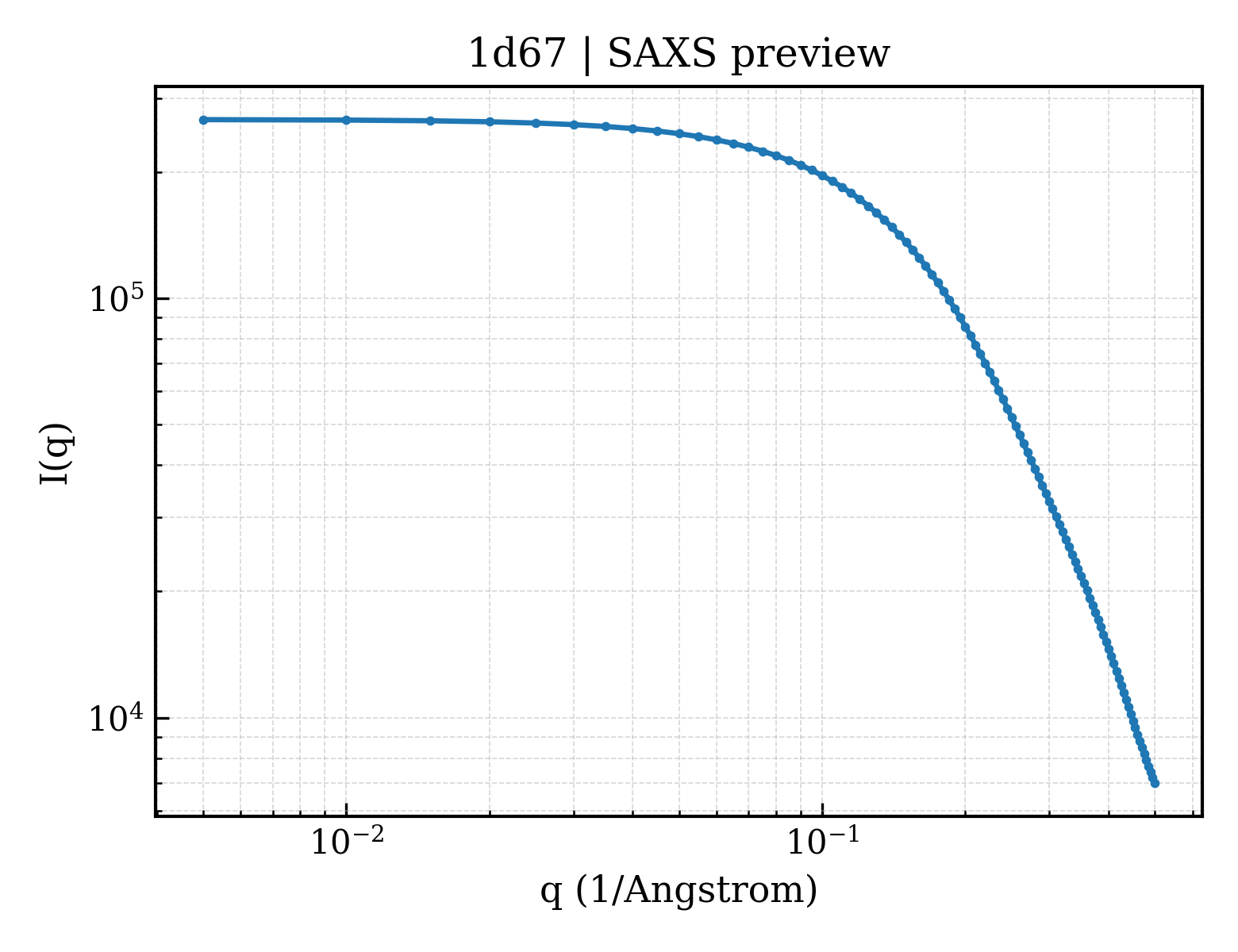

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d67 |
| deposition_date | 1992-03-31 |
| title | THE MOLECULAR STRUCTURE OF AN IDARUBICIN-D(TGATCA) COMPLEX AT HIGH RESOLUTION |
| keywords | RIGHT HANDED DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.60 Å |
| rg_electron | 8.88 Å |
| i0 | 266888.00 |
| molecular_weight | 2293.0 kDa |
| excluded_volume | 2425 ų |
| envelope_volume | 2992 ų |
| shell_volume | 3527 ų |
| envelope_diameter | 30.3 Å |
| shell_rg | 12.44 Å |
| envelope_rg | 9.20 Å |
| shape_rg | 8.79 Å |
| total_rg | 10.01 Å |
| total_atoms | 156 |
| n_residues | 6 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.4 Å |
| rg_real | 9.68 Å |
| rg_real_error | 0.32 Å |
| i0_real | 2.6690e+05 |
| i0_real_error | 2.3740e+03 |
| rg_reciprocal | 9.68 Å |
| i0_reciprocal | 266900.0000 |
| total_estimate | 0.8560 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.7 Å |
| skewness | 0.451 |
| kurtosis | -0.367 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10320.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.842; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.635; Smooth: 0.962 |
