1d68
SOLUTION STRUCTURE OF [D(GCGTATACGC)]2

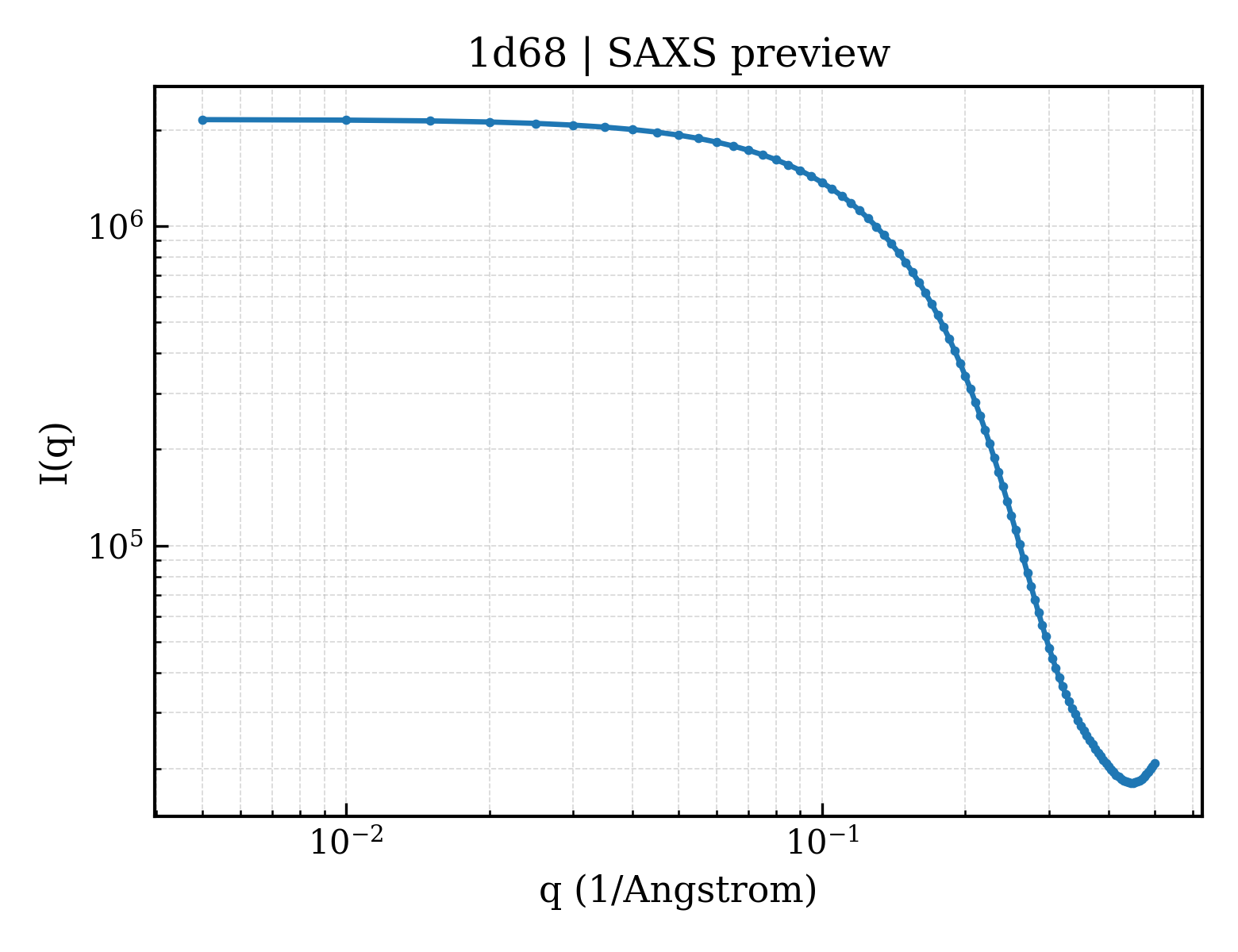

SAXS Profile

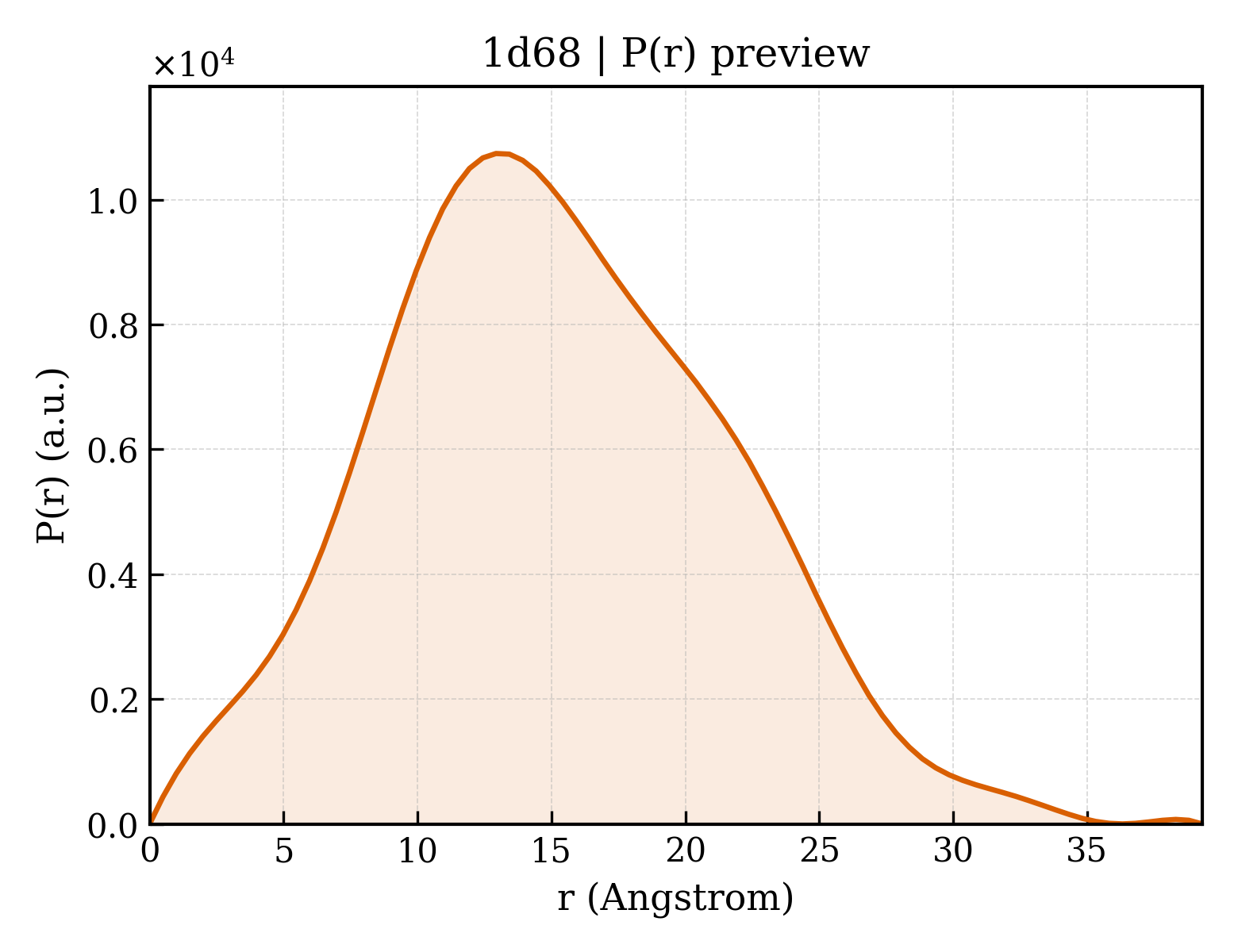

P(r) Distribution
1. Structure Basics
| entry_id | 1d68 |
| deposition_date | 1992-04-15 |
| title | SOLUTION STRUCTURE OF [D(GCGTATACGC)]2 |
| keywords | DNA, DOUBLE HELIX; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.65 Å |
| rg_electron | 10.77 Å |
| i0 | 2154090.00 |
| molecular_weight | 6234.0 kDa |
| excluded_volume | 5981 ų |
| envelope_volume | 7790 ų |
| shell_volume | 6713 ų |
| envelope_diameter | 37.7 Å |
| shell_rg | 15.29 Å |
| envelope_rg | 10.99 Å |
| shape_rg | 10.58 Å |
| total_rg | 11.82 Å |
| total_atoms | 636 |
| n_residues | 20 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.3 Å |
| rg_real | 11.61 Å |
| rg_real_error | 0.28 Å |
| i0_real | 2.1540e+06 |
| i0_real_error | 2.2200e+04 |
| rg_reciprocal | 11.61 Å |
| i0_reciprocal | 2154000.0000 |
| total_estimate | 0.8590 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.9 Å |
| skewness | 0.250 |
| kurtosis | -0.238 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 250400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.731; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.972 |
