1d93
STRUCTURAL VARIATION IN D(CTCTAGAG). IMPLICATIONS FOR PROTEIN-DNA INTERACTIONS
SAXS Profile

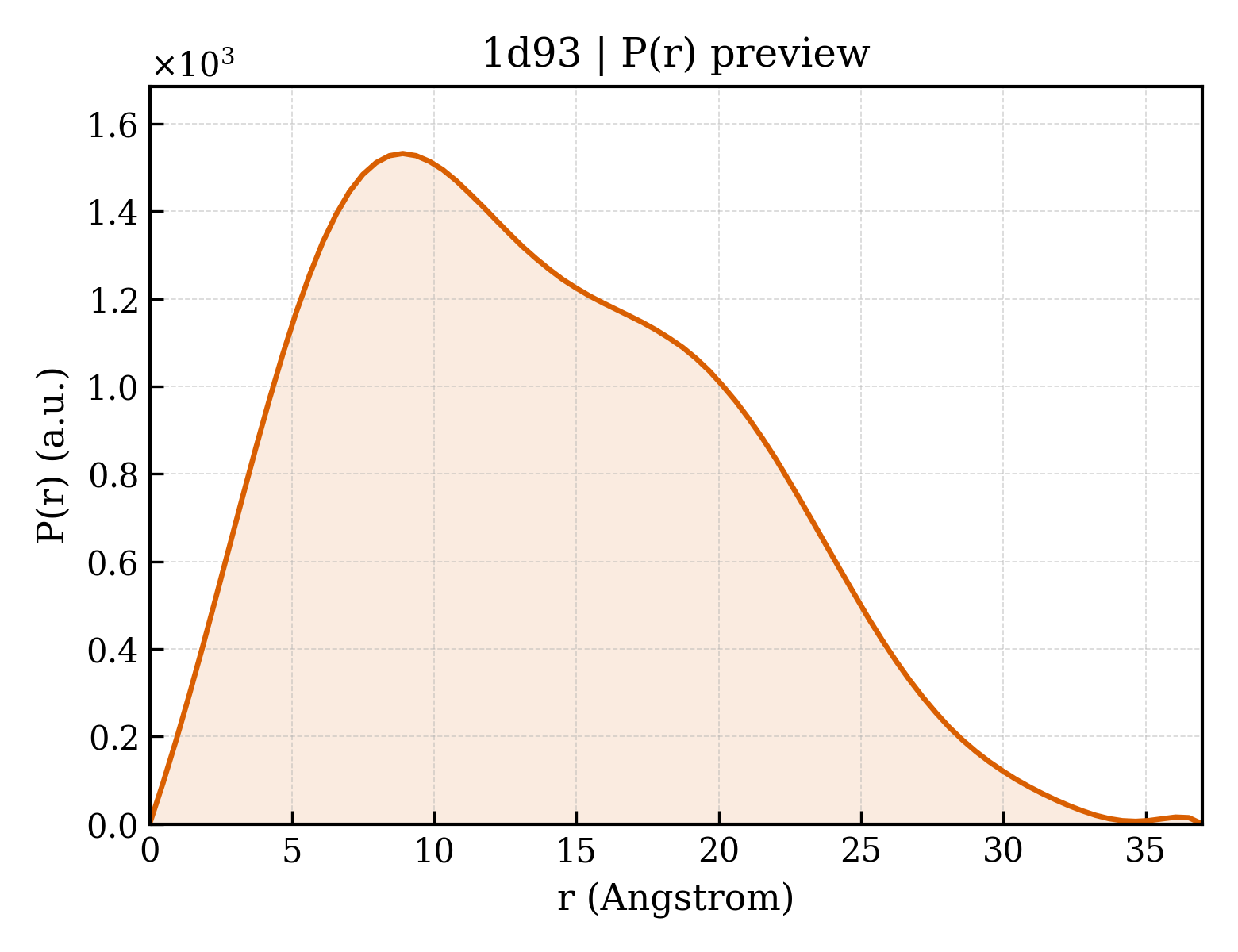

P(r) Distribution
1. Structure Basics
| entry_id | 1d93 |
| deposition_date | 1992-10-17 |
| title | STRUCTURAL VARIATION IN D(CTCTAGAG). IMPLICATIONS FOR PROTEIN-DNA INTERACTIONS |
| keywords | A-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.64 Å |
| rg_electron | 10.13 Å |
| i0 | 351045.00 |
| molecular_weight | 2416.0 kDa |
| excluded_volume | 2360 ų |
| envelope_volume | 3270 ų |
| shell_volume | 3364 ų |
| envelope_diameter | 34.4 Å |
| shell_rg | 13.65 Å |
| envelope_rg | 10.26 Å |
| shape_rg | 10.04 Å |
| total_rg | 11.09 Å |
| total_atoms | 161 |
| n_residues | 8 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.0 Å |
| rg_real | 10.73 Å |
| rg_real_error | 0.36 Å |
| i0_real | 3.5100e+05 |
| i0_real_error | 4.0520e+03 |
| rg_reciprocal | 10.73 Å |
| i0_reciprocal | 351000.0000 |
| total_estimate | 0.8337 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 8.9 Å |
| skewness | 0.368 |
| kurtosis | -0.586 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8830.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.818; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.423; Smooth: 0.956 |
