1d9h
Structural origins of the exonuclease resistance of a zwitterionic RNA

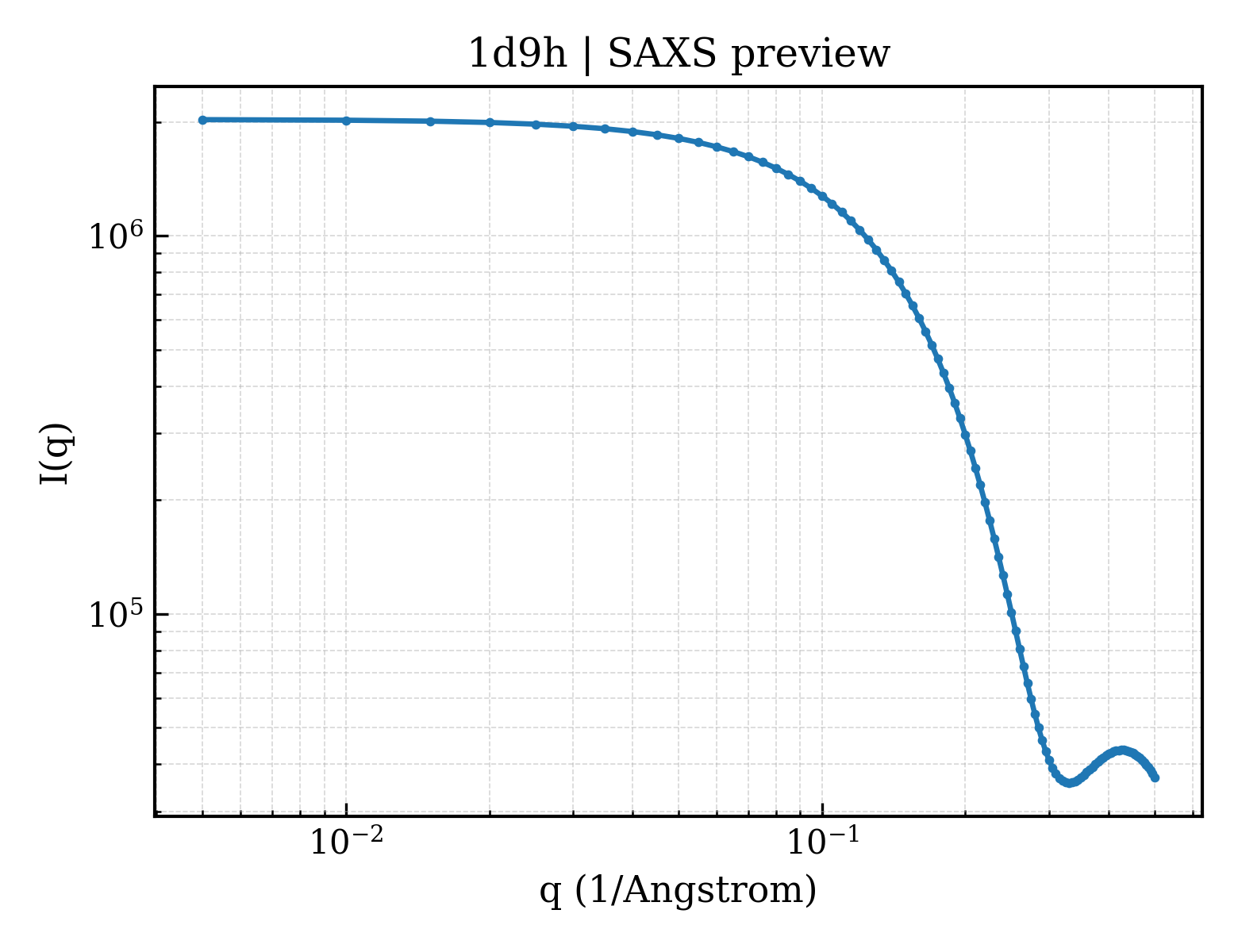

SAXS Profile

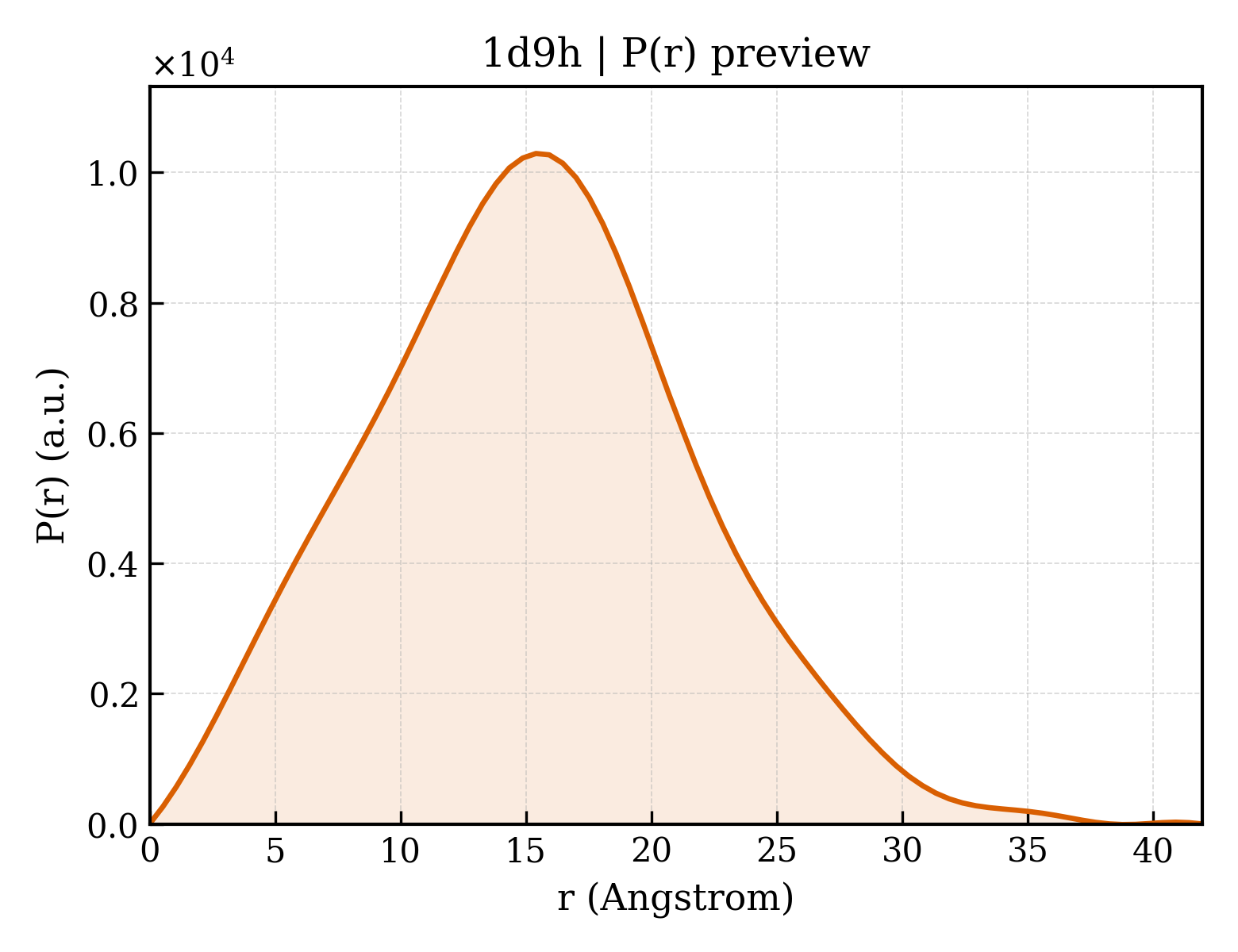

P(r) Distribution
1. Structure Basics
| entry_id | 1d9h |
| deposition_date | 1999-10-27 |
| title | Structural origins of the exonuclease resistance of a zwitterionic RNA |
| keywords | EXONUCLEASE RESISTANCE, A-DNA, DNA, RNA; DNA, RNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.79 Å |
| rg_electron | 11.08 Å |
| i0 | 2028980.00 |
| molecular_weight | 6190.0 kDa |
| excluded_volume | 6035 ų |
| envelope_volume | 7841 ų |
| shell_volume | 6644 ų |
| envelope_diameter | 39.1 Å |
| shell_rg | 15.53 Å |
| envelope_rg | 11.03 Å |
| shape_rg | 10.94 Å |
| total_rg | 12.07 Å |
| total_atoms | 412 |
| n_residues | 18 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.0 Å |
| rg_real | 11.74 Å |
| rg_real_error | 0.41 Å |
| i0_real | 2.0290e+06 |
| i0_real_error | 2.4410e+04 |
| rg_reciprocal | 11.75 Å |
| i0_reciprocal | 2029000.0000 |
| total_estimate | 0.8367 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.4 Å |
| skewness | 0.224 |
| kurtosis | -0.134 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 88660.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.634; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.991 |
