1da3
THE CRYSTAL STRUCTURE OF THE TRIGONAL DECAMER C-G-A-T-C-G-6MEA-T-C-G: A B-DNA HELIX WITH 10.6 BASE-PAIRS PER TURN

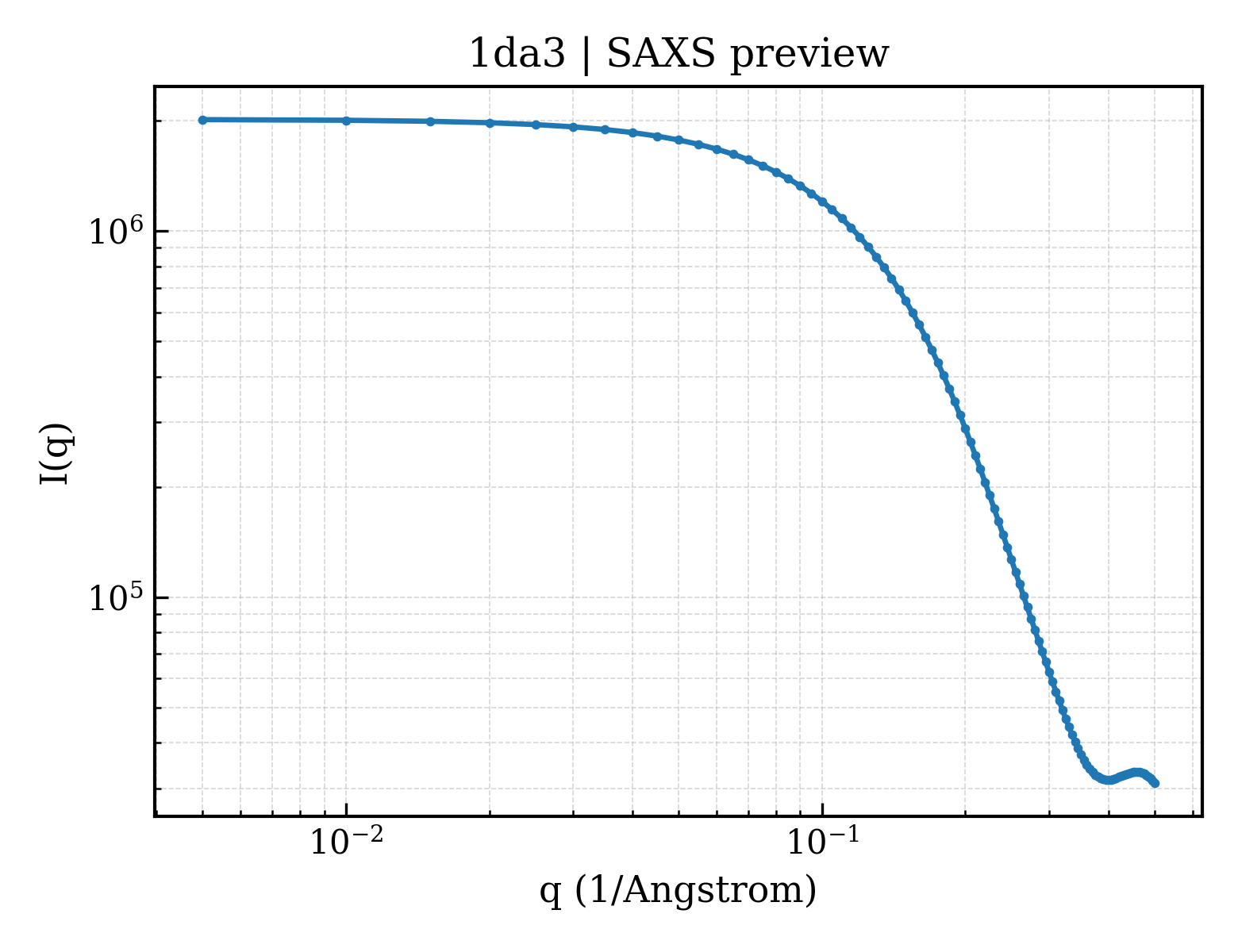

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1da3 |
| deposition_date | 1992-11-09 |
| title | THE CRYSTAL STRUCTURE OF THE TRIGONAL DECAMER C-G-A-T-C-G-6MEA-T-C-G: A B-DNA HELIX WITH 10.6 BASE-PAIRS PER TURN |
| keywords | B-DNA, DOUBLE HELIX, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.44 Å |
| rg_electron | 11.78 Å |
| i0 | 2016760.00 |
| molecular_weight | 6184.0 kDa |
| excluded_volume | 6014 ų |
| envelope_volume | 8023 ų |
| shell_volume | 6459 ų |
| envelope_diameter | 40.3 Å |
| shell_rg | 16.01 Å |
| envelope_rg | 11.94 Å |
| shape_rg | 11.65 Å |
| total_rg | 12.70 Å |
| total_atoms | 409 |
| n_residues | 18 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 40.8 Å |
| rg_real | 12.45 Å |
| rg_real_error | 0.33 Å |
| i0_real | 2.0170e+06 |
| i0_real_error | 2.3980e+04 |
| rg_reciprocal | 12.45 Å |
| i0_reciprocal | 2017000.0000 |
| total_estimate | 0.8120 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.4 Å |
| skewness | 0.329 |
| kurtosis | -0.334 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 95240.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.000 |
