1dcv
B-DNA DECAMER WITH CENTRAL TA DINUCLEOTIDE
SAXS Profile

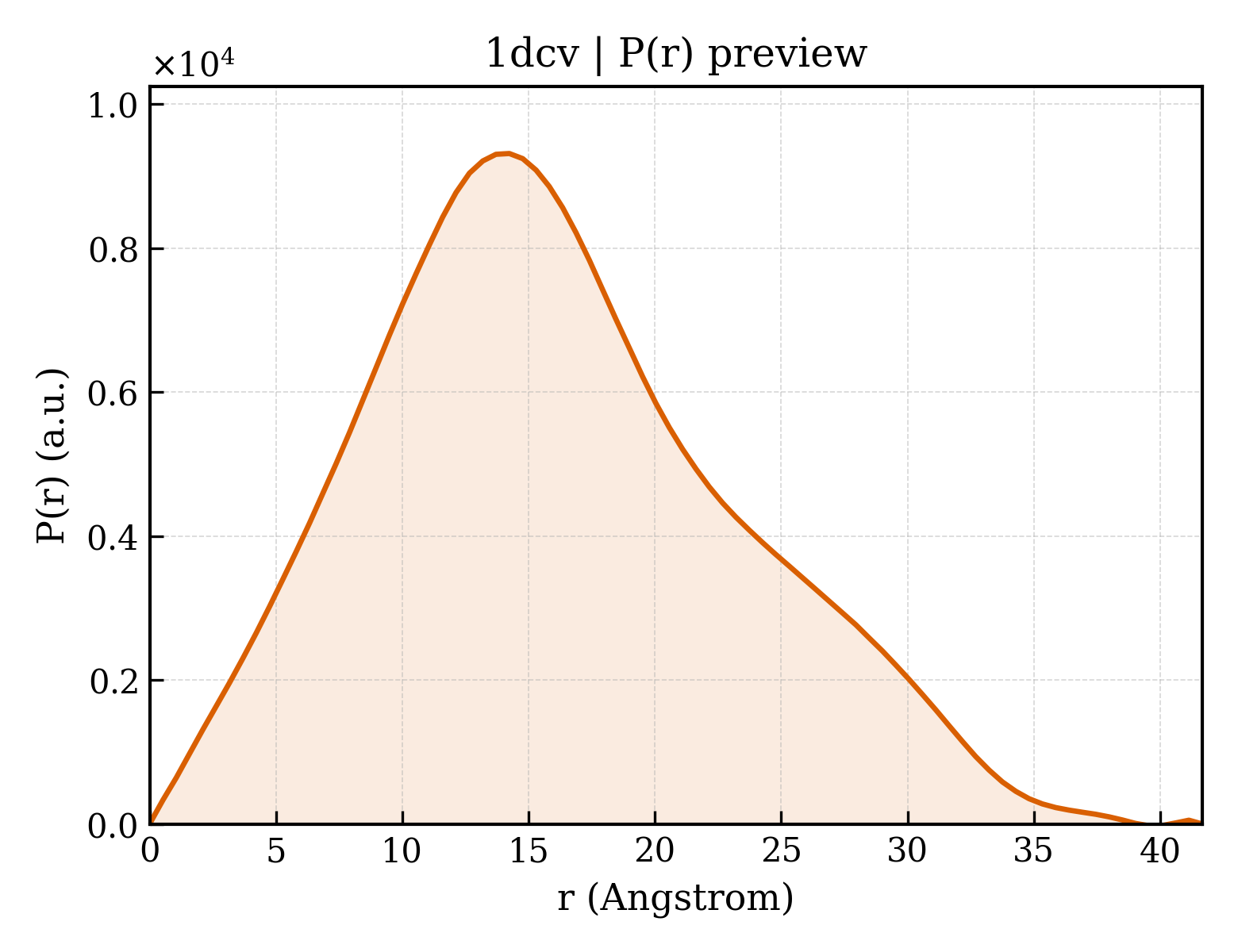

P(r) Distribution
1. Structure Basics
| entry_id | 1dcv |
| deposition_date | 1999-11-05 |
| title | B-DNA DECAMER WITH CENTRAL TA DINUCLEOTIDE |
| keywords | CENTRAL TA DINUCLEOTIDE, DEOXYRIBONUCLEIC ACID, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.38 Å |
| rg_electron | 11.79 Å |
| i0 | 1996770.00 |
| molecular_weight | 6074.0 kDa |
| excluded_volume | 5856 ų |
| envelope_volume | 7746 ų |
| shell_volume | 6350 ų |
| envelope_diameter | 37.9 Å |
| shell_rg | 15.80 Å |
| envelope_rg | 11.84 Å |
| shape_rg | 11.68 Å |
| total_rg | 12.62 Å |
| total_atoms | 404 |
| n_residues | 20 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.7 Å |
| rg_real | 12.40 Å |
| rg_real_error | 0.42 Å |
| i0_real | 1.9970e+06 |
| i0_real_error | 2.3650e+04 |
| rg_reciprocal | 12.40 Å |
| i0_reciprocal | 1997000.0000 |
| total_estimate | 0.7894 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.2 Å |
| skewness | 0.370 |
| kurtosis | -0.337 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 128200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.771; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.000 |
