1dcw
STRUCTURE OF A FOUR-WAY JUNCTION IN AN INVERTED REPEAT SEQUENCE.

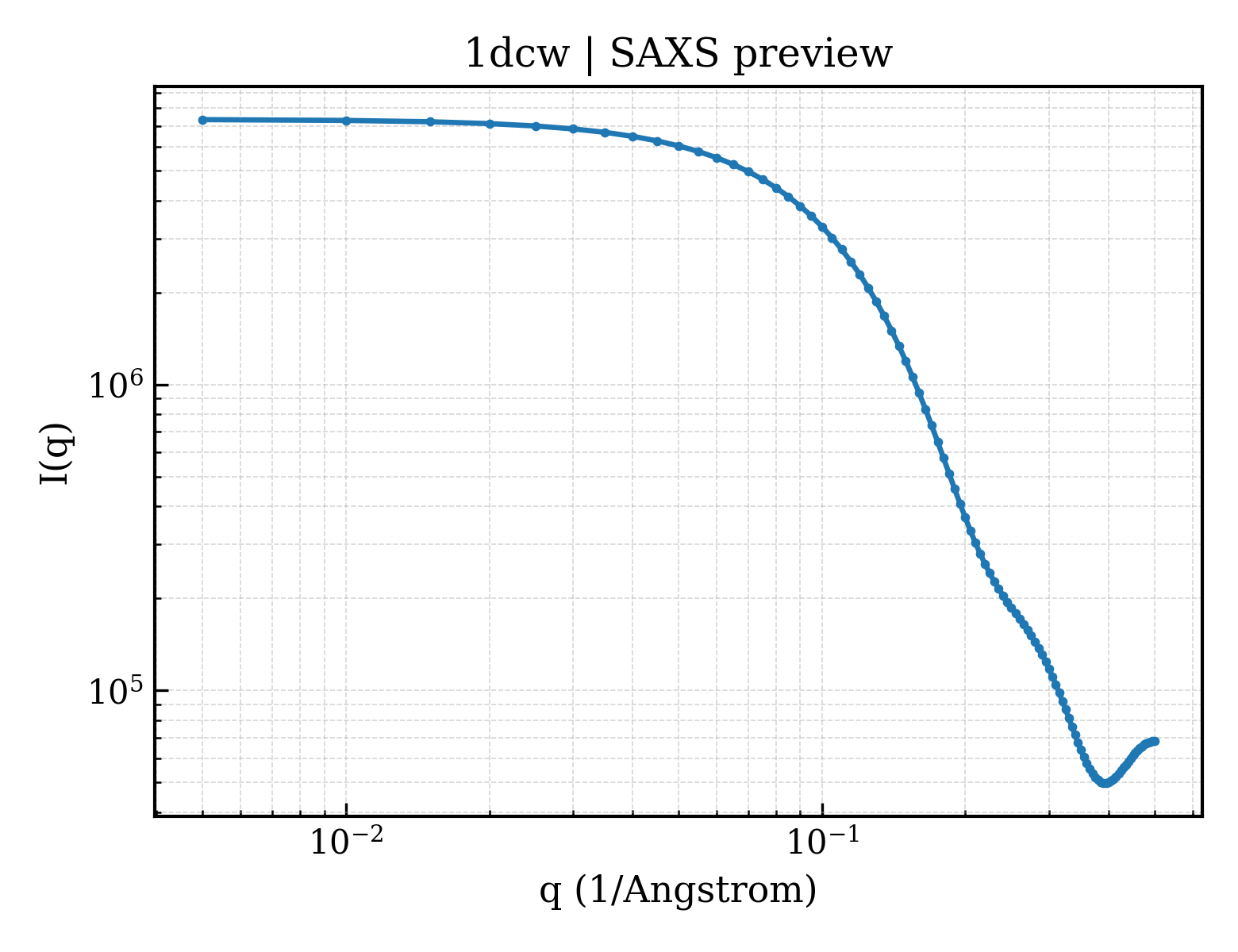

SAXS Profile

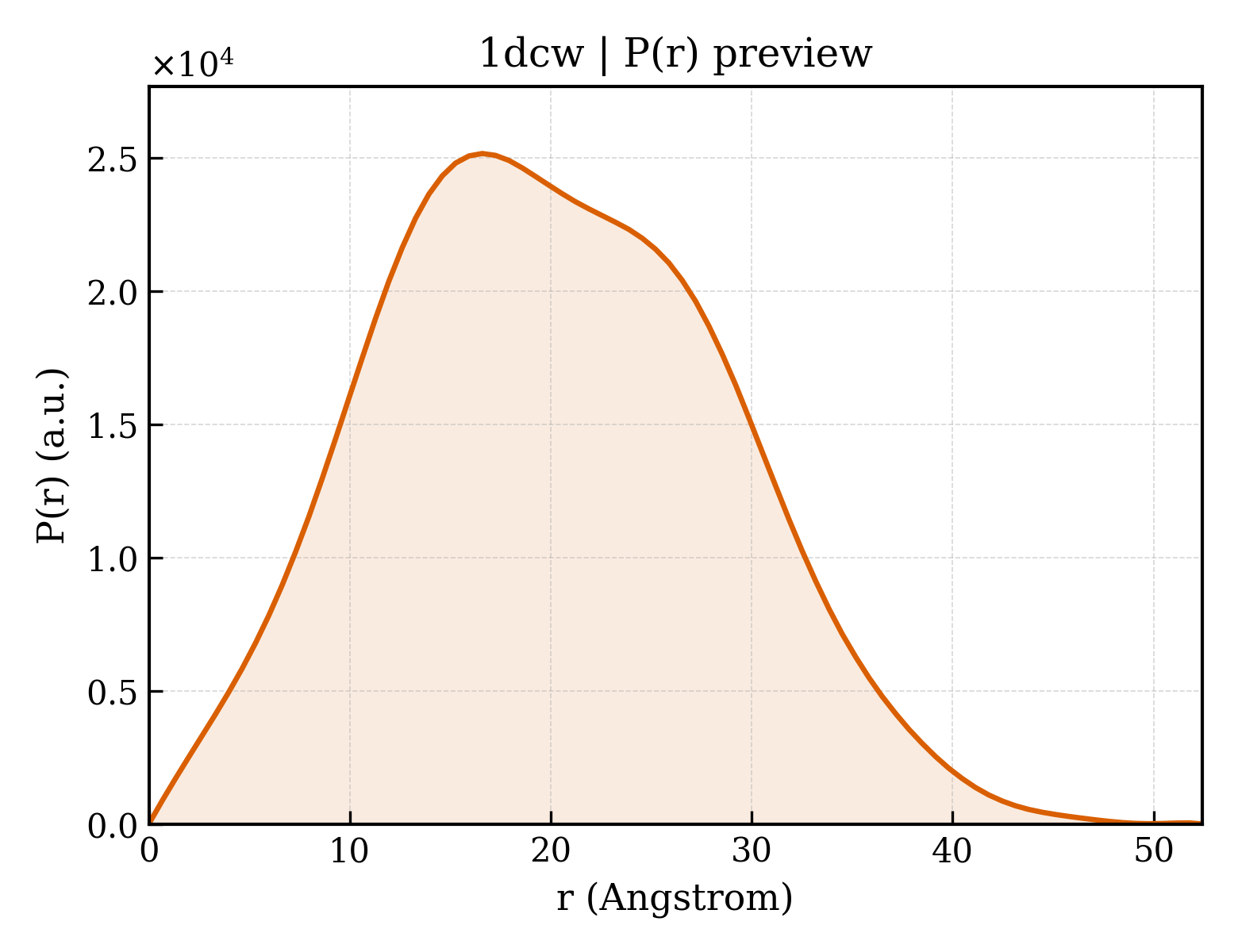

P(r) Distribution
1. Structure Basics
| entry_id | 1dcw |
| deposition_date | 1999-11-05 |
| title | STRUCTURE OF A FOUR-WAY JUNCTION IN AN INVERTED REPEAT SEQUENCE. |
| keywords | HOLLIDAY JUNCTION, INVERTED REPEAT, FOUR-WAY JUNCTION, DEOXYRIBONUCLEIC ACID, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.49 Å |
| rg_electron | 14.86 Å |
| i0 | 7357380.00 |
| molecular_weight | 12171.0 kDa |
| excluded_volume | 11762 ų |
| envelope_volume | 16560 ų |
| shell_volume | 10148 ų |
| envelope_diameter | 50.4 Å |
| shell_rg | 19.41 Å |
| envelope_rg | 14.74 Å |
| shape_rg | 14.79 Å |
| total_rg | 15.57 Å |
| total_atoms | 809 |
| n_residues | 40 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.4 Å |
| rg_real | 15.44 Å |
| rg_real_error | 0.38 Å |
| i0_real | 7.3570e+06 |
| i0_real_error | 7.7820e+04 |
| rg_reciprocal | 15.44 Å |
| i0_reciprocal | 7357000.0000 |
| total_estimate | 0.8798 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.192 |
| kurtosis | -0.444 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 533800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.996 |
