SAXSdb — 1dfo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SERINE HYDROXYMETHYLTRANSFERASE

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–417 Chain B； UniProt 1–417	Not recorded	PLG N-GLYCINE-[3-HYDROXY-2-METHYL-5-PHOSPHONOOXYMETHYL-PYRIDIN-4-YL-METHANE] × 2 FFO N-[4-({[(6S)-2-amino-5-formyl-4-oxo-3,4,5,6,7,8-hexahydropteridin-6-yl]methyl}amino)benzoyl]-L-glutamic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.2；293 K；2M POTASSIUM PHOSPHATE, pH 7.2, VAPOR DIFFUSION, temperature 293.0K	Resolution 2.40 Å R-free 0.196
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–417 Chain D； UniProt 1–417	Not recorded	PLG N-GLYCINE-[3-HYDROXY-2-METHYL-5-PHOSPHONOOXYMETHYL-PYRIDIN-4-YL-METHANE] × 2 FFO N-[4-({[(6S)-2-amino-5-formyl-4-oxo-3,4,5,6,7,8-hexahydropteridin-6-yl]methyl}amino)benzoyl]-L-glutamic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.2；293 K；2M POTASSIUM PHOSPHATE, pH 7.2, VAPOR DIFFUSION, temperature 293.0K	Resolution 2.40 Å R-free 0.196

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DFO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3G8M Serine Hydroxymethyltransferase Y55F Mutant Deposited 2009-02-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–417（417 aa）	Mutation：Y55F	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1M Hepes (N-(2-hydroxylethyl)piperazine-N -2 ethansulfonic acid) pH 7.5, 1.4M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.30 Å R-free 0.275

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GLYA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–417； UniProt 1–417 Author chain B； PDBConstruct 1–417； UniProt 1–417 Author chain C； PDBConstruct 1–417； UniProt 1–417 Author chain D； PDBConstruct 1–417； UniProt 1–417

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dfo
Deposition date deposition_date	1999-11-20
Structure title title	CRYSTAL STRUCTURE AT 2.4 ANGSTROM RESOLUTION OF E. COLI SERINE HYDROXYMETHYLTRANSFERASE IN COMPLEX WITH GLYCINE AND 5-FORMYL TETRAHYDROFOLATE
Keywords keywords	ALPHA PLP ASPARTATE, AMINO TRANSFERASE, (AAT)-LIKE FOLD, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.28 Å
Radius of gyration Rg (electron density) rg_electron	36.74 Å
Forward intensity I(0) i0	503583000.00
Molecular weight molecular_weight	181980.0 kDa
Excluded volume excluded_volume	227040 Å³
Envelope volume envelope_volume	267310 Å³
Hydration-shell volume shell_volume	58803 Å³
Envelope diameter envelope_diameter	132.7 Å
Shell Rg shell_rg	44.35 Å
Envelope Rg envelope_rg	36.54 Å
Shape Rg shape_rg	36.70 Å
Total Rg total_rg	37.27 Å
Total atoms total_atoms	12816
Residues n_residues	1666
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

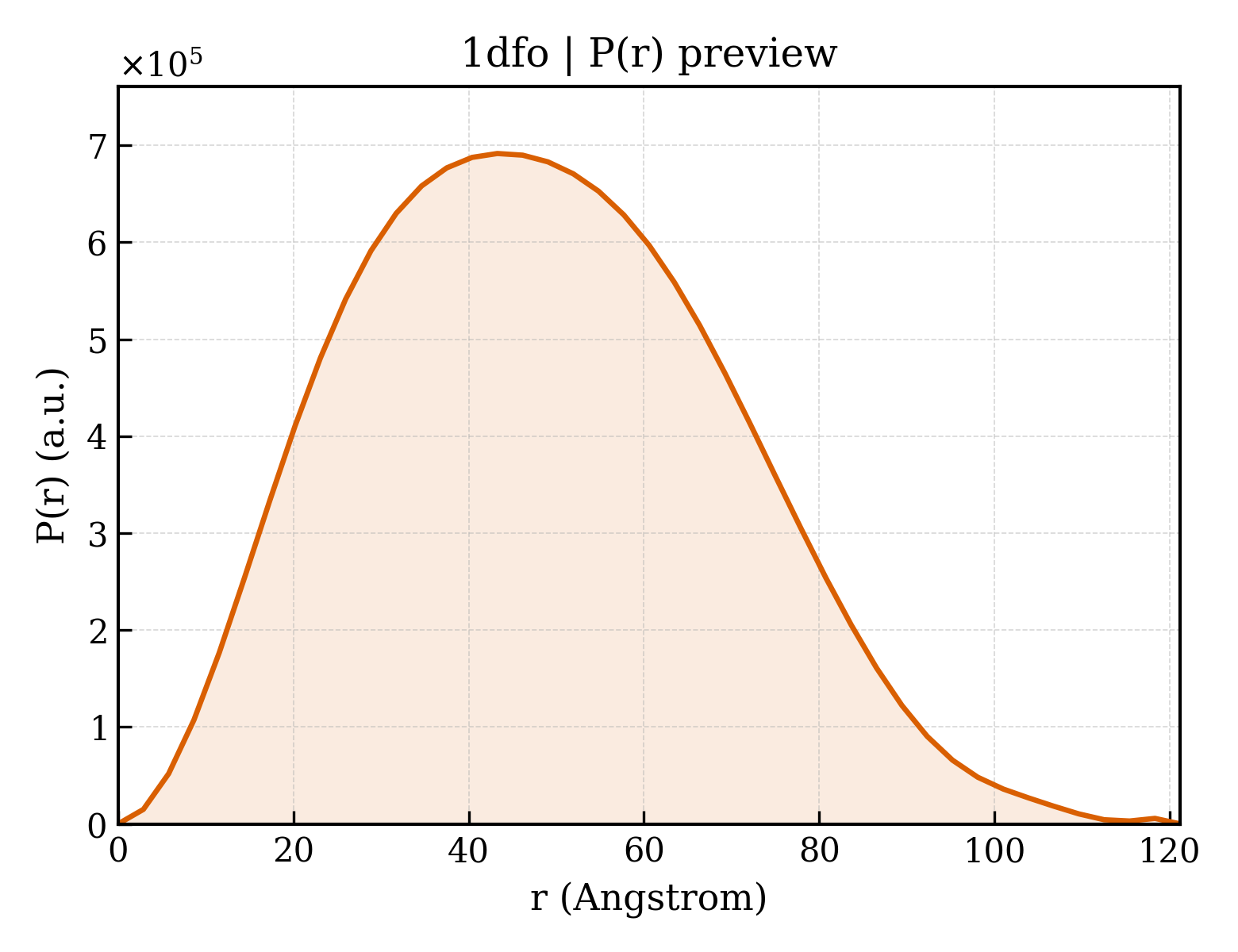

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.2 Å
Rg (real space) rg_real	37.20 Å
Rg uncertainty (real space) rg_real_error	0.84 Å
I(0) (real space) i0_real	5.0360e+08
I(0) uncertainty (real space) i0_real_error	9.1730e+06
Rg (reciprocal space) rg_reciprocal	37.25 Å
I(0) (reciprocal space) i0_reciprocal	503600000.0000
Solution quality estimate total_estimate	0.8937
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.3 Å
Skewness Skewness skewness	0.259
Kurtosis Kurtosis kurtosis	-0.456
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	346400000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.895

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SERINE HYDROXYMETHYLTRANSFERASE
Molecular weight formula_weight	45372.5 kDa
EC 编号 ec_number	2.1.2.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13204

MLKREMNIADYDAELWQAMEQEKVRQEEHIELIASENYTSPRVMQAQGSQLTNKYAEGYPGKRYYGGCEYVDIVEQLAIDRAKELFGADYANVQPHSGSQANFAVYTALLEPGDTVLGMNLAHGGHLTHGSPVNFSGKLYNIVPYGIDATGHIDYADLEKQAKEHKPKMIIGGFSAYSGVVDWAKMREIADSIGAYLFVDMAHVAGLVAAGVYPNPVPHAHVVTTTTHKTLAGPRGGLILAKGGSEELYKKLNSAVFPGGQGGPLMHVIAGKAVALKEAMEPEFKTYQQQVAKNAKAMVEVFLERGYKVVSGGTDNHLFLVDLVDKNLTGKEADAALGRANITVNKNSVPNDPKSPFVTSGIRVGTPAITRRGFKEAEAKELAGWMCDVLDSINDEAVIERIKGKVLDICARYPVYA

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	N-GLYCINE-[3-HYDROXY-2-METHYL-5-PHOSPHONOOXYMETHYL-PYRIDIN-4-YL-METHANE]
Molecular weight formula_weight	306.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	N-[4-({[(6S)-2-amino-5-formyl-4-oxo-3,4,5,6,7,8-hexahydropteridin-6-yl]methyl}amino)benzoyl]-L-glutamic acid
Molecular weight formula_weight	473.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	388

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1dfoa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.4 — GABA-aminotransferase-like

Domain ID domain_id	d1dfob_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.4 — GABA-aminotransferase-like

Domain ID domain_id	d1dfoc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.4 — GABA-aminotransferase-like

Domain ID domain_id	d1dfod_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.4 — GABA-aminotransferase-like

CATH v4.4 (8 domains)

Domain ID domain_id	1dfoA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1dfoA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1dfoB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1dfoB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1dfoC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1dfoC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1dfoD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1dfoD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	77.460 Å
Unit-cell length b length_b	172.240 Å
Unit-cell length c length_c	95.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.12 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1740
R_work r_work	0.1740
R_free r_free	0.1960
