1dgf

HUMAN ERYTHROCYTE CATALASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CATALASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ACETATE ION × 4 PROTOPORPHYRIN IX CONTAINING FE × 4 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CATA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–497； UniProt 5–501 Author chain B； PDBConstruct 1–497； UniProt 5–501 Author chain C； PDBConstruct 1–497； UniProt 5–501 Author chain D； PDBConstruct 1–497； UniProt 5–501

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dgf
Deposition date deposition_date	1999-11-24
Structure title title	HUMAN ERYTHROCYTE CATALASE
Keywords keywords	CATALASE, HEME, NADPH, HYDROGEN PEROXIDE, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dgf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

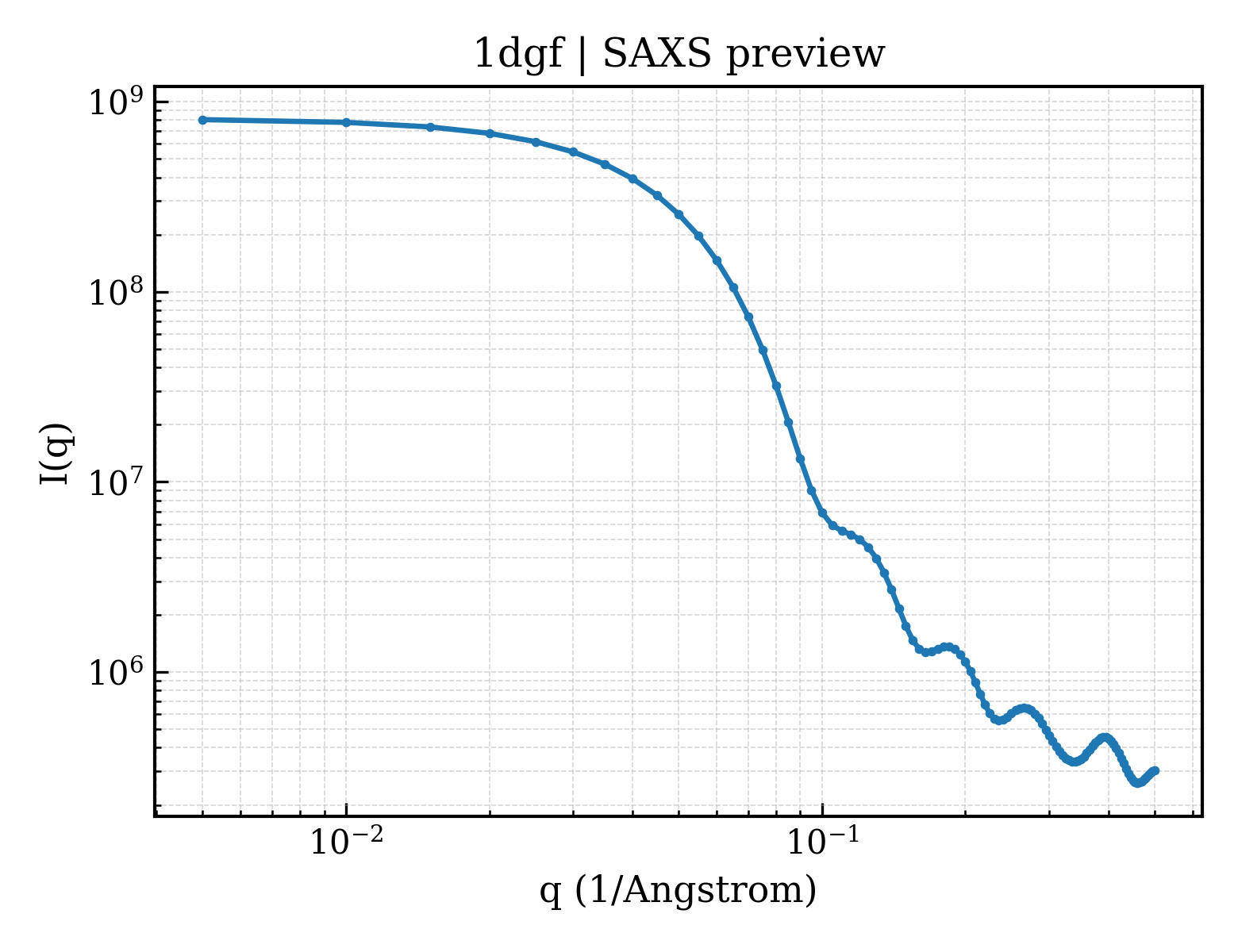

1dgf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1dgf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.48 Å
Rg (electron density)	35.76 Å
Total Rg	36.34 Å
Atom count	16292
Residues	1988
Excluded volume	286330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dgf__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CATALASE
Molecular weight formula_weight	56626.4 kDa
EC 编号 ec_number	1.11.1.6
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	18675

RDPASDQMQHWKEQRAAQKADVLTTGAGNPVGDKLNVITVGPRGPLLVQDVVFTDEMAHFDRERIPERVVHAKGAGAFGYFEVTHDITKYSKAKVFEHIGKKTPIAVRFSTVAGESGSADTVRDPRGFAVKFYTEDGNWDLVGNNTPIFFIRDPILFPSFIHSQKRNPQTHLKDPDMVWDFWSLRPESLHQVSFLFSDRGIPDGHRHMNGYGSHTFKLVNANGEAVYCKFHYKTDQGIKNLSVEDAARLSQEDPDYGIRDLFNAIATGKYPSWTFYIQVMTFNQAETFPFNPFDLTKVWPHKDYPLIPVGKLVLNRNPVNYFAEVEQIAFDPSNMPPGIEASPDKMLQGRLFAYPDTHRHRLGPNYLHIPVNCPYRARVANYQRDGPMCMQDNQGGAPNYYPNSFGAPEQQPSALEHSIQYSGEVRRFNTANDDNVTQVRAFYVNVLNEEQRKRLCENIAGHLKDAQIFIQKKAVKNFTEVHPDYGSHIQALLDKYN

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2299

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1dgfa_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

Domain ID domain_id	d1dgfb_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

Domain ID domain_id	d1dgfc_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

Domain ID domain_id	d1dgfd_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.5 — Heme-dependent catalase-like
Superfamily Superfamily superfamily	e.5.1 — Heme-dependent catalase-like
Family Family family	e.5.1.1 — Heme-dependent catalases

CATH v4.4 (12 domains)

Domain ID domain_id	1dgfA01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	91 — Cytochrome C Oxidase; Chain J
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1dgfA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1dgfA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1370 — Hemocyanin, N-terminal domain
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	1dgfB01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	91 — Cytochrome C Oxidase; Chain J
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1dgfB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1dgfB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1370 — Hemocyanin, N-terminal domain
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	1dgfC01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	91 — Cytochrome C Oxidase; Chain J
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1dgfC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1dgfC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1370 — Hemocyanin, N-terminal domain
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	1dgfD01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	91 — Cytochrome C Oxidase; Chain J
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1dgfD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	180 — Catalase HpII, Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Catalase core domain

Domain ID domain_id	1dgfD03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1370 — Hemocyanin, N-terminal domain
Homologous superfamily homologous superfamily	60 —

▶

Unit-cell length a length_a	83.717 Å
Unit-cell length b length_b	142.505 Å
Unit-cell length c length_c	232.066 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1740
R_work r_work	0.1720
R_free r_free	0.1920
