1dgo
SOLUTION STRUCTURE OF A URACIL CONTAINING HAIRPIN DNA

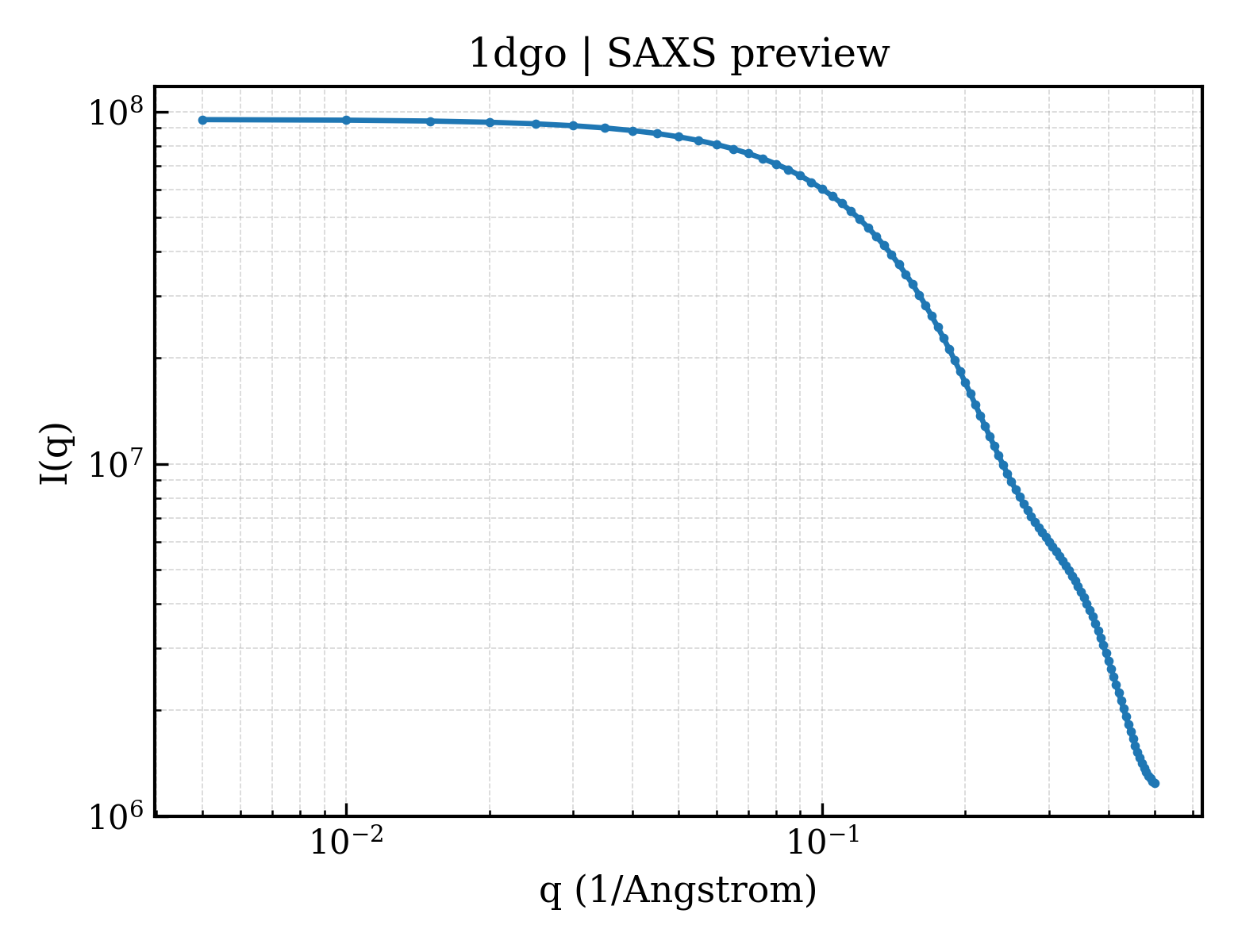

SAXS Profile

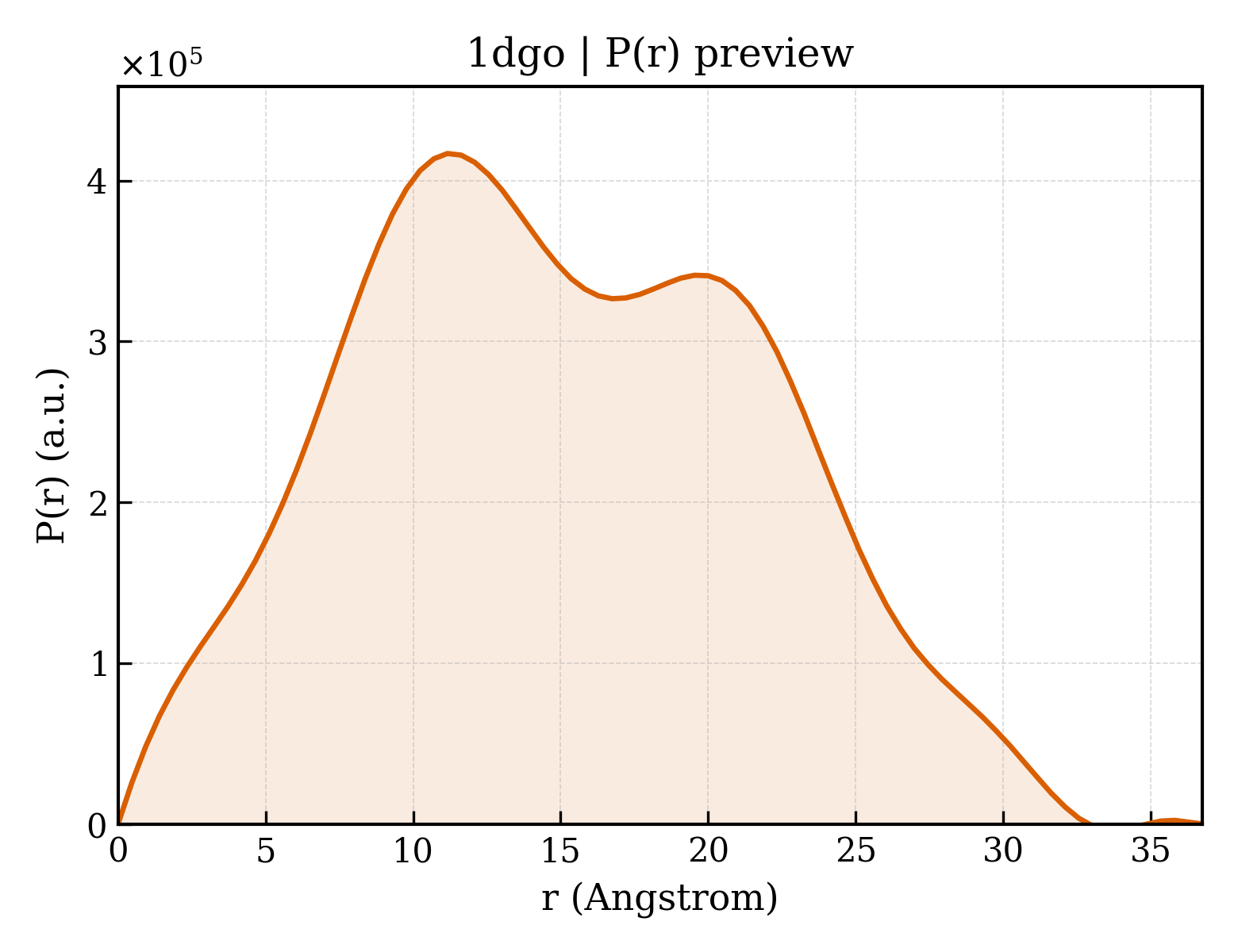

P(r) Distribution
1. Structure Basics
| entry_id | 1dgo |
| deposition_date | 1999-11-24 |
| title | SOLUTION STRUCTURE OF A URACIL CONTAINING HAIRPIN DNA |
| keywords | Uracil, Hairpin DNA, Hairpin loop, Double helix, UDG-Uracil interaction, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.67 Å |
| rg_electron | 11.49 Å |
| i0 | 94991700.00 |
| molecular_weight | 49344.0 kDa |
| excluded_volume | 48249 ų |
| envelope_volume | 8043 ų |
| shell_volume | 6412 ų |
| envelope_diameter | 37.4 Å |
| shell_rg | 16.16 Å |
| envelope_rg | 11.78 Å |
| shape_rg | 11.31 Å |
| total_rg | 11.92 Å |
| total_atoms | 5103 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.8 Å |
| rg_real | 11.66 Å |
| rg_real_error | 0.29 Å |
| i0_real | 9.4990e+07 |
| i0_real_error | 9.5770e+05 |
| rg_reciprocal | 11.66 Å |
| i0_reciprocal | 94990000.0000 |
| total_estimate | 0.8792 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 11.2 Å |
| skewness | 0.140 |
| kurtosis | -0.719 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 45700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.884 |
