1dip

THE SOLUTION STRUCTURE OF PORCINE DELTA-SLEEP-INDUCING PEPTIDE IMMUNOREACTIVE PEPTIDE, NMR, 10 STRUCTURES

Method: SOLUTION NMR D_max: 86.8 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DELTA-SLEEP-INDUCING PEPTIDE IMMUNOREACTIVE PEPTIDE

Sus scrofa

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–77 Chain B； UniProt 1–77	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 3.5；298 K	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	T22D3_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–78； UniProt 1–77 Author chain B； PDBConstruct 2–78； UniProt 1–77

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

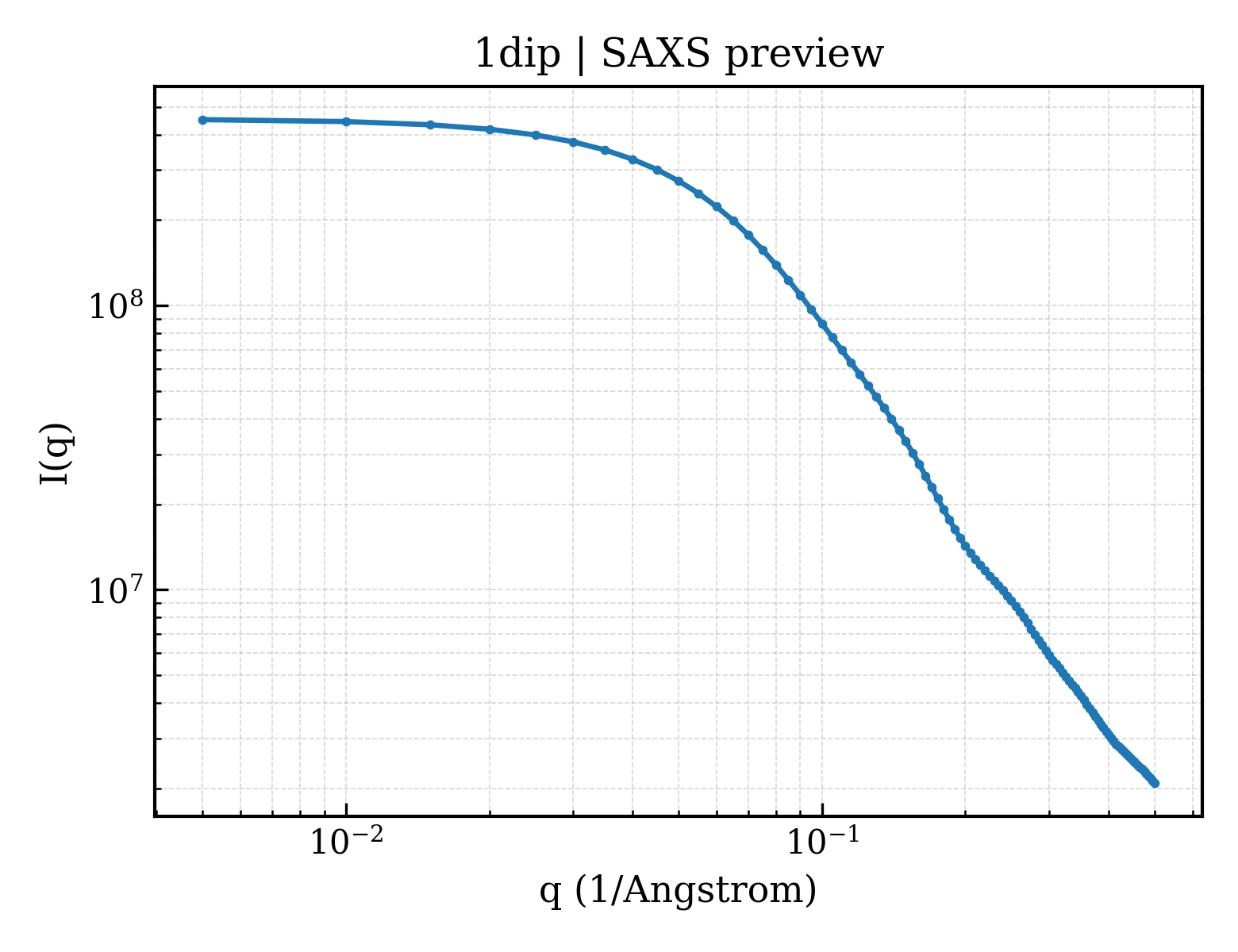

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dip
Deposition date deposition_date	1997-04-09
Structure title title	THE SOLUTION STRUCTURE OF PORCINE DELTA-SLEEP-INDUCING PEPTIDE IMMUNOREACTIVE PEPTIDE, NMR, 10 STRUCTURES
Keywords keywords	DELTA-SLEEP-INDUCING PEPTIDE IMMUNOREACTIVE PEPTIDE, LEUCINE ZIPPER, PIG, ACETYLATION; ACETYLATION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.72 Å
Radius of gyration Rg (electron density) rg_electron	24.67 Å
Forward intensity I(0) i0	453520000.00
Molecular weight molecular_weight	174980.0 kDa
Excluded volume excluded_volume	218320 Å³
Envelope volume envelope_volume	88666 Å³
Hydration-shell volume shell_volume	26512 Å³
Envelope diameter envelope_diameter	98.3 Å
Shell Rg shell_rg	34.91 Å
Envelope Rg envelope_rg	29.09 Å
Shape Rg shape_rg	24.65 Å
Total Rg total_rg	25.15 Å
Total atoms total_atoms	24580
Residues n_residues	1540
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.8 Å
Rg (real space) rg_real	24.97 Å
Rg uncertainty (real space) rg_real_error	0.76 Å
I(0) (real space) i0_real	4.5350e+08
I(0) uncertainty (real space) i0_real_error	6.3850e+06
Rg (reciprocal space) rg_reciprocal	24.91 Å
I(0) (reciprocal space) i0_reciprocal	453500000.0000
Solution quality estimate total_estimate	0.6621
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.8 Å
Skewness Skewness skewness	0.422
Kurtosis Kurtosis kurtosis	-0.489
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	458400.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.839; Stabil: 1.000; Sysdev: 0.184; Positv: 1.000; Valcen: 0.568; Smooth: 0.967

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1dipa_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.12 — Delta-sleep-inducing peptide immunoreactive peptide
Family Family family	h.1.12.1 — Delta-sleep-inducing peptide immunoreactive peptide

Domain ID domain_id	d1dipb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.12 — Delta-sleep-inducing peptide immunoreactive peptide
Family Family family	h.1.12.1 — Delta-sleep-inducing peptide immunoreactive peptide

CATH v4.4 (2 domains)

Domain ID domain_id	1dipA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	490 — Single helix bin

Domain ID domain_id	1dipB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	490 — Single helix bin

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	DELTA-SLEEP-INDUCING PEPTIDE IMMUNOREACTIVE PEPTIDE
Molecular weight formula_weight	8748.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	24580

来源生物 organism	Sus scrofa
通用名 common_name	pig
NCBI Class编号 ncbi_taxonomy_id	9823

THE SOLUTION STRUCTURE OF PORCINE DELTA-SLEEP-INDUCING PEPTIDE IMMUNOREACTIVE PEPTIDE, NMR, 10 STRUCTURES
