1dj6
COMPLEX OF A Z-DNA HEXAMER, D(CG)3, WITH SYNTHETIC POLYAMINE AT ROOM TEMPERATURE

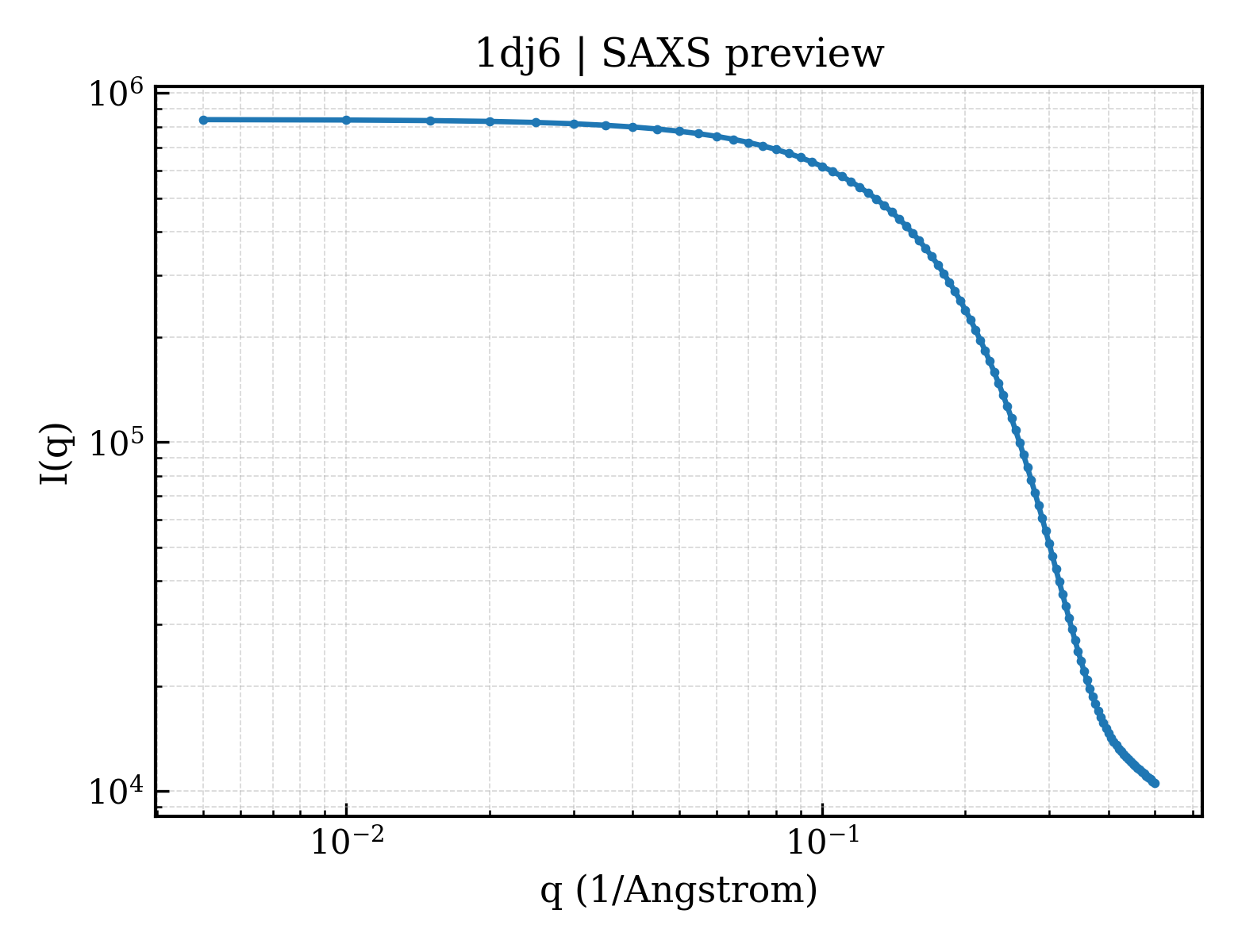

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dj6 |
| deposition_date | 1999-12-01 |
| title | COMPLEX OF A Z-DNA HEXAMER, D(CG)3, WITH SYNTHETIC POLYAMINE AT ROOM TEMPERATURE |
| keywords | Z-DNA:POLYAMINE COMPLEX, X-RAY CRYSTAL STRUCTURE, POLYAMINE BINDING IN MINOR GROOVE OF Z-DNA, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.63 Å |
| rg_electron | 8.77 Å |
| i0 | 840086.00 |
| molecular_weight | 3911.0 kDa |
| excluded_volume | 3889 ų |
| envelope_volume | 4746 ų |
| shell_volume | 5090 ų |
| envelope_diameter | 29.6 Å |
| shell_rg | 13.38 Å |
| envelope_rg | 9.19 Å |
| shape_rg | 8.70 Å |
| total_rg | 9.88 Å |
| total_atoms | 261 |
| n_residues | 12 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.8 Å |
| rg_real | 9.60 Å |
| rg_real_error | 0.24 Å |
| i0_real | 8.4010e+05 |
| i0_real_error | 7.6720e+03 |
| rg_reciprocal | 9.61 Å |
| i0_reciprocal | 840100.0000 |
| total_estimate | 0.8890 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.7 Å |
| skewness | 0.252 |
| kurtosis | -0.277 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 63540.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.972 |
