1dm0

SHIGA TOXIN

Method: X-RAY DIFFRACTION D_max: 142.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SHIGA TOXIN A SUBUNIT

Shigella dysenteriae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 23–309	Not recorded	SHIGA TOXIN B SUBUNIT × 5 （Q7BQ98）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；sodium citrate, ethanol, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å
2	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain L； UniProt 23–309	Not recorded	SHIGA TOXIN B SUBUNIT × 5 （Q7BQ98）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；sodium citrate, ethanol, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å
3	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain A； UniProt 23–309 Chain L； UniProt 23–309	Not recorded	SHIGA TOXIN B SUBUNIT × 10 （Q7BQ98）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；sodium citrate, ethanol, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DM0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1R4Q Shiga toxin Deposited 2003-10-07	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–315（293 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；SODIUM CITRATE, ETHANOL, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.257
1R4Q Shiga toxin Deposited 2003-10-07	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain L 23–315（293 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；SODIUM CITRATE, ETHANOL, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.257
1R4Q Shiga toxin Deposited 2003-10-07	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 23–315（293 aa） Chain L 23–315（293 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；SODIUM CITRATE, ETHANOL, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.257

1 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q7BQ99_SHIDY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–287； UniProt 23–309 Author chain L； PDBConstruct 1–287； UniProt 23–309

SHIGA TOXIN B SUBUNIT

Shigella dysenteriae

UniProt Q7BQ98

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain B； UniProt 21–89 Chain C； UniProt 21–89 Chain D； UniProt 21–89 Chain E； UniProt 21–89 Chain F； UniProt 21–89	Not recorded	SHIGA TOXIN A SUBUNIT × 1 （Q7BQ99）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；sodium citrate, ethanol, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å
2	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain G； UniProt 21–89 Chain H； UniProt 21–89 Chain I； UniProt 21–89 Chain J； UniProt 21–89 Chain K； UniProt 21–89	Not recorded	SHIGA TOXIN A SUBUNIT × 1 （Q7BQ99）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；sodium citrate, ethanol, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å
3	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain B； UniProt 21–89 Chain C； UniProt 21–89 Chain D； UniProt 21–89 Chain E； UniProt 21–89 Chain F； UniProt 21–89 Chain G； UniProt 21–89 Chain H； UniProt 21–89 Chain I； UniProt 21–89 Chain J； UniProt 21–89 Chain K； UniProt 21–89	Not recorded	SHIGA TOXIN A SUBUNIT × 2 （Q7BQ99）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；sodium citrate, ethanol, pH 5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1DM0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1R4Q Shiga toxin Deposited 2003-10-07	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 21–89（69 aa） Chain C 21–89（69 aa） Chain D 21–89（69 aa） Chain E 21–89（69 aa） Chain F 21–89（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；SODIUM CITRATE, ETHANOL, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.257
1R4Q Shiga toxin Deposited 2003-10-07	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 21–89（69 aa） Chain H 21–89（69 aa） Chain I 21–89（69 aa） Chain J 21–89（69 aa） Chain K 21–89（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；SODIUM CITRATE, ETHANOL, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.257
1R4Q Shiga toxin Deposited 2003-10-07	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 21–89（69 aa） Chain C 21–89（69 aa） Chain D 21–89（69 aa） Chain E 21–89（69 aa） Chain F 21–89（69 aa） Chain G 21–89（69 aa） Chain H 21–89（69 aa） Chain I 21–89（69 aa） Chain J 21–89（69 aa） Chain K 21–89（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；SODIUM CITRATE, ETHANOL, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.50 Å R-free 0.257

1 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q7BQ98_SHIDY
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–69； UniProt 21–89 Author chain C； PDBConstruct 1–69； UniProt 21–89 Author chain D； PDBConstruct 1–69； UniProt 21–89 Author chain E； PDBConstruct 1–69； UniProt 21–89 Author chain F； PDBConstruct 1–69； UniProt 21–89 Author chain G； PDBConstruct 1–69； UniProt 21–89 Author chain H； PDBConstruct 1–69； UniProt 21–89 Author chain I； PDBConstruct 1–69； UniProt 21–89 Author chain J； PDBConstruct 1–69； UniProt 21–89 Author chain K； PDBConstruct 1–69； UniProt 21–89

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

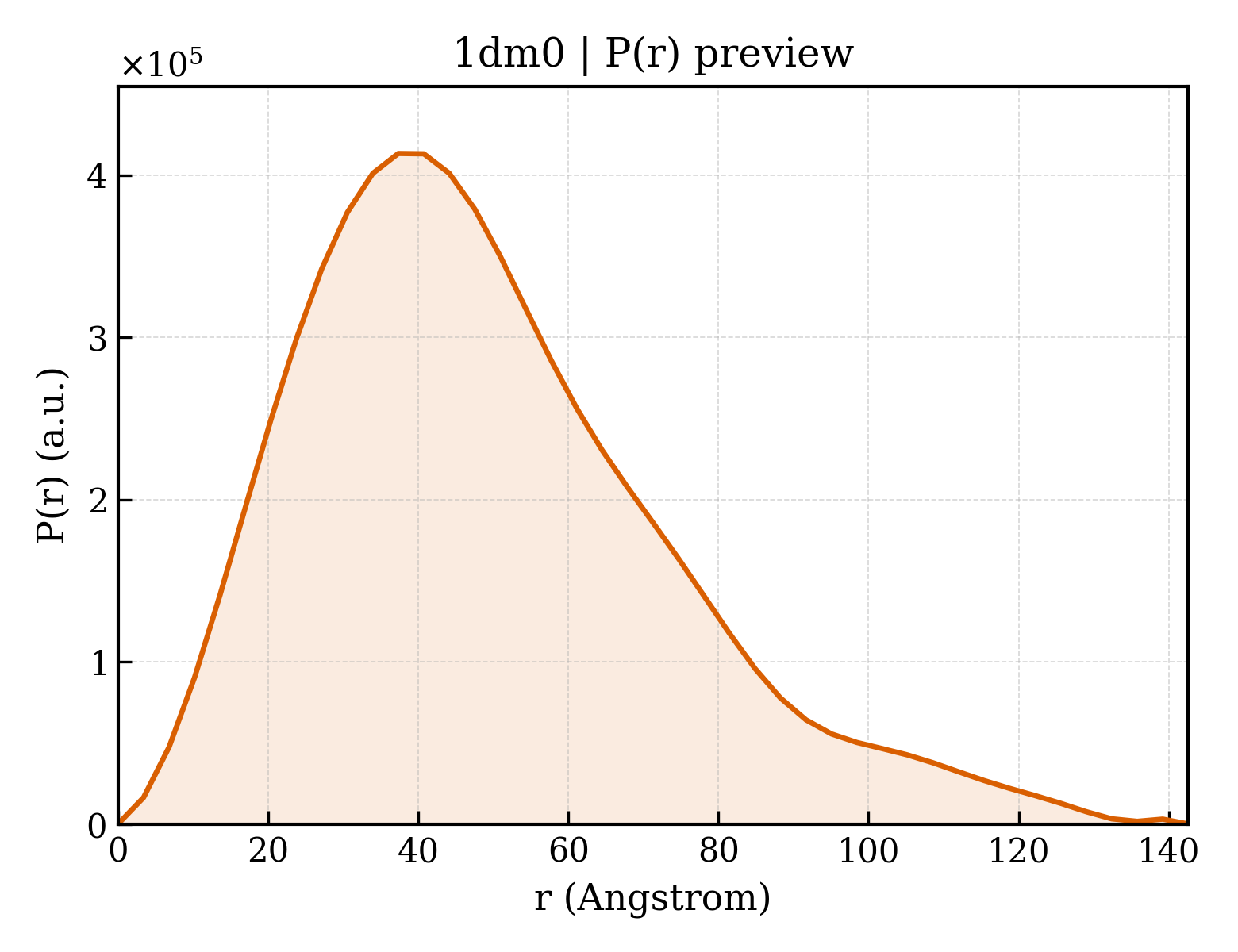

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dm0
Deposition date deposition_date	1999-12-13
Structure title title	SHIGA TOXIN
Keywords keywords	AB5 STRUCTURE, POLYPEPTIDE A, BLOCKING, ACTIVE SITE, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.89 Å
Radius of gyration Rg (electron density) rg_electron	38.15 Å
Forward intensity I(0) i0	282299000.00
Molecular weight molecular_weight	134860.0 kDa
Excluded volume excluded_volume	168170 Å³
Envelope volume envelope_volume	208560 Å³
Hydration-shell volume shell_volume	49446 Å³
Envelope diameter envelope_diameter	153.6 Å
Shell Rg shell_rg	40.25 Å
Envelope Rg envelope_rg	38.32 Å
Shape Rg shape_rg	38.14 Å
Total Rg total_rg	38.30 Å
Total atoms total_atoms	9476
Residues n_residues	1216
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	142.6 Å
Rg (real space) rg_real	38.40 Å
Rg uncertainty (real space) rg_real_error	1.56 Å
I(0) (real space) i0_real	2.8230e+08
I(0) uncertainty (real space) i0_real_error	4.7980e+06
Rg (reciprocal space) rg_reciprocal	38.08 Å
I(0) (reciprocal space) i0_reciprocal	282200000.0000
Solution quality estimate total_estimate	0.7859
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.3 Å
Skewness Skewness skewness	0.763
Kurtosis Kurtosis kurtosis	0.425
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	48570000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.508; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.860; Smooth: 0.830

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SHIGA TOXIN A SUBUNIT
Molecular weight formula_weight	31561.6 kDa
EC 编号 ec_number	3.2.2.22
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,L
Atom count atom_count	9538

KEFTLDFSTAKTYVDSLNVIRSAIGTPLQTISSGGTSLLMIDSGTGDNLFAVDVRGIDPEEGRFNNLRLIVERNNLYVTGFVNRTNNVFYRFADFSHVTFPGTTAVTLSGDSSYTTLQRVAGISRTGMQINRHSLTTSYLDLMSHSGTSLTQSVARAMLRFVTVTAEALRFRQIQRGFRTTLDDLSGRSYVMTAEDVDLTLNWGRLSSVLPDYHGQDSVRVGRISFGSINAILGSVALILNCHHHASRVARMASDEFPSMCPADGRVRGITHNKILWDSSTLGAILM

来源 Source

来源生物 organism	Shigella dysenteriae
NCBI Class编号 ncbi_taxonomy_id	622
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	SHIGA TOXIN B SUBUNIT
Molecular weight formula_weight	7698.6 kDa
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D,E,F,G,H,I,J,K

TPDCVTGKVEYTKYNDDDTFTVKVGDKELFTNRWNLQSLLLSAQITGMTVTIKTNACHNGGGFSEVIFR

来源 Source

来源生物 organism	Shigella dysenteriae
NCBI Class编号 ncbi_taxonomy_id	622
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	62

▼

7. Fold Classification (SCOP + CATH) 26 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1dm0a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.165 — Ribosome inactivating proteins (RIP)
Superfamily Superfamily superfamily	d.165.1 — Ribosome inactivating proteins (RIP)
Family Family family	d.165.1.2 — Shiga toxin, A-chain

Domain ID domain_id	d1dm0b_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0c_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0d_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0e_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0f_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0g_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0h_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0i_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0j_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0k_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1dm0l_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.165 — Ribosome inactivating proteins (RIP)
Superfamily Superfamily superfamily	d.165.1 — Ribosome inactivating proteins (RIP)
Family Family family	d.165.1.2 — Shiga toxin, A-chain

CATH v4.4 (14 domains)

Domain ID domain_id	1dm0A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	420 — Ricin (A subunit); domain 1
Homologous superfamily homologous superfamily	10 — Ricin (A subunit), domain 1

Domain ID domain_id	1dm0A02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	470 — Ricin (A Subunit), domain 2
Homologous superfamily homologous superfamily	10 — Ricin (A Subunit), domain 2

Domain ID domain_id	1dm0B00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0C00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0D00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0E00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0F00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0G00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0H00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0I00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0J00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0K00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1dm0L01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	420 — Ricin (A subunit); domain 1
Homologous superfamily homologous superfamily	10 — Ricin (A subunit), domain 1

Domain ID domain_id	1dm0L02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	470 — Ricin (A Subunit), domain 2
Homologous superfamily homologous superfamily	10 — Ricin (A Subunit), domain 2

▶

8. Citations (3)

▶

Unit-cell length a length_a	133.050 Å
Unit-cell length b length_b	147.460 Å
Unit-cell length c length_c	83.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	40

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2060
R_work r_work	0.2060
R_free r_free	—

fit	/app/data/saxs_computation/dm/1dm0/1dm0.fit
pddf	/app/data/pr_computation/dm/1dm0/1dm0.pr.out
profile	/app/data/saxs_computation/dm/1dm0/1dm0.dat

SHIGA TOXIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

SHIGA TOXIN A SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

SHIGA TOXIN B SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 26 domains

SCOP 2.08 (12 domains)

CATH v4.4 (14 domains)

8. Citations (3)

9. Files and Curves (10)

Files (7)

Curves (3)
